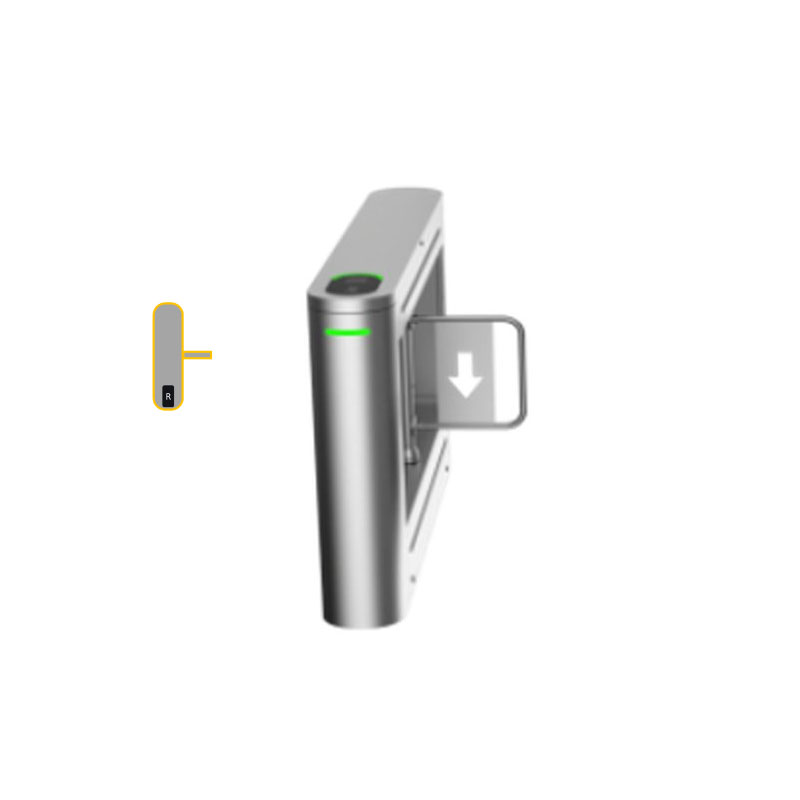

Dahua Access Control Barrier. Right motor, right barrier, 1 reader. DAHUA-2280

ASGB510J-L
  • Specifications

  • DC motor on the right side

  • Barrier on the right side
  • 1 reader
  • Detection using 10 pairs of infrared detectors
  • Functions: anti-collision, memorization, anti-drag, second unlock, climbing alarm, anti-pinch, extra step time alarm, intrusion alarm
  • 1 second unlock / lock speed (adjustable)
  • 5 second auto lock duration
  • Maximum waterproof depth of 18 cm
  • Adjustable lock delay duration between 0 ~ 60 seconds
  • Lifespan of 3 million uses
  • Passing frequency of 20 ~ 30 people per minute
  • 600mm standard passage width (customizable up to 1100mm)
  • Power supply: 100V ~ 240V AC, 50 / 60Hz
  • Consumption: 50W
  • -30 ° C ~ + 70 ° C operating temperature
  • 10% ~ 90% relative humidity
  • Indoor and outdoor use environment
  • 1.5mm stainless steel housing
  • Dimensions: 500 (W) x 980 (H) x 1500 mm
  • Weight: 70 kg
