Material on request, check delivery time On request

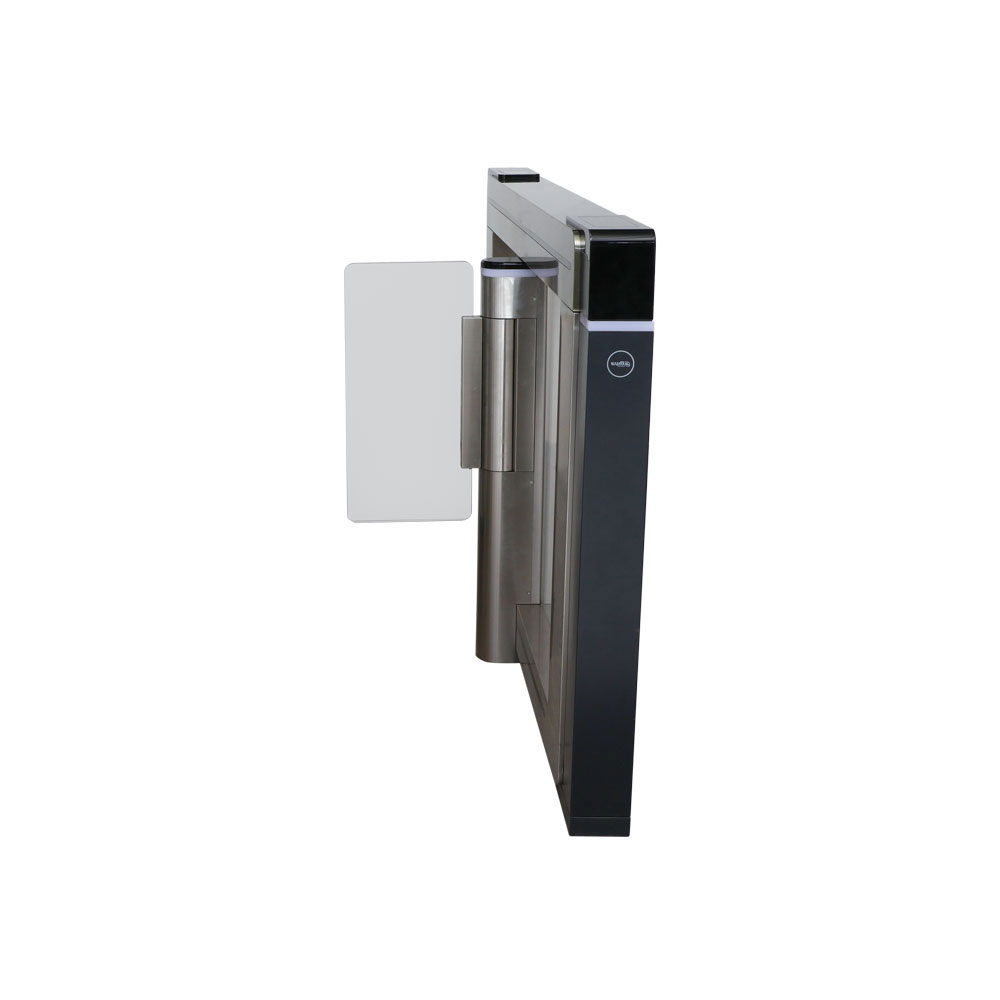

Dahua Access Control Barrier. Right motor, left barrier, 1 reader DAHUA-2289

ASGB810X-R
  • Specifications

  • Brushless servo motor on the right side

  • Barrier on the left side
  • 1 reader
  • Detection using 30 pairs of infrared detectors
  • Functions: anti-collision, memorization, anti-drag, anti-pinch, access count, alarm and light / sound warning
  • 0.6 ~ 1.6 seconds unlock / lock speed (adjustable)
  • Step duration 2 ~ 60 seconds (adjustable)
  • 0 ~ 60 seconds alarm delay (adjustable)
  • 210H Rust Protection Level
  • Lifespan of ≥5 million uses
  • Frequency of passage of 60 people per minute
  • Noise level less than 60dB at 1.5 meters
  • 600mm standard passage width (customizable up to 1100mm)
  • 2 inlet / outlet ports
  • RS232 port for commissioning
  • Power supply: 100V ~ 240V AC, 50 / 60Hz
  • Consumption: ≤20W (standby), ≤100W (operation)
  • -10 ° C ~ + 60 ° C operating temperature
  • 5% ~ 93% relative humidity
  • Indoor and outdoor use environment
  • 2mm stainless steel housing
  • Dimensions: 480.5 (W) x 1000 (H) x 1500 mm
  • Weight: 98 kg
