STOCK:

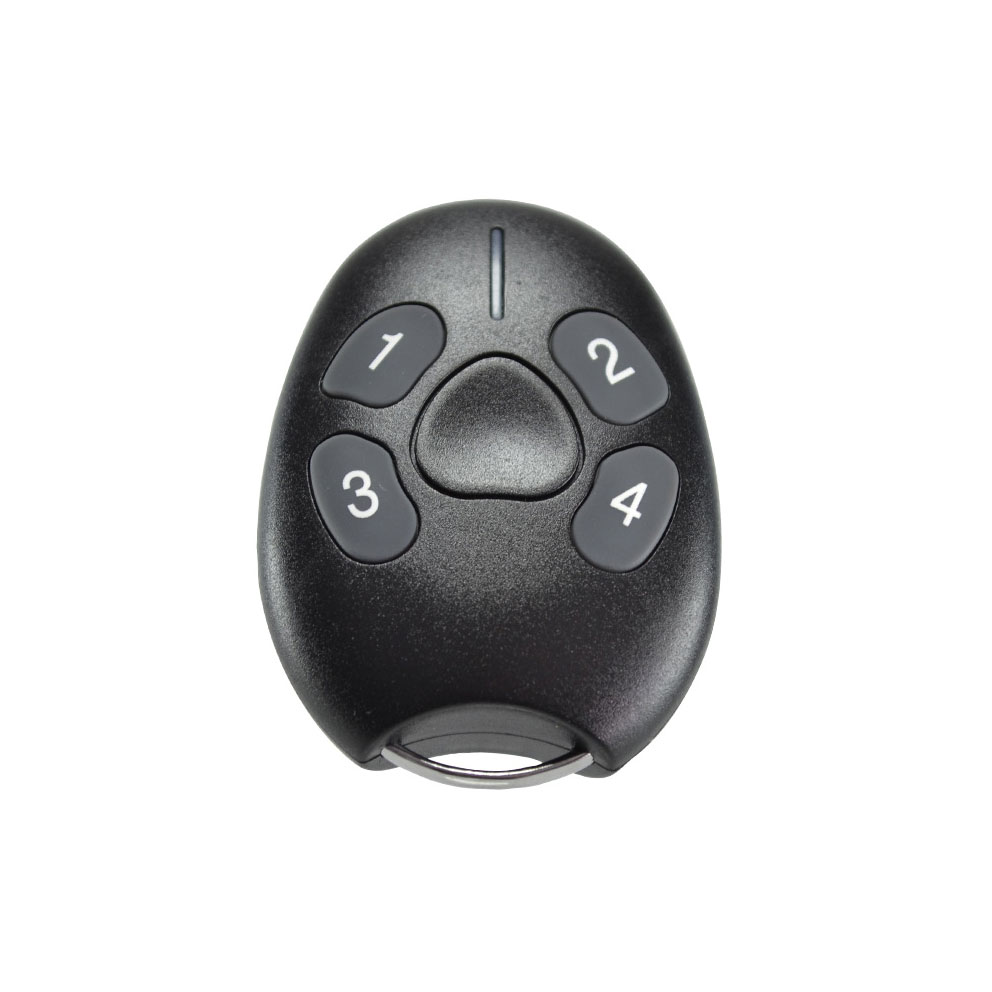

Four channel transmitter for CONAC-512 (ay-l23) receiver CONAC-728

SA-23-B4H
  • Description

  • The CONAC-728 (SA-23-B4) is a radio remote control that is used with the CONAC-512 long-range RF reader (AY-L23). The remote control can send a signal to the reader from a range of up to 70 meters. The remote can send the command signal to the reader in 2 Wiegand formats.
  • features

  • Reading range of 70 meters
  • Frequency via radio 868MHz
  • RF with excellent performance
  • Two different output formats for multiple Wiegand
  • The CONAC-728 remote control (SA-23-B4) has two different identification outputs
  • Operating temperature -31 ° C ~ 63 ° C
  • Powered by 3V battery (CR 2450)
  • Amperage consumption of <1μA mA in standby and 10 mA in operation
  • Dimensions 60 x 40 x 12 mm
  • Weight: 21 g
  • For indoor or outdoor use (IP65 grade)
