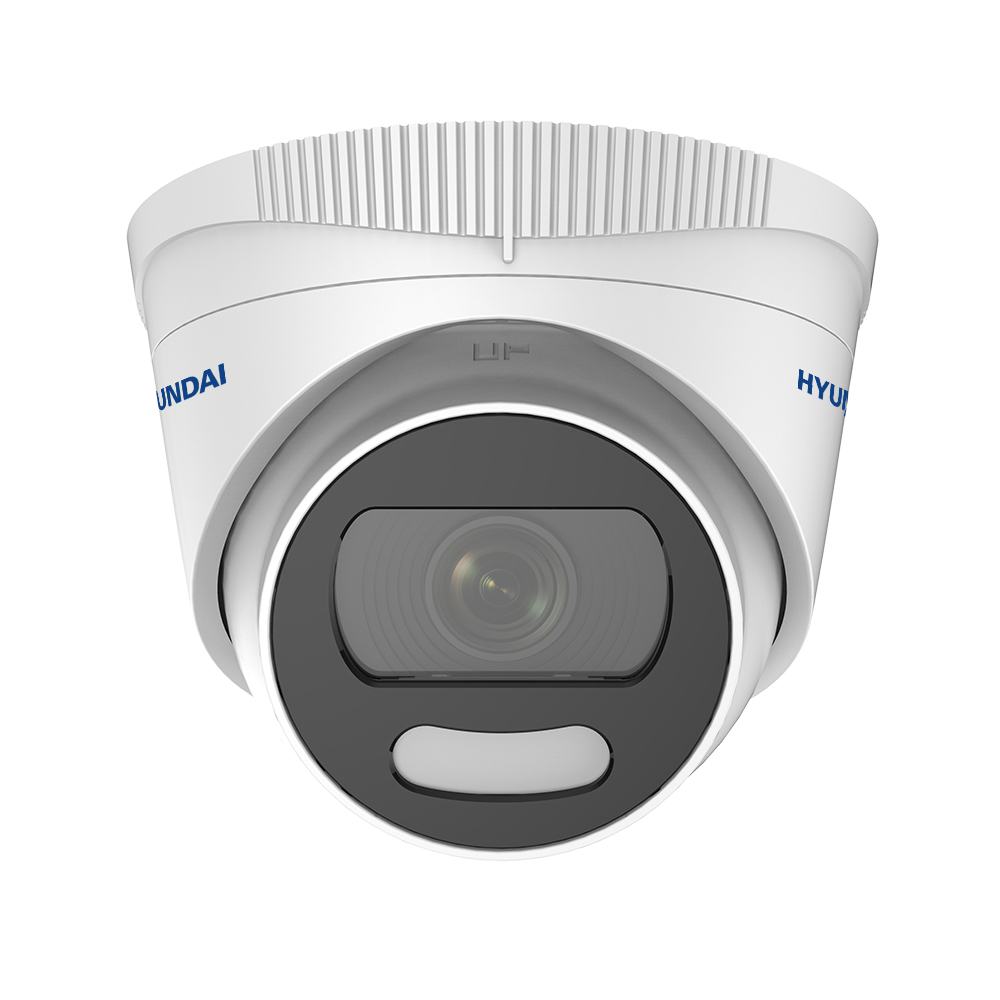

4-in-1 fixed dome Color View series with 20m white lighting for outdoor HYU-804

HYU-804
  • characteristics

  • 2MP (1920x1080) resolution
  • 24 hour color mode
  • WDR 120dB, 3D-DNR
  • 2.8mm fixed lens
  • Smart white lighting up to 20 meters
  • 4-in-1 video output (switchable)
  • Degree of protection IP67
  • Specifications
  • 2 megapixel CMOS sensor
  • Digital resolution: 2MP (1920x1080) @ 25/30 ips
  • 4-in-1 video output (switchable):
  • HDTVI: 1080P (25/30 ips)
  • HDCVI: 1080P (25/30 ips)
  • AHD: 1080P (25/30 ips)
  • CVBS: 960H, PAL / NTSC
  • 0.0008 lux F1.0 color / 0 lux with white light
  • 24 hour color mode (does not switch to B / W mode)
  • 2.8mm fixed lens
  • Viewing angle: 104 ° (H), 54 ° (V), 126 ° (D)
  • 16X slow shutter
  • White lighting up to 20 meters
  • OSD menu via coaxial
  • Automatic and manual white balance
  • Automatic gain control
  • WDR 120dB
  • Backlight compensation (BLC, HLC)
  • 3D-DNR noise reduction
  • 4 programmable zone video sensor
  • 4 programmable privacy masks
  • -40 ° C ~ + 60 ° C operating temperature
  • Relative humidity: ≤90% (non-condensing)
  • Degree of protection IP67
  • Metal and plastic housing
  • Power supply: 12V DC (± 25%)
  • Consumption: Max. 3W
  • Dimensions: Ø109.82 x 85.56 mm
  • Weight: 336g
  • 3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 75 ° (TILT), 0 ° ~ 360 ° (Rotation)
This product is discontinued
It is replaced by the new version HYU-891
