STOCK:

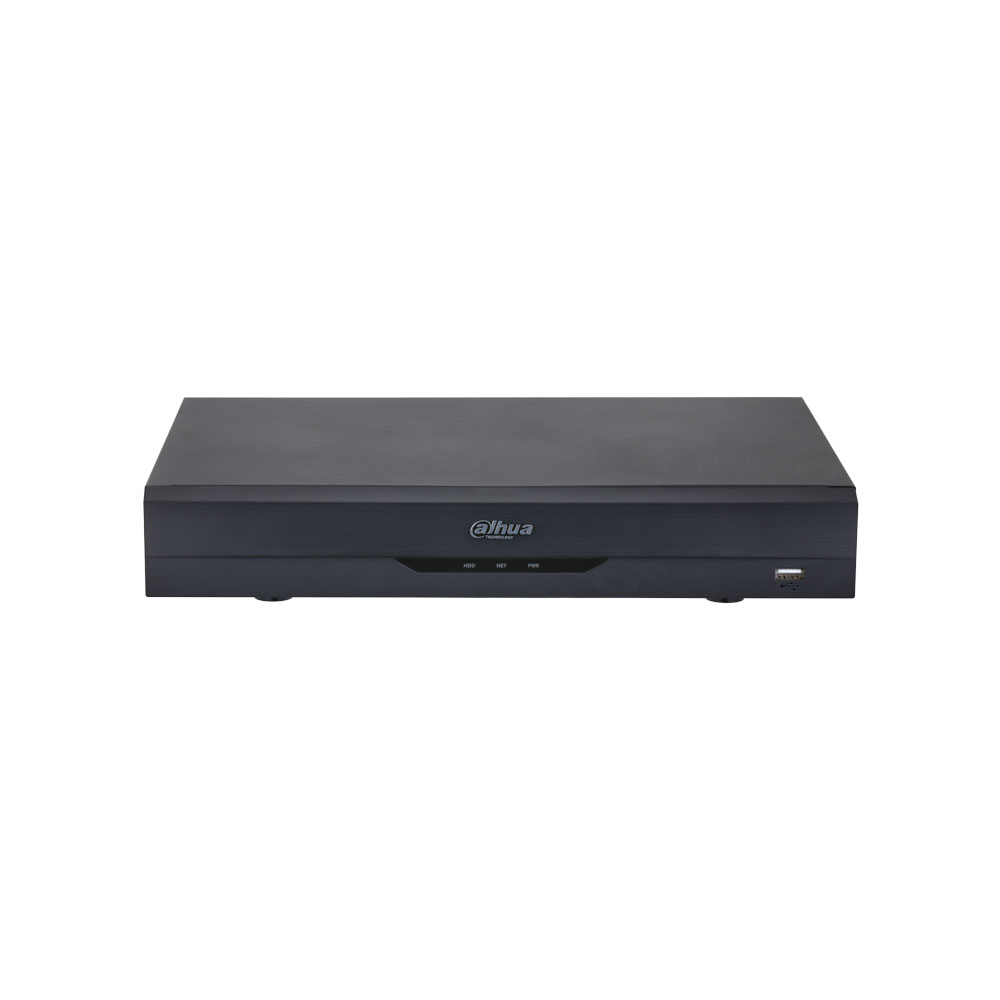

XVR DAHUA WIZSENSE 5M-N OF 4 CHANNELS BNC + 2 IP CHANNELS 6MP DAHUA-2976-FO

DH-XVR5104HE-I2
  • Specifications

  • 5 technologies: IP, HDCVI, HDTVI, AHD, and analogue CVBS cameras with automatic signal recognition
  • 4 BNC channels up to 5M-N (BNC inputs can be converted to IP)
  • 2 IP channels up to 6MP (added to BNC inputs)
  • Video compression: AI, H.265+, H.265, H.264+, H.264
  • HDMI video output (1080P) and VGA output (1080P)
  • Output split: 1, 4 (IP mode off); 1, 4, 6 (IP mode on)
  • 4 RCA audio inputs / 1 RCA audio output
  • Bi-directional audio via RCA input / RCA output
  • Audio compression: G.711a, G.711u, PCM
  • Recording Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
  • Maximum incoming bandwidth 32 Mbps
  • Primary stream: 5M-N (1~10 fps), 4M-N/1080P (1~15 fps), 1080N/720P/960H/D1/CIF (1~25 fps)
  • Secondary stream: D1/CIF (1~15 ips)
  • Recording modes: manual, calendar, video detection, video loss, tampering, alarm, stop
  • Recording intervals (1~60 minutes), pre-recording (1~30 sec.) and post-recording (10~300 sec.)
  • Independent configurable video sensor per camera (selectable 22x18 grid), video loss detection and masking, diagnostics
  • 8 alarm inputs / 3 alarm outputs
  • Playback of up to 4 channels
  • Perimeter protection: 2 channels, 10 SVIs per channel
  • Facial recognition: 1 channel, 8 facial images per second, 10 facial databases of up to 10,000 images
  • SMD Plus: 4 channels, person/vehicle classification
  • Internal capacity for 1 SATA HDD up to 6TB (sold separately)
  • Multi-language on-screen menu with the new improved graphical interface
  • Possibility to update DAHUA camera firmware from the recorder itself
  • Software and hardware watchdog
  • Watermarking to preserve video integrity
  • RJ45 Fast Ethernet network port (100MB)
  • Network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filtering, PPPoE, DDNS, FTP,
  • Alarm Server, P2P, IP Search (supports Dahua IP cameras, DVR, NVS, etc.)
  • ONVIF 16.12 and CGI compatible
  • Remote access from a web browser and iPhone, iPad, Android devices (EVO and Peepall App)
  • Sending of eMails with attached photo in alarm
  • Sending to FTP programmed or on alarm
  • Possibility to send an alarm and be connected to an alarm receiving software (C.R.A.) via free software AlarmSpace
  • Possibility of fixed or dynamic IP via DDNS Evolution service
  • Communication ports: 2 USB 2.0 ports, 1 RS485 port (for PTZ control)
  • Power supply: 12V DC, 1.5A (<4W, excluding disks)
  • Storage temperature from -20°C ~ +70°C
  • Operating temperature from -10°C ~ +55°C
  • Relative humidity 0%~90%.
  • Dimensions: 325 (W) x 55 (H) x 257 mm
  • Weight: 1.1 kg
  • Desktop installation
