Replenishment:
03/02/2022

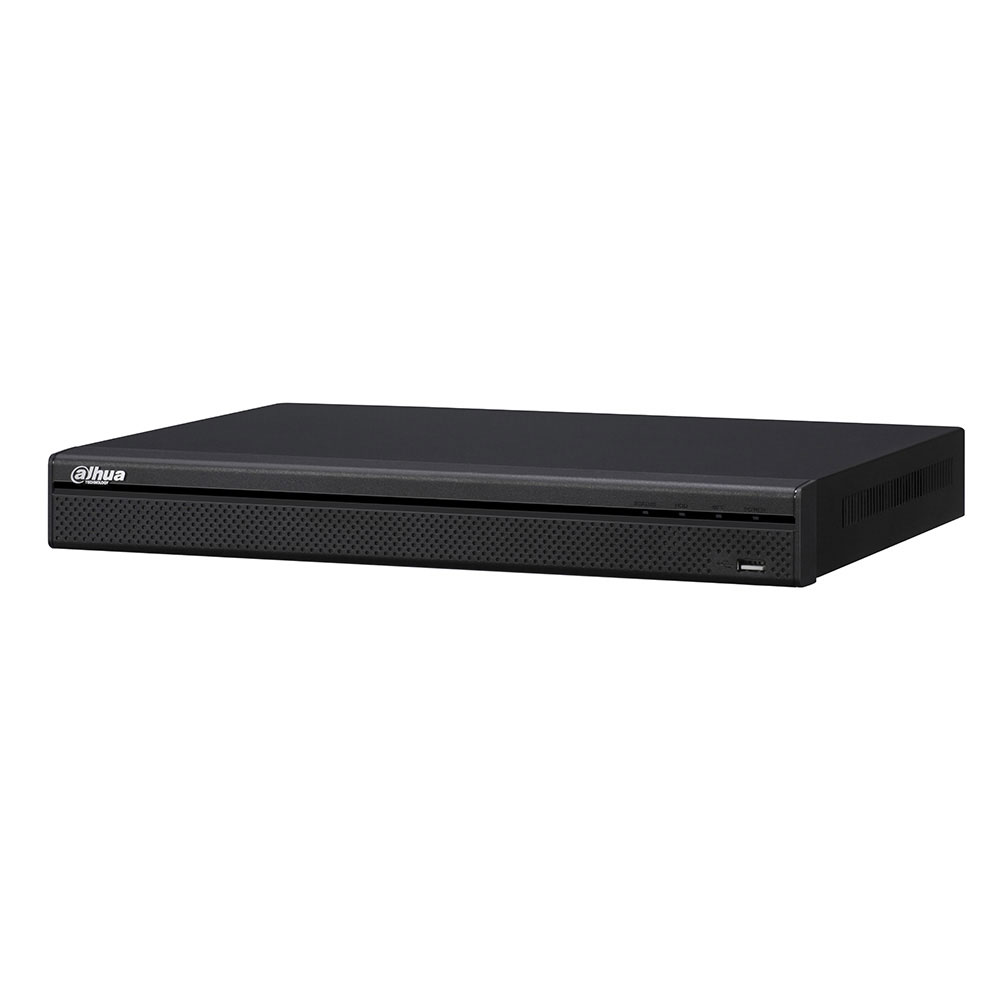

XVR 32 channels BNC 5M-N or 32 channels IP 4MP DAHUA-3159-FO

DHI-XVR5232AN-S2(V2.0)
  • Specifications

  • 5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS with automatic signal recognition

  • 32 BNC channels up to 5M-N (BNC inputs can be converted to IP)
  • 32 IP channels at 4MP (bypassing BNC inputs)
  • Video compression: H.265, H.264
  • HDMI video output (1080P), VGA output (1080P) and Spot BNC output
  • Output division: 1, 4, 8, 9, 16, 25, 36
  • 1 RCA input / 1 RCA audio output
  • Two-way audio via RCA input / output
  • Recording resolution: 5M-N, 4M-N, 1080P, 720P, 960H, D1, CIF
  • 128 Mbps maximum incoming bandwidth
  • Main stream: 5M-N (1 ~ 10 ips), 4M-N / 1080P (1 ~ 15 ips), 1080N / 720P / 960H / D1 / CIF (1 ~ 25 ips)
  • Secondary Stream: 960H (1 ~ 15 ips), D1 / CIF (1 ~ 25 ips)
  • Manual, calendar, video detection, video loss, tampering, alarm, stop recording modes
  • Playback of up to 16 channels
  • Face detection: Channel 1 only (analog cameras only)
  • Video Analysis (IVS): 1 channel, 10 rules per channel (analog cameras only)
  • Internal capacity for 2 SATA HDDs up to 10TB (sold separately)
  • Multilanguage on-screen menu with new improved graphical interface 4.0
  • Possibility of updating the firmware of DAHUA cameras from the recorder itself
  • Software and hardware watchdog
  • Watermark to preserve the integrity of the videos
  • Gigabit RJ45 network port (1000MB)
  • Network protocols: HTTP, HTTPS, TCP / IP, IPv4 / IPv6, WiFi, SNMP, UPnP, RTSP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, Alarm Server, IP Search (supports Dahua IP cameras, DVR , NVS, etc.)
  • ONVIF (S), CGI and SDK compliant
  • Remote access from web browser and iPhone, iPad, Android devices (EVO and TTS App)
  • Sending emails with attached photograph in alarm
  • Send to FTP scheduled or in alarm
  • Possibility of sending alarm and being connected to alarm receiver software (C.R.A.) using free AlarmSpace software
  • Possibility of fixed or dynamic IP through DDNS Evolution service
  • Communication ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS485 port (for PTZ control)
  • Power supply: 12V DC, 5A (<27W, not counting discs)
  • -10 ° C ~ + 55 ° C operating temperature
  • Relative humidity 0% ~ 90%
  • Dimensions: 375 (W) 53 (H) x 288 mm
  • Weight: 1.9 kg
  • Desktop or 1U rack installation
