Material on request, check delivery time On request

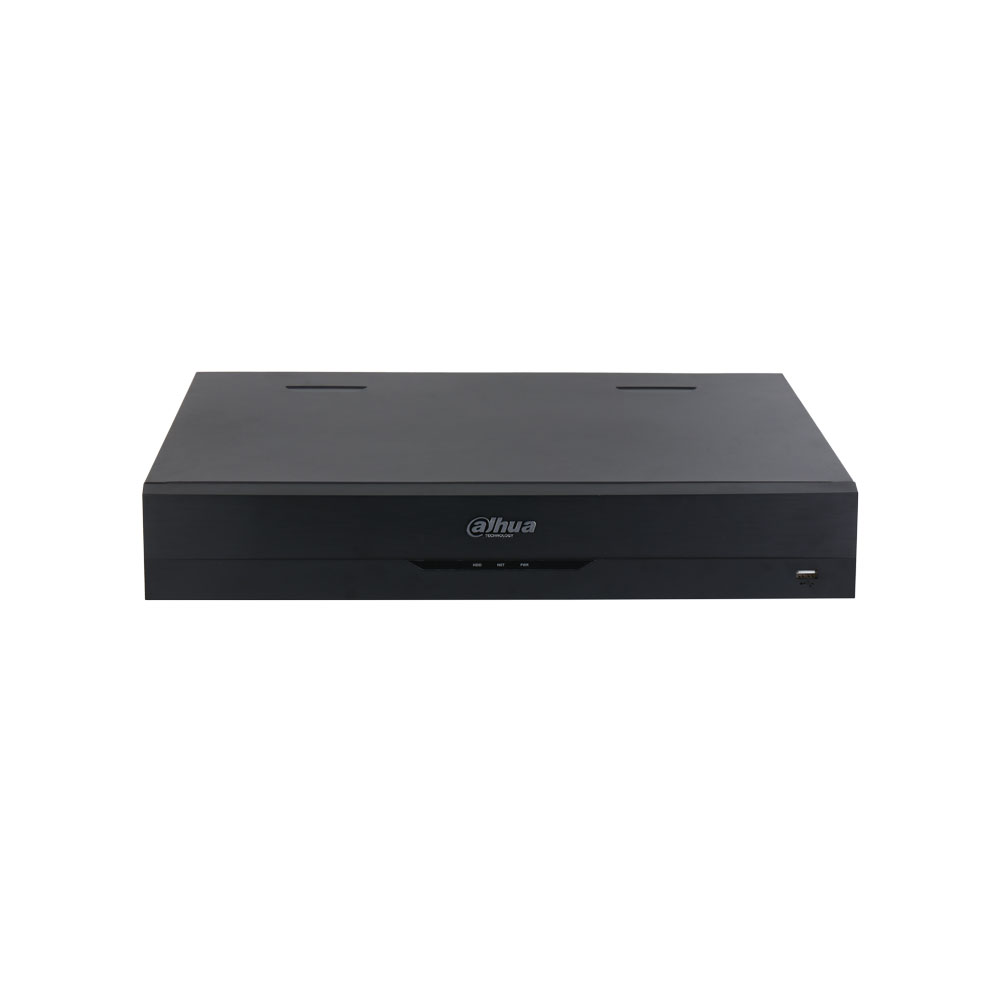

XVR Dahua WizSense 32 BNC channels or 32 IP 12MP channels DAHUA-2981-FO

XVR5432L-4KL-I2
  • Specifications

  • 5 technologies: IP, HDCVI, HDTVI, AHD, and analogue CVBS cameras with automatic signal recognition

  • 32 BNC channels up to 8MP/4K (BNC inputs can be converted to IP)
  • 32 IP channels at 12MP
  • Video compression: AI, H.265+, H.265, H.264+, H.264
  • 2 HDMI video outputs (4K), VGA output (1080P) and BNC output
  • Output division: 1, 4, 8, 9, 9, 16, 25, 36
  • 4 BNC inputs / 1 BNC audio output
  • Bi-directional audio via BNC input / BNC output
  • Audio compression: G.711a, G.711u, PCM
  • Recording resolution: 8MP/4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
  • Maximum incoming bandwidth 128 Mbps
  • Primary stream: 8MP/4K (1~7 fps), 6MP (1~10 fps), 5MP (1~12 fps), 4K-N/4MP/3MP (1~15 fps), 4M-N/1080N/720P/960H/D1/CIF (1~25 fps)
  • Secondary Stream: 960H (1~15 fps), D1/CIF (1~25 fps)
  • Recording modes: manual, calendar, video detection, video loss, tampering, alarm, stop
  • Recording intervals (1~60 minutes), pre-recording (1~30 sec.) and post-recording (10~300 sec.)
  • Independent configurable video sensor per camera (selectable 22x18 grid), video loss detection and masking, diagnostics
  • 16 alarm inputs / 6 alarm outputs
  • Playback of up to 16 channels
  • Perimeter protection: 6 channels, 10 IVS per channel
  • Facial recognition: 6 channels
  • SMD Plus: 32 channels, person/vehicle classification
  • Internal capacity for 4 SATA HDDs up to 10TB (sold separately)
  • 1 eSATA port
  • Multi-language on-screen menu with new improved graphical interface
  • Possibility to update DAHUA camera firmware from the recorder itself
  • Software and hardware watchdog
  • Watermarking to preserve video integrity
  • Gigabir RJ45 network port (1000MB)
  • Network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filtering, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (supports Dahua IP cameras, DVR, NVS, etc.)
  • ONVIF 16.12 and CGI compatible
  • Remote access from web browser and iPhone, iPad, Android devices (EVO and Peepall App)
  • Sending of eMails with attached photo in alarm
  • Sending to FTP programmed or on alarm
  • Possibility to send alarm and be connected to alarm receiving software (C.R.A.) via free software AlarmSpace
  • Possibility of fixed or dynamic IP via DDNS Evolution service
  • Communication Ports: 2 USB 3.0 ports, 1 USB 2.0 port, 1 RS485 port (for PTZ control), 1 RS232 port (for PC and keyboard communication)
  • Power supply: 100V~240V AC, 50/60Hz (<30W, excluding disks)
  • Storage temperature from -20°C ~ +70°C
  • Operating temperature from -10°C ~ +55°C
  • Relative humidity 0%~90%.
  • Dimensions: 440 (W) 76 (H) x 421 mm
  • Weight: 4.9 kg
  • Desktop or 1.5U rackmount installation
