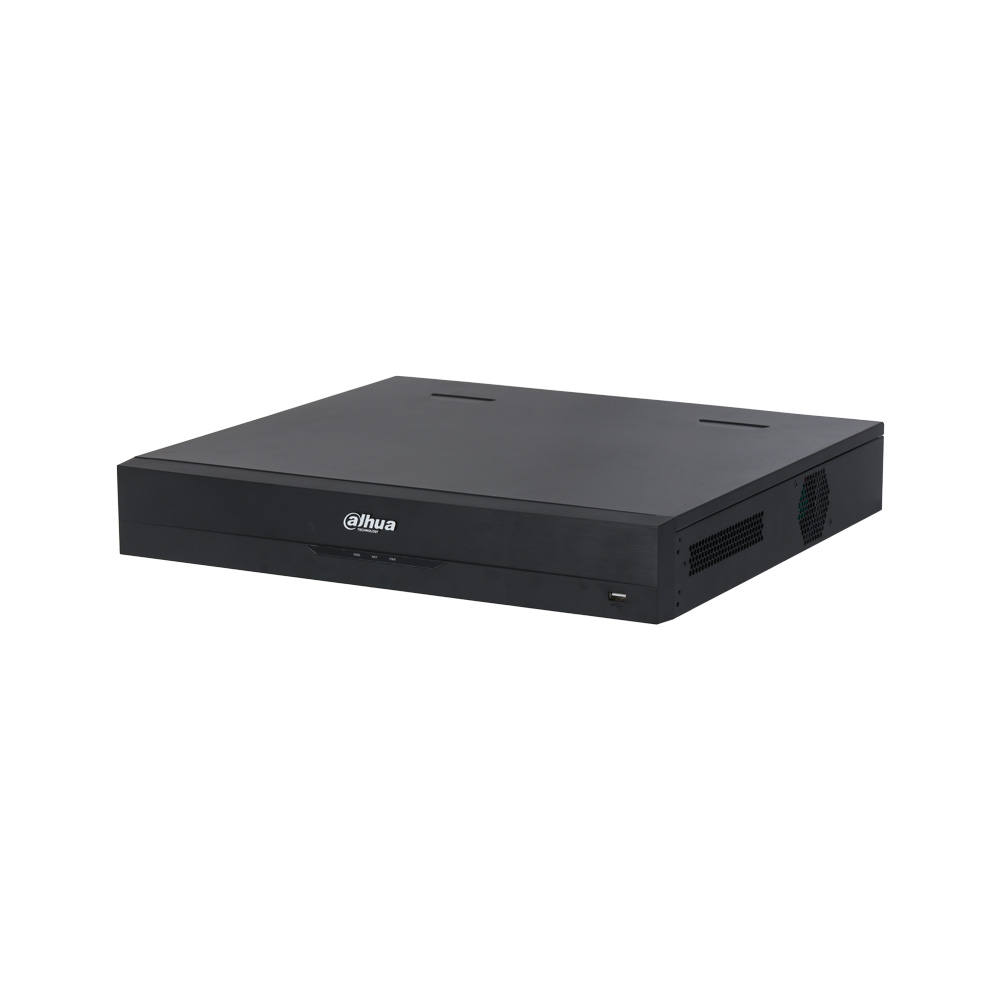

XVR Dahua WizSense 32 channels BNC or 32 channels IP 8MP DAHUA-2935-FO

XVR5432L-I2
  • specs

  • 5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS with automatic signal recognition

  • 32 BNC channels up to 5M-N (without adding to the IP channels)
  • 32 IP channels at 8MP (not added to BNC channels)
  • Video compression: AI, H.265 +, H.265, H.264 +, H.264
  • 2 HDMI video outputs (4K + 1080P), VGA output (1080P) and BNC output
  • Output division: 1, 4, 8, 9, 16, 25, 36
  • 4 BNC audio inputs / 1 BNC audio output
  • Two-way audio via BNC input / output
  • Audio compression: G.711a, G.711u, PCM
  • Recording resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
  • 128 Mbps maximum incoming bandwidth
  • Main stream: 5M-N (1 ~ 10 ips), 4M-N / 1080P (1 ~ 15 ips), 1080N / 720P / 960H / D1 / CIF (1 ~ 25 ips)
  • Secondary stream: D1 / CIF (1 ~ 15 ips)
  • Recording modes manual, by calendar, by video detection, video loss, tampering, alarm, stop
  • Intervals for recording (1 ~ 60 minutes), pre-recording (1 ~ 30 sec.) And post-recording (10 ~ 300 sec.)
  • Independent configurable video sensor per camera (selectable 22x18 grid), video loss detection and masking, diagnostics
  • 16 alarm inputs / 6 outputs
  • Playback of up to 16 channels
  • Perimeter protection: 2 channels, 10 IVS for each channel
  • Facial recognition: 2 channels, 12 facial images per second, 10 facial databases of up to 10,000 images
  • SMD Plus: 16 channels, person / vehicle classification
  • Internal capacity for 4 SATA HDDs up to 10TB (sold separately)
  • ESATA port
  • Multilanguage on-screen menu with new improved graphical interface
  • Possibility of updating the firmware of DAHUA cameras from the recorder itself
  • Software and hardware watchdog
  • Watermark to preserve the integrity of the videos
  • Gigabit RJ45 network port (1000MB)
  • Network protocols: HTTP, HTTPS, TCP / IP, IPv4 / IPv6, Wi-Fi, 3G / 4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Server Alarm, P2P, IP Search (supports Dahua IP cameras, DVR, NVS, etc.)
  • ONVIF 16.12 and CGI compliant
  • Remote access from web browser and iPhone, iPad, Android devices (EVO and Peepall App)
  • Sending emails with attached photograph in alarm
  • Send to FTP scheduled or in alarm
  • Possibility of sending alarm and being connected to alarm receiver software (C.R.A.) using free AlarmSpace software
  • Possibility of fixed or dynamic IP through DDNS Evolution service
  • Communication ports: 1 USB 2.0 port, 2 USB 3.0 ports, 1 RS485 port (for PTZ control), 1 RS232 port (for communication with PC and keyboard)
  • Power supply: 100V ~ 240V AC, 50 / 60Hz (<22W, excluding discs)
  • Storage temperature -20 ° C ~ + 70 ° C
  • -10 ° C ~ + 55 ° C operating temperature
  • Relative humidity 0% ~ 90%
  • Dimensions: 440 (W) 76 (H) x 421 mm
  • Weight: 4.8 kg
  • 1.5U desktop or rack installation
