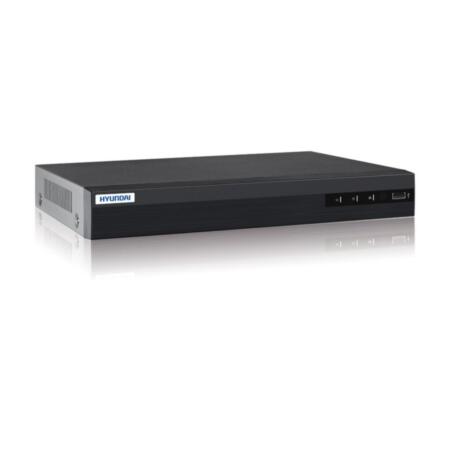

8 channel 5 in 1 ZVR HDCVI/HDTVI/AHD/CVBS + 4 IP channels HYU-563

ZVR7208-A-POC

HYU-563 | 8 channel 5 in 1 ZVR HDCVI/HDTVI/AHD/CVBS + 4 IP channels. H.265+/H265/H.264+/H264. Audio: 4 in / 1 out. 8 channel simultaneous playback. Recording: 8MP (IP), 6MP (TVI, AHD), 4MP, 1080P, 720P, WD1, 4CIF, VGA, CIF. BNC output at 4CIF. HDMI and VGA output at 1080P. Alarm: 8 in / 4 out. 2 HDD SATA. Onvif, P2P, DDNS. 2 USB, 1 RS485. 48V DC.  PoC up to 5MP.
KEY FEATURES
hyundai-next-genpoch265p2ponvif25mphdcvihdtviahdcvbs
  • 8 channel 5 in 1 ZVR HDCVI/HDTVI/AHD/CVBS + 4 IP channels
  • H.265+/H265/H.264+/H264
  • Audio: 4 in / 1 out
  • 8 channel simultaneous playback
  • Recording: 8MP (IP), 6MP (TVI, AHD), 4MP, 1080P, 720P, WD1, 4CIF, VGA, CIF
  • BNC output at 4CIF
  • HDMI and VGA output at 1080P
  • Alarm: 8 in / 4 out
  • 2 HDD SATA
  • Onvif, P2P, DDNS
  • 2 USB, 1 RS485
  • 48V DC. PoC up to 5MP.
