Material on request, check delivery time On request

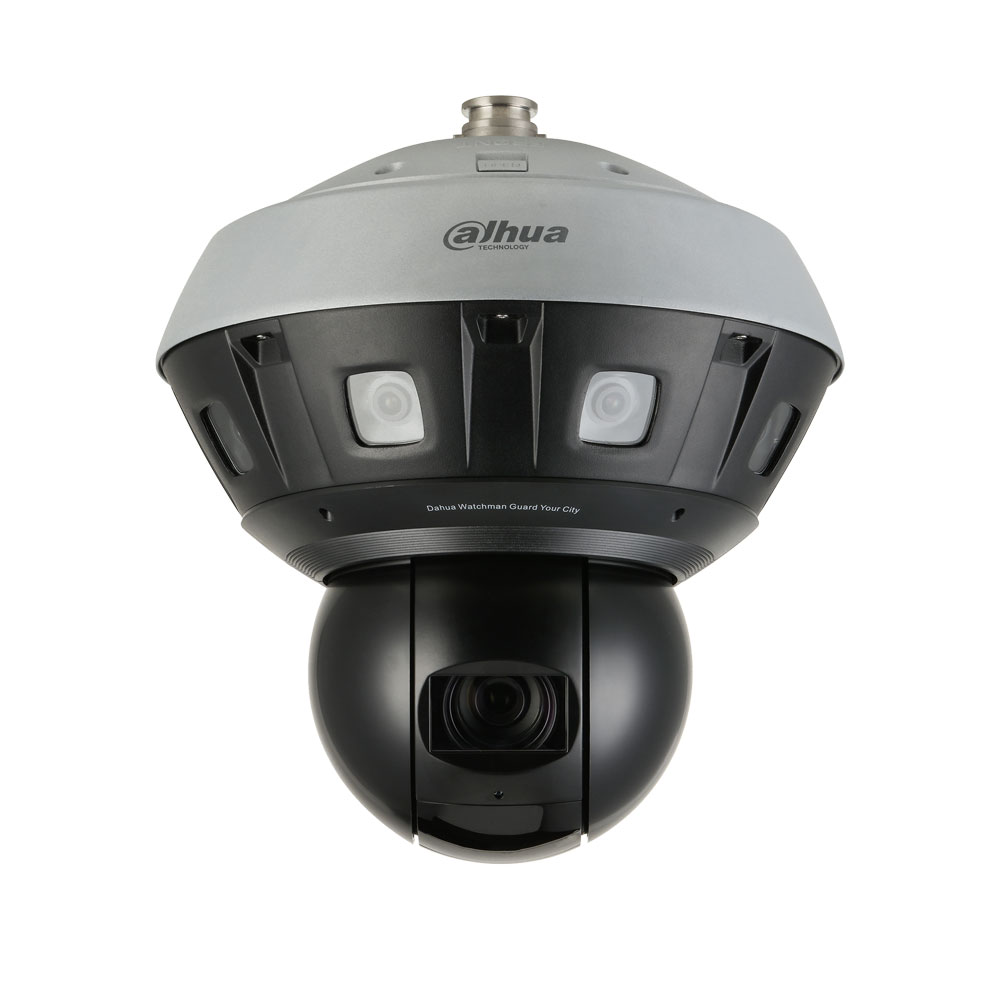

Dahua STARLIGHT 240°/sec panoramic IP motorized dome DAHUA-2972

PSDW8842MP-H-A180-E5-D440
  • Panoramic camera

  • 4 x 2 megapixel 1/1.8" CMOS sensors

  • Resolution: 4096x1800, 4800x1920, 3840x1680, 3200x1280, 2880x1264, 2048x900, 1920x832, 1600x640, 1280x560, 1024x452
  • Stream 1: 4096x1800 (1~25 fps)
  • Stream 2: 1920x832 (1~25 ips)
  • Stream 3: 4800x1920 (1~25 fps)
  • Removable mechanical filter
  • Minimum illumination: 0.001 lux (colour), 0.0002 lux (B/W)
  • 5 mm fixed optics
  • Viewing angle: 180°(H), 84°(V)
  • White balance: Auto, Daylight, Streetlight, Outdoor, Manual, Regional Customisation
  • Automatic and manual gain control
  • Backlight compensation (BLC, HLC)
  • WDR 120dB
  • 3D-NR noise reduction
  • 4-zone ROI
  • 4-zone video sensor
  • 4-Zone Privacy Masking
  • Motorized camera

  • 4 megapixel 1/1.8" CMOS sensor

  • Digital resolution: 2560x1440, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576, 704x480, 352x288, 352x240
  • Stream 1: 2560x1440 (1~25 ips)
  • Stream 2: 704x480 (1~25 fps)
  • Stream 3: 1920x1080 (1~25 fps)
  • Removable mechanical filter
  • Smart IR up to ≥400 meters
  • Minimum illumination: 0.001 lux (colour), 0.0001 lux (B/W)
  • 40X optical zoom: 5.6 ~ 223 mm
  • Angle of view: 2.27°~61.4°(H), 1.30°~35.99°(V), 2.62°~68.18°(D)
  • Auto iris control
  • Auto White Balance, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Daylight, Street Light
  • Automatic and manual gain control
  • Backlight compensation (BLC, HLC)
  • WDR 120dB
  • 3D-NR noise reduction
  • 4-zone ROI
  • 4-zone video sensor
  • 8-zone privacy mask
  • Digital Image Stabilizer
  • Defog
  • Horizontal positioner: 0° ~ 360° continuous
  • Vertical positioner: -12° ~ 90°, auto flip 180° manual speed: 240°/sec.
  • Manual speed: 240°/sec. (H), 100°/sec. (V)
  • Remote optics reset
  • 300 presets
  • 5 patterns, 8 rounds (up to 32 presets per round), 5 scans
  • 3D positioning
  • General

  • H.265, H.264, MJPEG video compression

  • IVS intelligence: Cross-line and intrusion detection
  • Audio compression G.711Mu, G.711A, G.726, AAC
  • 2 audio inputs / 2 audio outputs
  • 7 alarm inputs / 3 alarm outputs
  • Network interface: RJ45 (10/100/1000 Base-T)
  • Network Protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP
  • ONVIF (Profile S&G), CGI support
  • Up to 20 users
  • Remote viewing via IE7, Chrome42, Firefox52, Safari11 browsers
  • Slot for microSD card up to 512GB (card not included)
  • Power supply: 36V DC
  • Power consumption: 50.7W~77.7W
  • Storage temperature from 5°C ~ +40°C
  • Operating temperature from -40°C ~ +70°C
  • 95% relative humidity
  • IP66 degree of protection
  • Metal and plastic housing
  • Dimensions Ø383 x 389.8 mm
  • Weight: 14.3 kg
