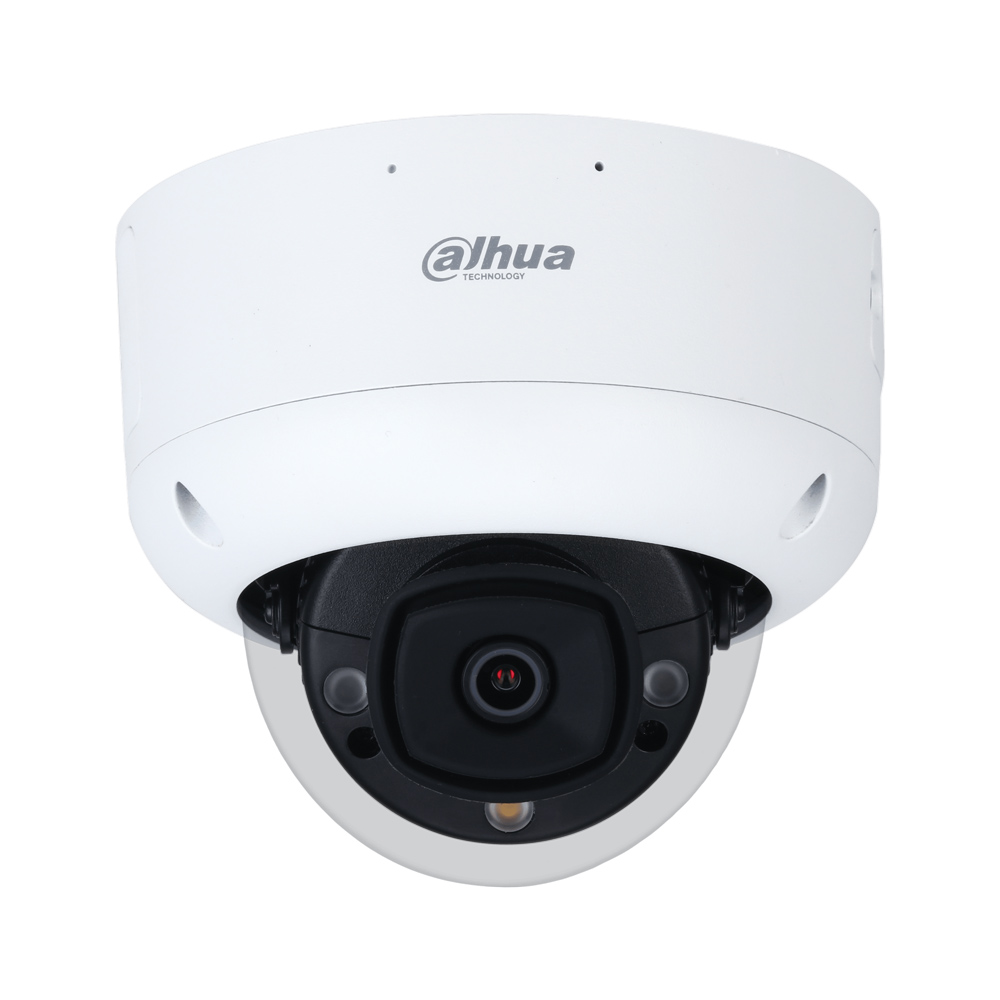

Dahua IP dome 5MP outdoor
DAHUA-3292-FO
DH-IPC-HDBW5541R1P-AS-PV-0280B
- 1/2.7” 5 megapixel CMOS sensor
Compression formats: Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG
Digital resolution: 5MP (2592x1944), 4MP (2688x1520), 4MP (2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 5MP (1~20fps), 4MP (1~25fps), 1080P (1~50fps)
Stream 2: D1 (1~50fps)
Stream3: 1080P (1~25fps)
Day/night mode with removable mechanical filter
Smart IR: 2 IR leds + 1 white light led, 50 meters
0.005 lux F1.6 (color), 0.0005 lux F1.6 (B/W), 0 lux IR On
2.8mm fixed lens
View Angle: 98°(H), 71°(V), 129°(D)
Image modes: BLC, HLC, WDR 120dB, SSA, 3D-NR, Mirror, Defog
White balance with 6 modes
Automatic and manual gain control
Supports 4-zone video sensor, 4 regions of interest (ROI) and 8-zone privacy mask
Intelligent Video Detection (IVS): Detection of abandoned/lost objects
Support heat map
Perimeter protection with line crossing detection, intrusion detection, fast motion detection (all three modes support person/vehicle classification), loitering detection, people gathering detection, and parking detection
Face detection with three capture methods
People counting: Counting of people entering/exiting and the number of people passing through; displays and generates annual / monthly / weekly / daily reports; support people counting in one area and setting 4 rules
Includes microphone
1 RCA audio input / 1 output
1 input / 1 alarm output
MicroSD card slot up to 256GB (not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, Bonjour
Compatible with ONVIF (Profile S/G/T), CGI, Milestone, Genetec, SDK and API
Up to 20 users
Remote viewing via IE8, Chrome and Firefox browsers
Smart PSS, DSS, DMSS management software
Compatible with IOS and Android mobile devices
Power: 12V DC (±30%) / PoE (802.3af)
Consumption: 8.9W (12V), 9.6W (PoE)
Storage temperature -40°C ~ +60°C
Operating temperature -40°C ~ +60°C
Relative humidity: <95%
Degree of protection IP67
Vandal protection IK10
metal casing
Dimensions: Ø126 x 105 (H) mm
Weight: 716g
3AXIS: 0°~355°(PAN), 0°~80°(TILT), 0°~355°(ROTATION)
| REFERENCE / MODEL | DAHUA-3292-FO / DH-IPC-HDBW5541R1P-AS-PV-0280B |
|---|---|
| Resolution | 5MP |
| Audio | 1 input / 1 output || Microphone |
| IR Distance | 41-80m |
| Ingress protection | IP67 |
| Lens | 2.8mm |
| Special Protection | Vandal-proof (IK10) |
| Sensor | 1/3" CMOS |
| StarLight | StarLight |
| WDR (Backlight) | WDR (120dB) |
| Codec | H.264 || H.265 || H.265+ |
| PoE | PoE |
| SD Slot | Yes |
| Colour | White |
| Alarm channels | 1 input / 1 output |
| AI Series | WizMind |
