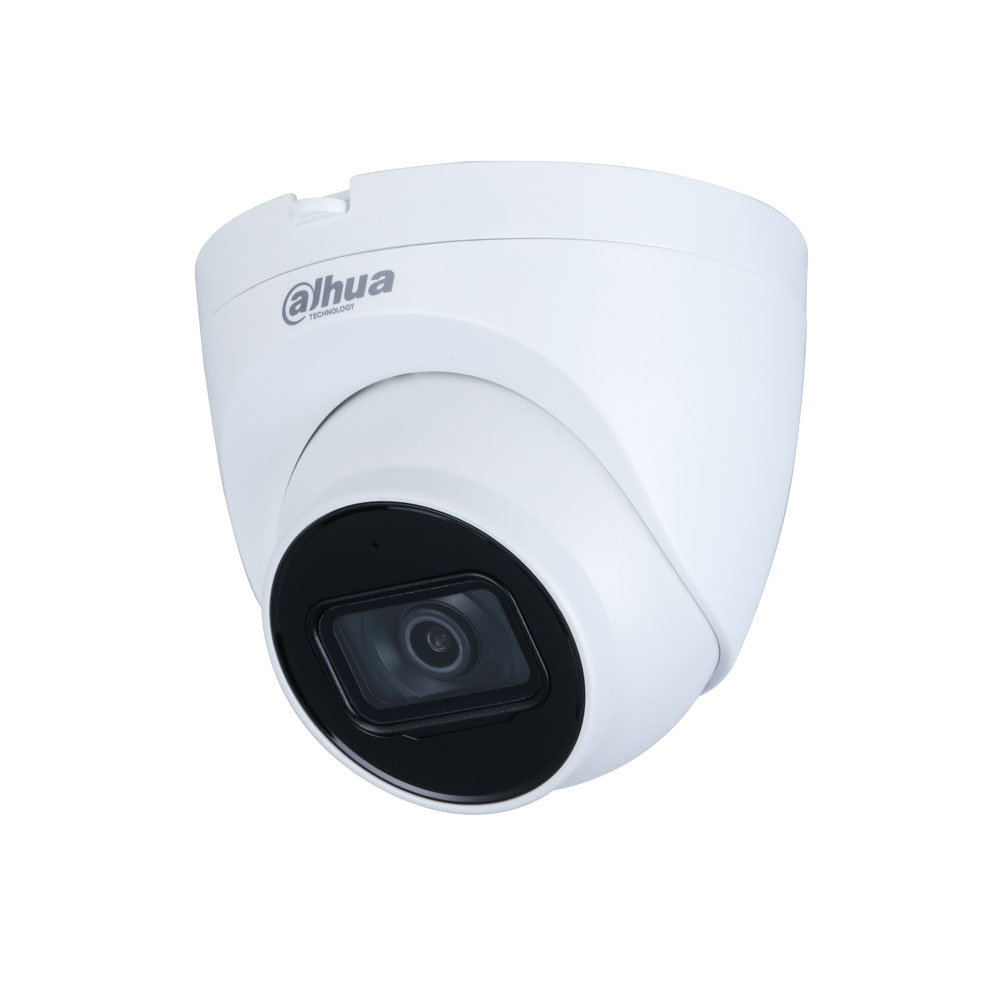

DAHUA 2MP SMART IR 30M IP DOME IP67 DAHUA-2987-FO

DH-IPC-HDW2231TP-AS-0280B-S2
  • Specifications

  • 2 megapixel 1/2.8" CMOS image sensor

  • Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
  • Smart H.265+, Smart H.264+, H.265, H.264, and MJPEG video compression
  • Stream 1: 1080P (1~25 fps)
  • Stream 2: D1 (1~25 fps)
  • Day/Night mode with removable mechanical filter (ICR)
  • 0.002 lux F1.6
  • Smart IR: 2 LEDs, up to 30 meters
  • 2.8 mm fixed optics
  • Angle of view: 106°(H), 56°(V), 126°(D)
  • Imaging modes: BLC, HLC, 120dB WDR, 3D-NR, Mirror
  • White balance with 6 modes
  • Automatic and manual gain control
  • Supports 4-zone video sensor, 4 regions of interest (ROI), and 4-zone privacy mask
  • Intelligent Video Sensing (IVS): Intrusion detection, cross-line detection
  • MicroSD card slot up to 256GB (card not included)
  • Network interface: RJ45 (10/100 Base-T)
  • Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour
  • Remote viewing with browsers (IE, Chrome, Firefox) and IOS and Android smartphones
  • Smart PSS, DSS and DMSS management software
  • Interoperability: ONVIF S/G/T, CGI, Milestone, Genetec, P2P
  • Power supply: 12V DC
  • Power consumption: <6.5W
  • Supports PoE (802.3 af)
  • Storage Temperature: -40°C ~ +60°C
  • Operating conditions: -40°C ~ +60°C, <95% relative humidity
  • IP67 protection rating
  • Metal and plastic housing
  • Dimensions: Ø109.9 x 100.9 (H) mm
  • Weight: 390 g
  • 3AXIS: 0°~360°(PAN), 0°~78°(TILT), 0°~360°(Rotation)
  • Power supply not included
