Replenishment:
14/12/2021

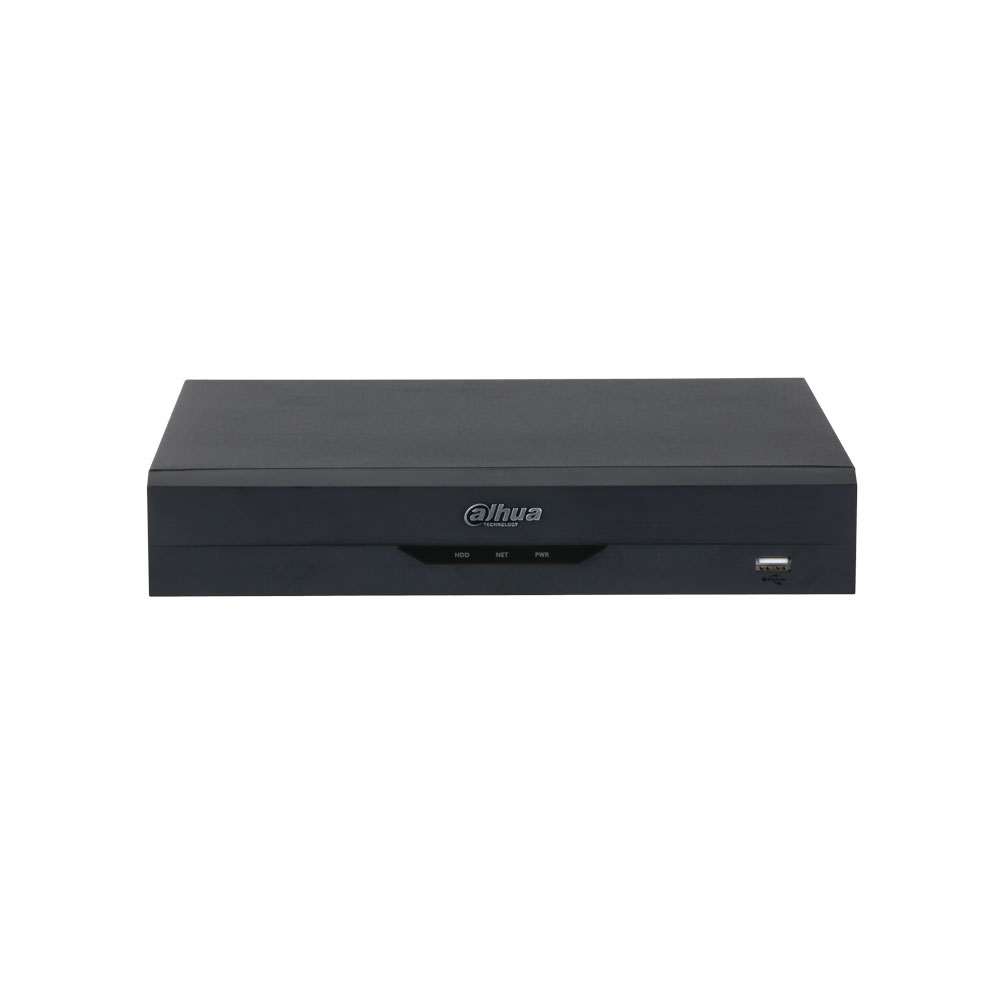

16 Channel 4K / 8MP Dahua IP NVR DAHUA-3010-FO

DHI-NVR2116HS-I
  • Specifications

  • 16 Channel IP NVR

  • Industrial grade embedded processor
  • Embedded LINUX operating system
  • Smart H.265 + / Smart H.264 + / H.265 / H.264 / MJPEG video encoding
  • Perimeter protection: 2 channels, line crossing and intrusion with classification of people / vehicles
  • Facial recognition: 1 channel, 8 facial images per second, up to 8 simultaneous targets, up to 10 databases with a maximum of 5,000 facial images
  • SMD Plus: 4 channels, person / vehicle classification
  • 16 IP camera inputs
  • Video output VGA (1920x1080) and HDMI (3840x2160)
  • Two-way audio: 1 RCA input / 1 RCA output
  • Real-time display of up to 1 channel 8MP / 4K (3840x2160) or 4 channels 1080P (1920x1080)
  • Output division: 1, 4, 8, 9, 16
  • Display resolution: 4K / 8MP (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720)
  • Recording resolution: 12MP, 4K / 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
  • Bandwidths: 200Mbps for access, 200Mbps for storage and 100Mbps for forwarding
  • Playback of up to 16 channels (maximum 1 channel at 8MP / 4K)
  • Video sensor: Selectable 22x18 grid, multi-level adjustable sensitivity, video loss and masking detection
  • Storage: 1 SATA port (up to 8TB per disk, not included)
  • RJ45 network interface (10/100 / 1000Mbps)
  • Network protocols: HTTP, HTTPS, TCP / IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS
  • ONVIF T / S / G, CGI, SDK compliant
  • Compatible with Chrome, IE9 and Firefox browsers
  • Connections: 2 USB 2.0
  • Smart search with classification of people and vehicles
  • Server Access local network and Internet
  • Independent configurable video sensor per camera
  • Software and hardware watchdog
  • Watermark to preserve the integrity of the videos
  • Possibility of limiting user access to cameras in local and / or remote mode
  • Area masking, video loss and camera concealment alarm
  • Multilanguage display menu
  • Remote viewing, configuration and control via TCP / IP with client program and Internet Explorer browser (also compatible with Firefox and Chrome browsers)
  • Sending emails with attached photograph in alarm
  • Send to FTP scheduled or in alarm
  • Possibility of sending an alarm, and being connected to video surveillance receiver software
  • Viewing on iPhone and Android mobile phones
  • Possibility of fixed or dynamic IP through Dyndns service, NoIP, DDNS Evolution, etc.
  • Power supply: 12V DC, 1.5A
  • Consumption: <10W (without hard drives)
  • Operating temperature: -10 ° C ~ + 50 ° C
  • Relative humidity: 10% ~ 93%
  • Dimensions: 260 x 232.7 x 47.6 mm (desktop)
  • Weight: 810g (without HDD)
