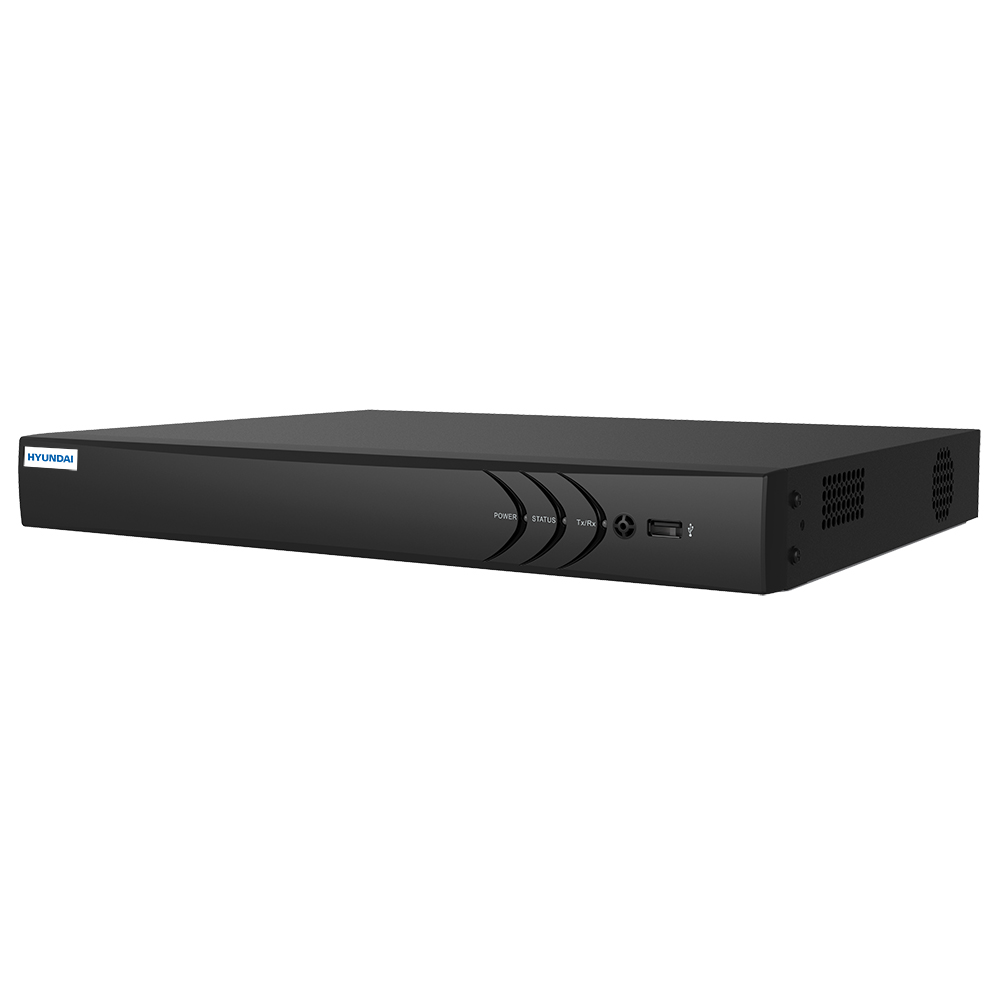

16 Channel 8MP HYUNDAI IP NVR with 16 PoE / PoE + HYU-754N

HYU-754N
  • specs

  • 16 IP channels up to 8MP

  • Video compression: H.265 +, H.265, H.264 + and H.264
  • Simultaneous HDMI (4K) and VGA (1080P) video outputs
  • 1 RCA input / 1 RCA audio output
  • Two-way audio via RCA input / output
  • Recording resolution: 4K / 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
  • Bandwidth: 160 Mbps incoming and 80 Mbps outgoing
  • Decoding capacity: 1 channel 8MO (25 ips), 5 channels 1080P (25 ips)
  • Supports various IVS (video analytics) events
  • Configurable special camera smart functions such as motion detection, line crossing, intrusion, heat map, ANPR and people counting
  • Playback of up to 16 channels
  • Internal capacity for 2 SATA HDDs up to 8TB (sold separately)
  • New user interface with a simpler user experience
  • Smart search / smart playback to improve playback efficiency
  • Self-adaptive Gigabit (10/100 / 1000Mbps) RJ45 network port
  • 16 self-adaptive PoE / PoE + (10 / 100Mbps) ports with a total power of 150W
  • Remote access through iPhone / iPad, Android devices
  • Multi browser compatibility: Chrome, Firefox, Safari, IE
  • P2P in the cloud, DDNS DEMES, Push and channel zero
  • Plug & Play connection with NEXTGEN IP cameras
  • Communication ports: 1 USB 2.0 port, 1 USB 3.0 port
  • Power supply: 100V ~ 240V AC (≤15W, not counting discs)
  • -10 ° C ~ + 55 ° C operating temperature
  • 10% ~ 90% relative humidity
  • Dimensions: 385 (W) 52 (H) x 315 mm
  • Weight: ≤2.6 kg
  • Desktop installation
