STOCK:

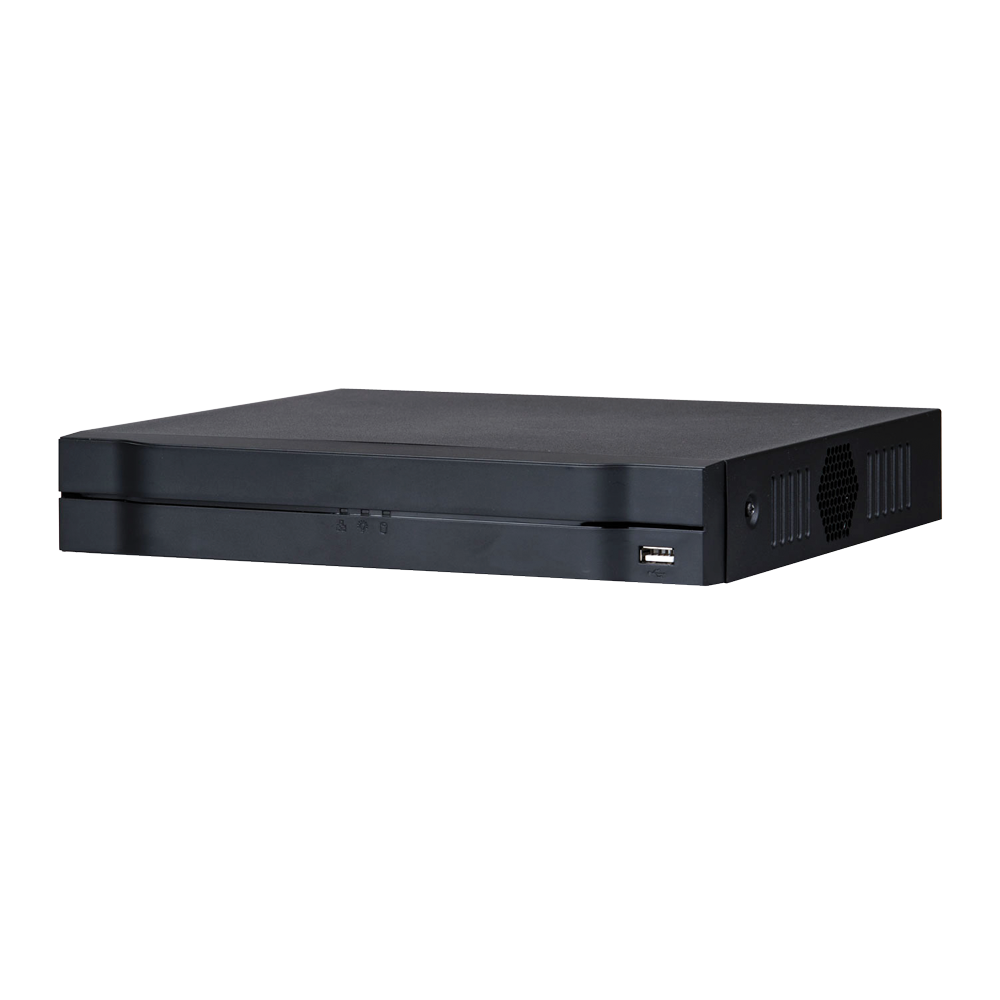

4 channel IP NVR 4K/8MP NVR304-8M-H1-P4

NVR304-8M-H1-P4
  • Features

  • 4 channel IP NVR with 4 port PoE/PoE+ switch
  • Dual Core processor
  • LINUX embedded OS
  • H.265/H.264
  • 4 IP camera inputs
  • Video outputs: VGA (1920x1080) and HDMI (3840x2160)
  • - 2 wya audio: 1 RCA in / 1 RCA out
  • Live display: 1 channel @ 8MP/4K (3840x2160) or 4 channels @ 1080P (1920x1080)
  • Output division: 1, 4
  • Display resolution: 4K/8MP (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720)
  • Resolución de grabación: 4K/8MP (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 720P (1280x720), etc.
  • Recording speed: 80 Mbps
  • Bitrate: 16 ~ 20480 Kbps
  • Playback: 4 channel @ 1080P (1 channel @ 8MP/4K)
  • Motion detection: 22x18 selectable grid, adjustable sensibility, video loss/masking detection
  • Storage: 1 SATA III (up to 6TB per disc, not included)
  • Network interface: RJ45 (10/100M)
  • Network protocols: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, filtro IP, DDNS, IP search
  • ONVIF 2.4
  • Remote access up to 128 users
  • Connections: 2 USB 2.0
  • Local network and internet server access
  • Independent motion detection configuration by camera
  • Compatible with 3D positioner function (compatible PTZ domes)
  • Software and hardware watchdog
  • Watermark
  • Limit user acces to cameras on local/remote mode
  • Masking areas, video loss/masking alarm
  • Multilanguage menu on screen
  • Display, configuration and remote control by TCP/IP with client programm and web browser (IE, Chrome, Firefox)
  • Email sended with attached picture
  • Programed FTP or alarmed sending
  • Display on iPhone and Android
  • Compatible with IDMSS, EVOPLUS and SMARTPSS
  • Power supply: 48V DC, 1,25A
  • NVR consumption: <5,3W (without discs)
  • PoE consumption: Up ot 25,5W per port, with max. of 50W
  • Working temperature: -10°C ~ +55°C
  • Storage temperature: -20°C ~ +70°C
  • RH: 0~90%
  • Dimensions: 260 x 224,9 x 47,6 mm (Desktop)
  • Weight: 800 g (without HDD)
