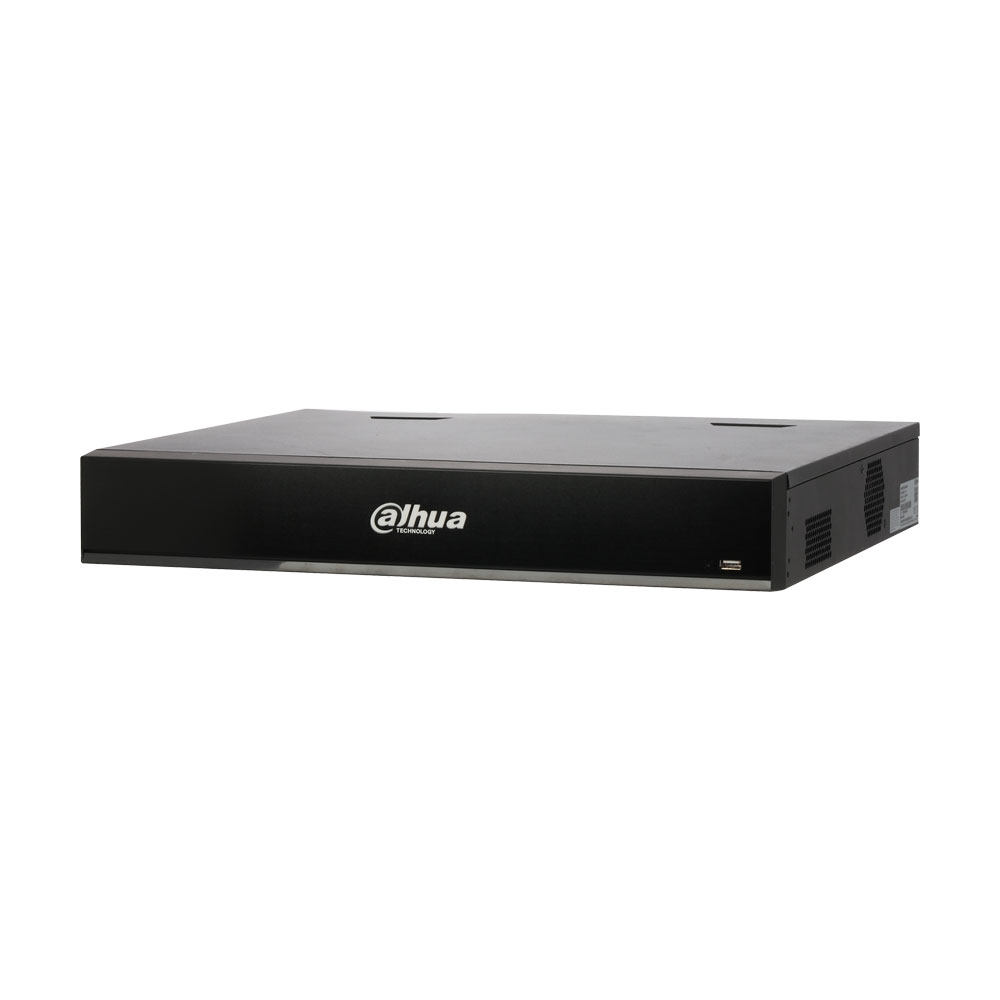

32 Channel 16MP IP NVR with 16 PoE + DAHUA-2915-FO

NVR5432-16P-I
  • Specifications

  • 32 IP channels up to 16MP
  • Video compression: Smart H.265 +, H.265, Smart H.264 +, H.264, MJPEG
  • 2 HDMI video outputs (HDMI2 4K) and 1 VGA output (1080P)
  • Primary display output division: 1, 4, 8, 9, 16, 25, 36
  • Secondary display output division: 1, 4, 8, 9, 16
  • 1 RCA input / 1 RCA audio output
  • Two-way audio via RCA input / output
  • Recording resolution: 16MP, 12MP, 4K / 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1
  • Bandwidth: 320 Mbps (160 Mbps with AI mode enabled)
  • Decoding capacity: 4 channels at 8MP (25 ips), 16 channels at 1080P (25 ips)
  • Manual, calendar, alarm, motion detection, and IVS recording modes
  • Alarm by video sensor, by privacy mask, by video loss, IP camera
  • Playback of up to 16 channels
  • 16 alarm inputs / 6 outputs
  • Internal capacity for 4 SATA III HDDs up to 10TB (sold separately)
  • ESATA port
  • New user interface with a simpler user experience
  • Perimeter protection of up to 16 channels with 10 IVS rules per channel
  • Face recognition of up to 4 channels of video stream
  • Processing of up to 22 facial images per second
  • Up to 20 facial databases with up to 10,000 images in total
  • Supports smart search by metadata
  • Supports ANR (automatic network replenishment technology): In case of network failure, images are recorded on the IP camera's SD card, which are transferred to the NVR once the network is restored
  • Software and hardware watchdog
  • Watermark to preserve the integrity of the videos
  • RJ45 Fast Ethernet network port (10/100 / 1000Mbps)
  • 16 PoE ports (IEEE802.3af / at, ports 1 to 8 support ePoE and EoC) with an output power of 25.5W per port and a total of 150W
  • Network protocols: HTTP, HTTPS, TCP / IP, IPv4 / IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (supports IP cameras Dahua IP, DVR, NVS, etc.), P2P
  • ONVIF 2.4, CGI and SDK compliant
  • Remote access from web browser (IE9, Chrome, Firefox) and iPhone, iPad (iDMSS) and Android (gDMSS) devices
  • Server Access local network and Internet
  • Possibility of limiting user access to cameras in local and / or remote mode
  • Can be remotely controlled by Joystick keyboard connected by TCP / IP
  • Sending emails with attached photograph in alarm
  • Send to FTP scheduled or in alarm
  • Possibility of sending alarm, and being connected to video surveillance receiver software
  • Possibility of fixed or dynamic IP through Dyndns service, NoIP, DDNS Evolution, etc.
  • Communication ports: 2 USB 3.0 ports, 1 USB 2.0 port, 1 RS485 port, 1 RS232 port
  • Power supply: 100V ~ 240V AC, 50 / 60Hz
  • Consumption: ≤21.1W (not counting discs)
  • Storage temperature 0 ° C ~ + 40 ° C
  • -10 ° C ~ + 55 ° C operating temperature
  • Dimensions: 440 (W) x 76 (H) x 411.1 mm
  • Weight: 5 kg
  • 1.5U desktop or rack installation
