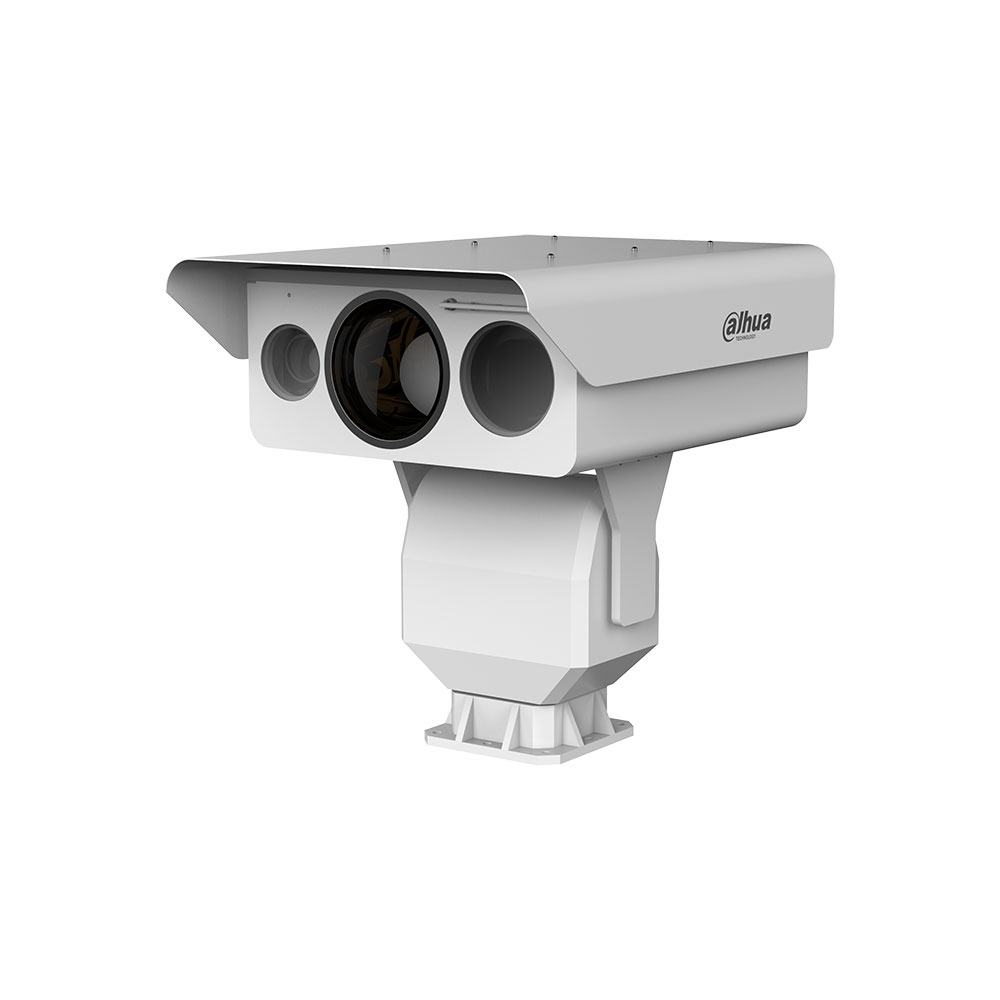

12 ° / sec Dahua thermal + visible motorized camera DAHUA-1858

TPC-PT8420C-BM100ZD110BL
  • Features

  • 400x300 Uncooled VOx Thermal Sensor Technology
  • Focus-free athermalized lens (thermal camera)
  • 1 / 1.9 "CMOS sensor, 2 megapixel (viewable camera)
  • 30X optical zoom
  • Fire detection and alarm
  • 100mm focal length (thermal camera)
  • 12 ° / s positioner speed, 360 ° horizontal positioner continuous
  • Up to 300 presets, 5 auto scans, 5 patterns
  • 2 alarm inputs / 2 outputs
  • MicroSD slot
  • Degree of protection IP66
  • Thermal camera
  • Uncooled VOx Microbolometer Sensor
  • Effective pixels: 400 x 300
  • Pixel size: 17 µm
  • Thermal sensitivity (NETD): <40mK
  • Spectrum range: 7 ~ 14 µm
  • Focal length (thermal): 100mm
  • Viewing Angle (Thermal): 3.9 ° (H), 2.9 ° (V)
  • Effective distance in people (1.8 m x 0.5 m):
  • Detection: 3000 meters
  • Reconnaissance: 750 meters
  • Identification: 380 meters
  • Effective distance in vehicles (2.3m x 2.3m):
  • Detection: 8800 meters
  • Reconnaissance: 2300 meters
  • Identification: 1200 meters
  • Automatic gain control
  • Brightness and sharpness adjustment
  • ROI
  • 3D noise reduction
  • 14 color palettes
  • Thermal Stream 1: 1280x1024, 720P (25 ips)
  • Thermal Stream 2: 640x512, 320x256 (25 ips)
  • Visible camera
  • 1 / 1.9 "Sony® CMOS Sensor, 2 Megapixel
  • Effective pixels: 1944 x 1092
  • Laser illumination of up to 1 km
  • Minimum illumination: 0.002 lux F1.5 (color) / 0.0005 lux F1.5 (B / W)
  • 30X Optical Zoom: 6 ~ 180mm
  • Viewing angle: 59 ° ~ 2.4 ° (H)
  • Automatic and manual focus control
  • 4X digital zoom (24 levels)
  • Removable mechanical filter
  • White balance: Auto, ATW, Indoor, Outdoor, Manual
  • Backlight compensation (BLC, HLC)
  • WDR
  • 3D-NR noise reduction
  • 4 ROI zones
  • 4-zone rectangular video sensor
  • 4 Rectangular Zone Privacy Mask
  • Defog
  • Mirror mode
  • Video compression H.264, MJPEG
  • Visible camera resolution: 1080P (1920x1080), 720P (1280x720), D1 (704x576)
  • Stream 1 visible: 1080P, 720P (25 ips)
  • Stream 2 visible: D1, CIF (25 ips)
  • IVS Detection: Line Crossing Detection, Intrusion Detection, Abandoned / Lost Objects
  • Advanced detection functions: Fire detection and alarm
  • Positioner
  • Horizontal positioner: 0 ° ~ 360 ° continuous
  • Vertical positioner: -60 ° ~ 45 °
  • Manual speed: 0.01 ° ~ 12 ° / sec. (H), 0.01 ° ~ 8 ° / sec. (V)
  • Preset speed: 0.01 ° ~ 12 ° / sec. (H), 0.01 ° ~ 8 ° / sec. (V)
  • 300 presets
  • DH-SD and Pelco-P / D protocols with automatic recognition
  • 5 patterns, 8 rounds, 5 Auto Scan, Auto Pan
  • General
  • G.711A, G.711Mu and AAC audio compression
  • 1 audio input / 1 output
  • BNC video output
  • 2 alarm inputs / 2 outputs
  • 1 RS485 port
  • Ethernet: RJ-45 (10/100 Base-T)
  • Network protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Compatible with Onvif Profile S / G, PSIA, CGI
  • Unicast / Multicast streaming method
  • Up to 10/20 users
  • Compatible with browsers> IE11, <Chrome45, <Firefox52
  • Management software Smart PSS, DSS
  • Compatible with Android and iOS mobile devices
  • MicroSD card slot up to 256GB (card not included)
  • Power supply: 100V ~ 300V AC
  • Consumption: 100W
  • Storage temperature -40 ° C ~ + 70 ° C
  • -35 ° C ~ + 65 ° C operating temperature
  • Relative humidity: 95%
  • Lightning-proof 6KV
  • Degree of protection IP66
  • Metal shell
  • Dimensions: 515 (W) x 616.7 (H) x 655 mm
  • Weight: 75 Kg
  • Includes power supply
  • Note: The effective distance values ​​shown are nominal values ​​and should be used as an estimate. Check with your sales representative for the recommended detection distances with our Vaelsys Perimeter System.

This product is discontinued
