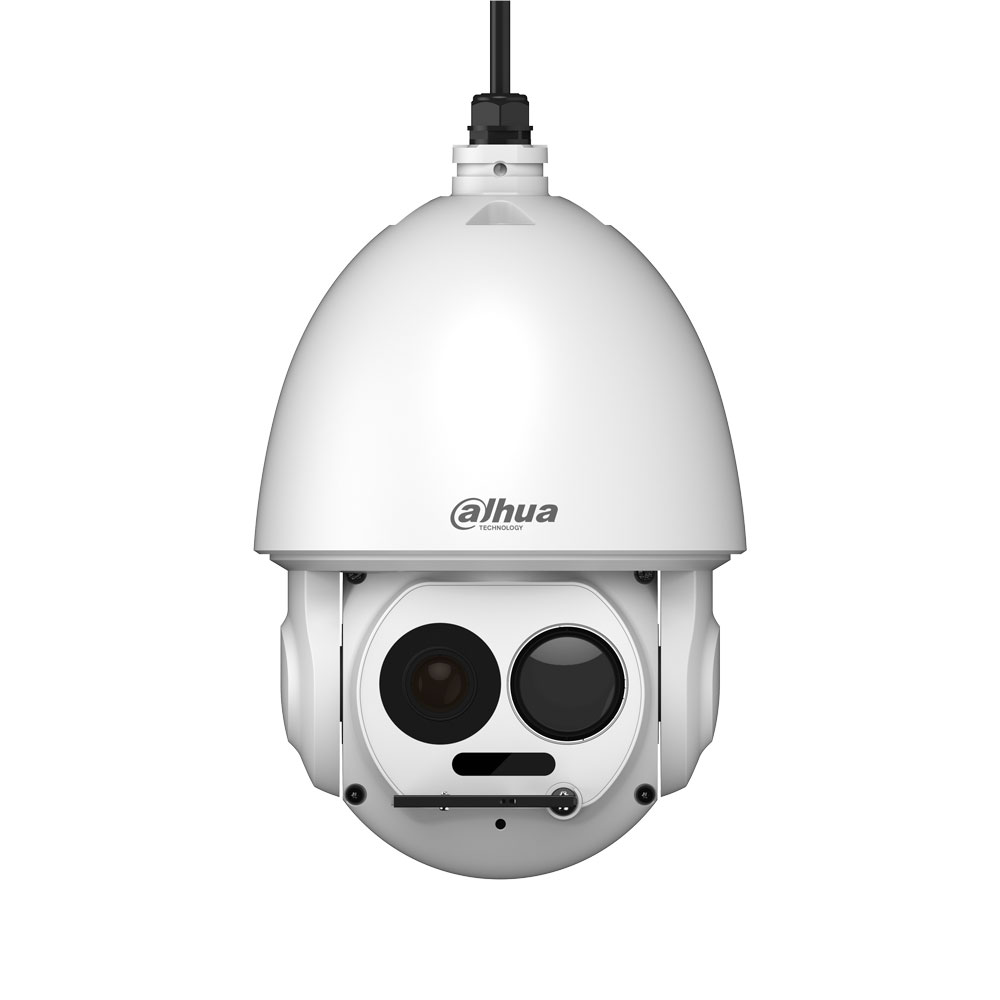

200 ° / sec Dahua thermal + visible motorized dome DAHUA-1862

TPC-SD8621-B50
  • Features

  • 640x512 Uncooled VOx Thermal Sensor Technology
  • Focus-free athermalized lens (thermal camera)
  • 1 / 2.8 "CMOS sensor, 2 megapixels (viewable camera)
  • 45X optical zoom
  • Fire detection and alarm
  • 50mm focal length (thermal camera)
  • Preset speed up to 240 ° / s, continuous 360 ° horizontal positioner
  • Up to 300 presets, 5 auto scans, 5 patterns
  • 7 alarm inputs / 2 outputs
  • MicroSD slot
  • Degree of protection IP66
  • Thermal camera
  • Uncooled VOx Microbolometer Sensor
  • Effective pixels: 640 x 512
  • Pixel size: 17 µm
  • Thermal sensitivity (NETD): <40mK
  • Spectrum range: 8 ~ 14 µm
  • Focal length (thermal): 50mm
  • Viewing Angle (Thermal): 12.4 ° (H), 9.9 ° (V)
  • Effective distance in people (1.8 m x 0.5 m):
  • Detection: 1471 meters
  • Reconnaissance: 378 meters
  • Identification: 189 meters
  • Effective distance in vehicles (4m x 1.4m):
  • Detection: 3268 meters
  • Reconnaissance: 840 meters
  • Identification: 420 meters
  • Automatic gain control
  • Brightness and sharpness adjustment
  • ROI
  • 3D noise reduction
  • 18 color palettes
  • Thermal Stream 1: 1280x1024, 720P, 640x512 (25 ips)
  • Thermal Stream 2: 640x512, 320x256 (25 ips)
  • Visible camera
  • 1 / 2.8 "CMOS sensor, 2 megapixel
  • Effective pixels: 1920 x 1080
  • 100 meter infrared illumination
  • Minimum illumination: 0.005 lux F1.6 (color) / 0.0005 lux F1.6 (B / W
  • 45X Optical Zoom: 3.95 ~ 177.7mm
  • Viewing angle: 70.3 ° (H), 1.8 ° (V)
  • Automatic and manual focus control
  • 4X digital zoom (19 levels)
  • Removable mechanical filter
  • White balance: Auto, ATW, Indoor, Outdoor, Manual
  • Backlight compensation (BLC, HLC)
  • Digital WDR
  • 2D-NR and 3D-NR noise reduction
  • Digital image stabilizer
  • 4 ROI zones
  • 4-zone rectangular video sensor
  • 4 Rectangular Zone Privacy Mask
  • Defog
  • Mirror mode
  • Video compression H.265, H.264, MJPEG
  • Visible camera resolution: 1080P (1920x1080), 720P (1280x720), D1 (704x576)
  • Stream 1 visible: 1080P, 720P, D1 (25 ips)
  • Stream 2 visible: D1, CIF (25 ips)
  • IVS detection: Line crossing detection, intrusion detection
  • Advanced detection functions: Fire and alarm detection, hot / cold spot tracking, people / vehicle classification, automatic tracking
  • Positioner
  • Horizontal positioner: 0 ° ~ 360 ° continuous
  • Vertical positioner: -10 ° ~ 90 °
  • Manual speed: 0.1 ° ~ 200 ° / sec. (H), 0.1 ° ~ 120 ° / sec. (V)
  • Preset speed: 0.1 ° ~ 240 ° / sec. (H), 0.1 ° ~ 200 ° / sec. (V)
  • 300 presets
  • DH-SD and Pelco-P / D protocols with automatic recognition
  • 5 patterns, 8 rounds, 5 Auto Scan, Auto Pan
  • general
  • G.711A, G.711Mu, AAC and PCM audio compression
  • 1 audio input / 1 output
  • BNC video output
  • 7 alarm inputs / 2 outputs
  • 1 RS485 port
  • Ethernet: RJ-45 (10/100 Base-T)
  • Network protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Compatible with Onvif Profile S / G, API
  • Unicast / Multicast streaming method
  • Up to 10/20 users
  • Compatible with browsers> IE8, <Chrome42, <Firefox42
  • Management software Smart PSS, DSS
  • Compatible with Android and iOS mobile devices
  • MicroSD card slot up to 256GB (card not included)
  • Power supply: 24V AC, 3A (± 15%)
  • Consumption: 17W ~ 38W
  • Storage temperature -40 ° C ~ + 70 ° C
  • -40 ° C ~ + 60 ° C operating temperature
  • Relative humidity: <95%
  • Lightning-proof 6KV
  • Degree of protection IP66
  • Metal shell
  • Dimensions: Ø240 x 382 mm
  • Weight: 6.8 Kg
  • Includes wall bracket and power supply
  • Note: The effective distance values ​​shown are nominal values ​​and should be used as an estimate. Check with your sales representative for the recommended detection distances with our Vaelsys Perimeter System.

This product is discontinued
