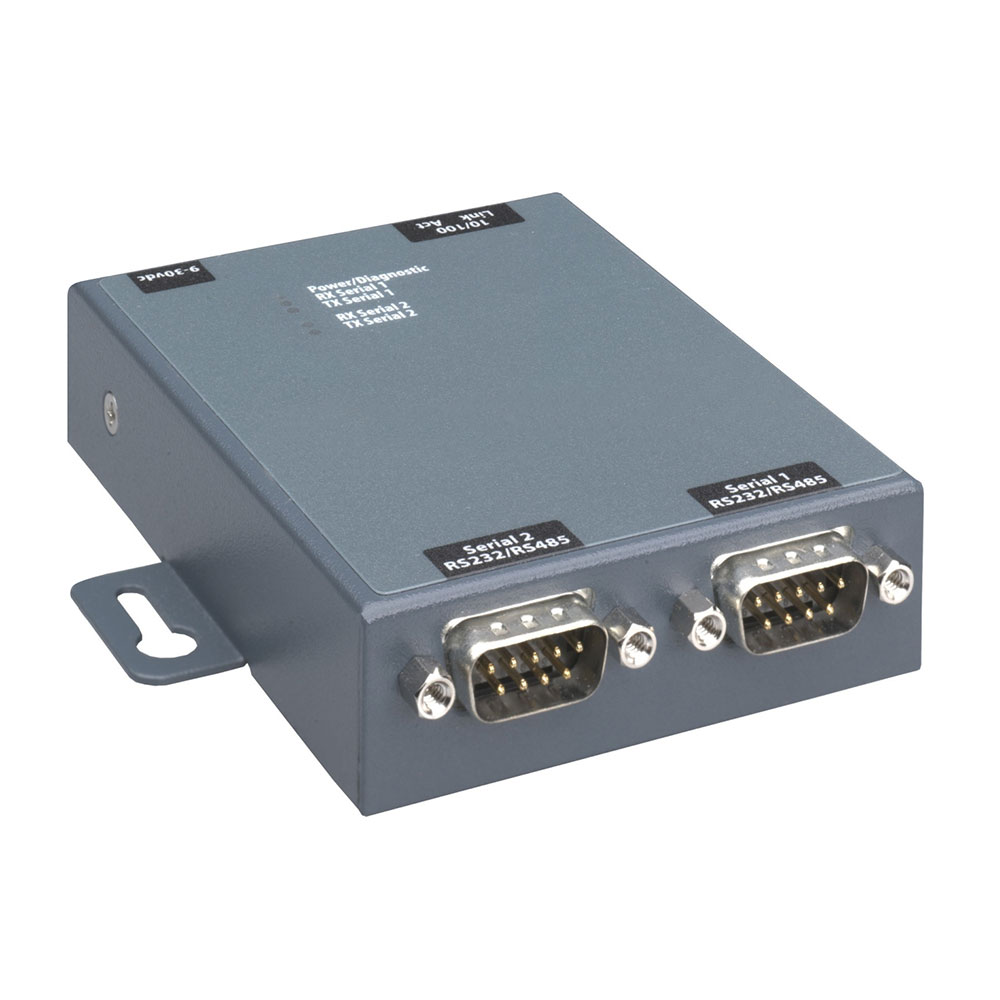

SAM-3502 SAM-3502
  • Features

  • Device network connection in minutes
  • Access, monitoring and device control via Ethernet
  • Replace dedicated PC or modem with fast ethernet network devices
  • Fast&easy configuration via HTTP, DHCP, Telnet, Serial or Lantronix DeviceInstaller
  • utility
  • 2x DTE DB9M serial port, (RS232, RS422 and RS485 supported)
  • RoHS and WEE
  • Truport Com port technology control
  • Specs
  • Server device
  • Installed processors: 1x48 MHz
  • RAM: 256 KB SRAM
  • Flash: 2 MB
  • Protocol: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
  • Network protocols: TCP/IP, UDP/IP, ICMP/IP
  • Status indicators: Link activity, duplex mode power port, state
  • Features: Flow control, DHCP support, ARP support, manageable, half duplex mode, full duplex mode
  • Communication ports: 2 x RS-232/422/485 - DB-9, 1 x 100Base-TX - RJ-45
  • Compliant Standards: FCC Clase B , FCC Clase A, CSA, UL, TUV, VCCI, CISPR 22 clase A, cUL, EN 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55022 class A, ICES-003 class A, RoHS, WEEE
  • Power supply: 120V AC / 230V AC
  • Working consumption: 1.8W
  • Working temperature: 0ºC ~ +60ºC
  • Dimensions: 72 x 23 x 95 mm
  • Weight: 400 g
