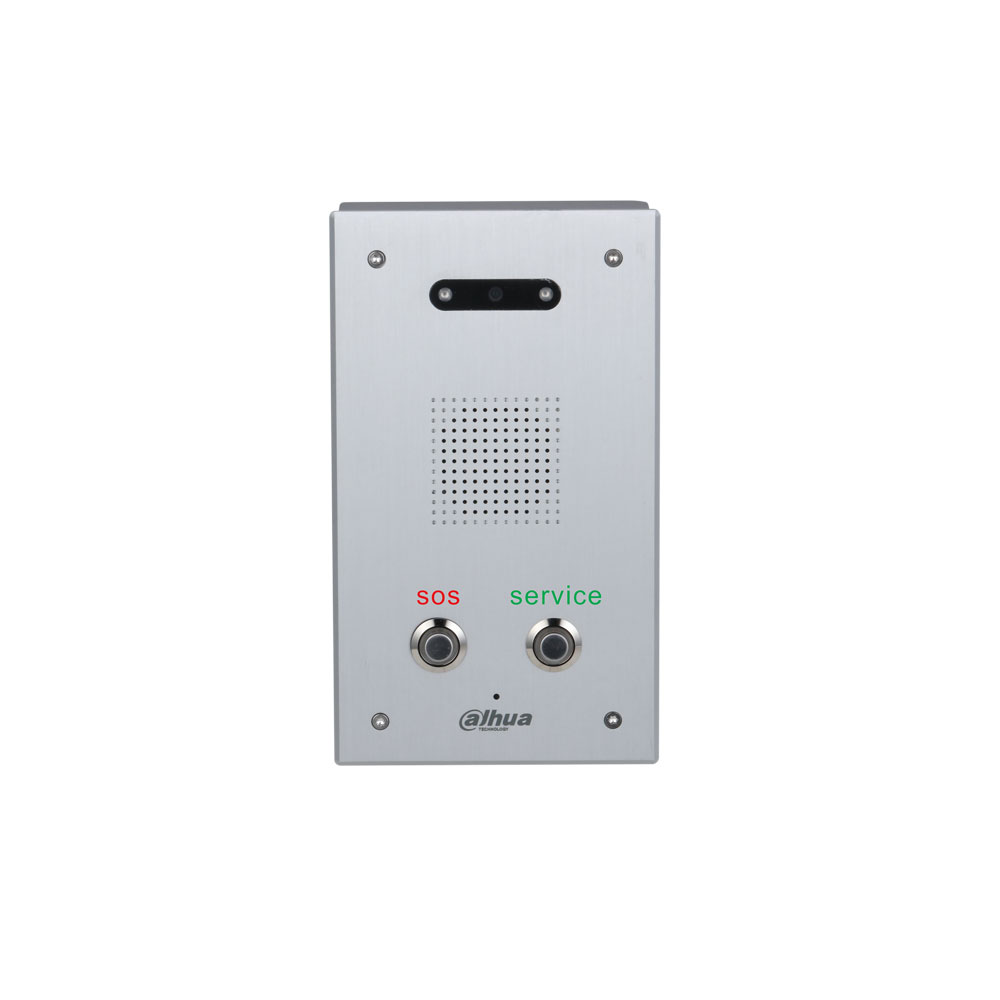

Dahua Emergency Call Terminal DAHUA-2635

VTA2302A
  • Specs

  • Embedded Linux operating system

  • Mechanical buttons
  • Onvif interoperability
  • Network protocols SIP, RTSP, RTP, TCO, UDP
  • 1 / 2.7 "2 megapixel CMOS sensor
  • Viewing angle of 91 ° (H), 47 ° (V), 111 ° (D)
  • H.264 video compression
  • Video resolution of 720P (main stream) and 1080P (secondary stream)
  • G.711u audio compression
  • Incorporates speaker
  • Two-way voice call
  • Echo suppression and digital noise reduction
  • Aluminum housing material
  • Fully digital communication mode
  • Web configuration
  • 1 RS485 port
  • 2 alarm inputs / 2 outputs
  • 12V DC, 100 mA power output
  • Self-adaptive 10 / 100Mbps RJ45 network port
  • Power supply: 12V DC, 2A, standard PoE (36V ~ 57V DC, 0.35A)
  • Consumption: 2W (standby), 6W (operating)
  • -30 ° C ~ + 60 ° C operating temperature
  • Relative humidity: 10% ~ 90% (non-condensing)
  • Surface mount
  • Dimensions: 105 (W) x 180 (H) x 46.7mm
  • Weight: 1.2 kg
