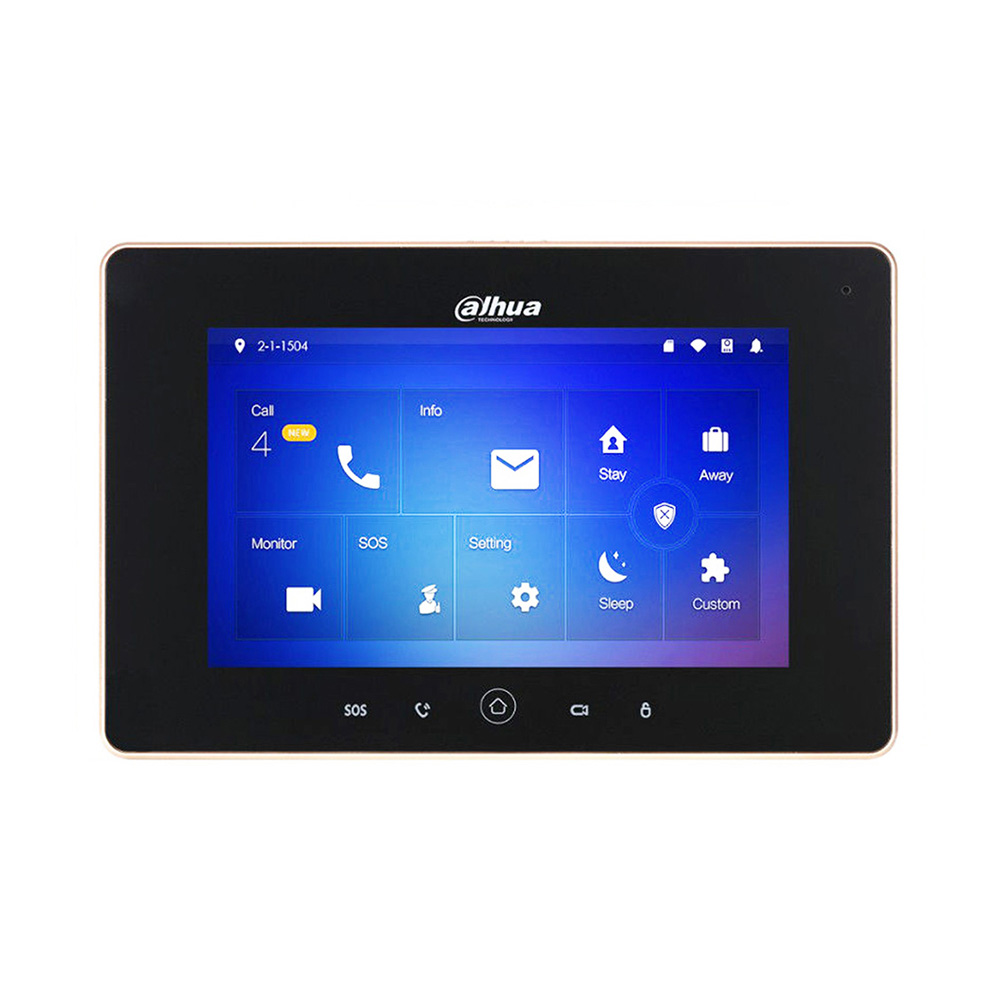

DAHUA-1388N VTH5221D-C-S1
  • Features

  • 7" TFT capacitive touchscreen (1024x600)
  • IP videosurveillance
  • Wired and wireless alarm integration (433MHz) of 6 channels
  • MicroSD card slot up to 32GB (card is not included)
  • Recording and image capture (SD card required)
  • Specs

  • Linux embedded OS
  • Embedded microprocessor
  • 7” LCD color display (1024x600)
  • Capacitive touchscreen
  • 1/4" CMOS sensor, 1 MP
  • H.264
  • 2,2 mm lens
  • Viewing angle: 105°(H), 125°(D)
  • G.711
  • 2 way audio
  • Omnidirectional microphone and speaker incorporated
  • Operative via touch buttons
  • MicroSD card slot up to 32GB (card is not included)
  • WiFi, IEEE802.11b/g/n
  • Network interface: Ethernet 10M/100Mbps auto-adaptive
  • TCP/IP network protocol
  • 1x RS485
  • 6 wired zones on board
  • 6 via radio zones
  • 1 alarm output
  • Power supply 12V DC
  • Consumption: ≤1W (standby), ≤7W (working)
  • PoE supported (802.3af)
  • Working temperature: -10°C ~ +55°C
  • RH: 10% ~ 90%
  • Not suitable for outdoors
  • Dimensions: 215 (W) x 140 (H) x 21 mm
  • Weight: 800 g
  • Surface installation
