STOCK:

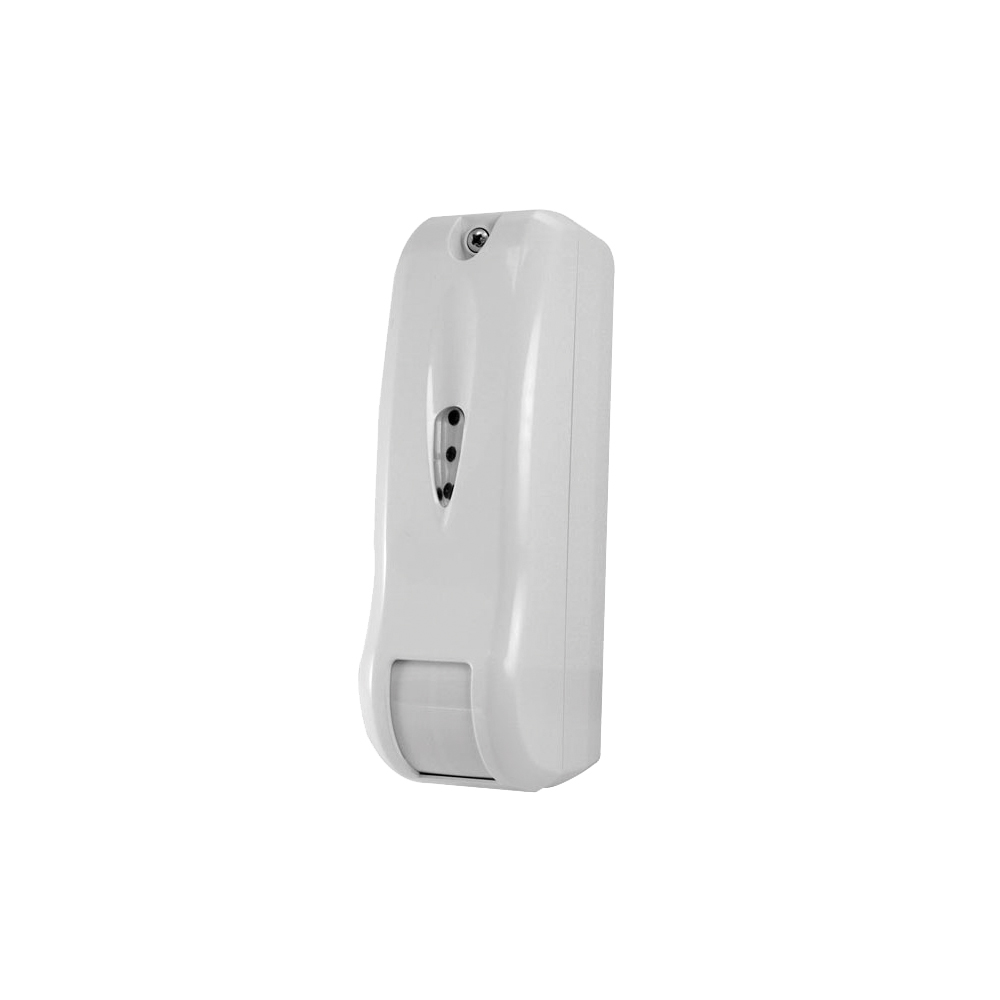

Dual technology curtain detector for outdoor use in shutters VESTA-063

9456
  • Features

    • Outdoor double technology miniaturized detector, specially indicated to be installed in shutters
    • VESTA F1 compatible included wireless transceiver
    • Thanks to its low consumption, it can be powered by the transmitter battery or a 3.6V lithium battery
    • Creates a curtain barrier of approximately 7.5 ° and has an adjustable coverage of up to 12 meters
    • In addition, the electronics are covered with resin capable of guaranteeing its correct operation in any climatic condition
    • Specs

      • Coverage: 12 meters, 7.5 °
      • Microwave frequency: 24 GHz
      • Sensitivity setting: 1 MW Trimmer / 1 IR Trimmer
      • Working mode
      • Alarm relay output
      • Tamper
      • Power supply: 3V ~ 10V DC
      • Consumption: 8µA
      • Protection degree IP54
      • Dimensions: 37 (W) x 125 (H) x 40mm
