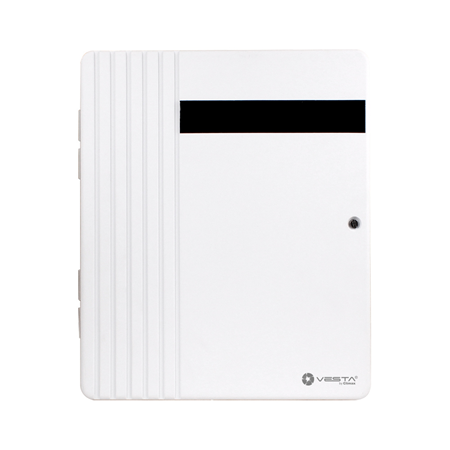

HYBRID 4G + IP alarm system VESTA
VESTA-112
Hybrid Panel-1-4G-AC110/240V

KEY FEATURES
- VESTA hybrid control panel up to 320 zones
- Compatible with all RF 868-F1 devices (2 km in open field)
- 4G LTE connectivity
- IP communications (Ethernet)
- Amplified fast connection for external GPRS antenna (optional compatible antenna: QAR-266A)
- 16 wired zones on board, expandable via expanders
- Up to 320 zones (wired / wireless)
- Up to 8 areas
- Up to 240 users
- 1 PGM output
- Up to 4 VESTA-114 or VESTA-125 keypads
- Configuration via smarthomesec APP or via VESTA-114 or VESTA-125 keypad
- Acid battery not included, DEM-3 recommended
- The VESTA hybrid control panel is compatible with Google Home and Alexa
- USB port available to add WiFi, ZigBee or Z-Wave connectivity (see related products)
- EN50131 Grade 3
