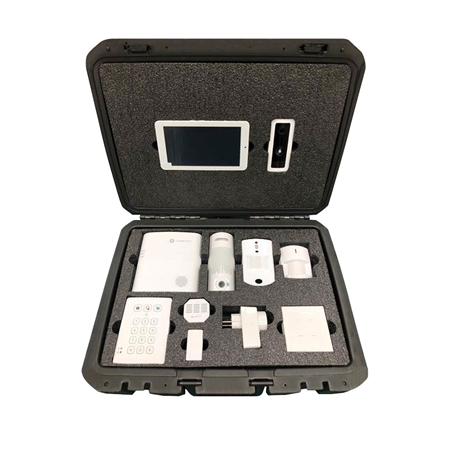

VESTA DEMO KIT IN CASE
VESTA-215
DEMO CASE

KEY FEATURES
- VESTA briefcase demo kit consisting of :
- 1x HSGW-G4: IP Ethernet + 4G control panel for home security with 160 zones via radio; Grade 2
- 1x VESTA-012 (KPT-39N-F1): Keypad with proximity reader
- 1x VESTA-025 (TSP-3): 7 "touch radio keypad
- 1x VESTA-109 (VDP-3): Video intercom with 2MP camera and bidirectional audio
- 1x VESTA-024 (VST-862EX-F1): Detector PIR cam via radio for outdoor use; Grade 2
- 1x VESTA-211 (VST-892-IL ALK): PIRCAM detector via radio antimasking anti-pets; Grade 2
- 1x VESTA-009 (IR-29SL-F1): PIR detector via radio; Grade 2
- 1x VESTA-013 (MDC-3-F1): Magnetic contact via radio; Grade 2
- 1x VESTA-106 (PRM2-ZW): Relay switch for power meter
- 1x VESTA-042 (PSM-29- ZW): Switch for remote activation / deactivation of devices with power meter
- 1x VESTA-043 (WSS-4E-ZW): Programmable stage switch
- VESTA's radio control panel is compatible with Google Home and Alexa
RELATED PRODUCTS

- PIR detector via radio VESTA
- 12 meter coverage, 110 °
- 2 levels of sensitivity
- Includes corner ball joint
- Works with 1 CR123A 3V battery
- 5 year battery life
- EN50131 Grade 2, Environmental class Ⅱ

PIR detector via radio VESTA. 12 meter coverage, 110 °. 2 levels of sensitivity. Includes corner ball joint. Works with 1 CR123A 3V battery. 5 year battery life. EN50131 Grade 2, Environmental class Ⅱ

- VESTA switch / power meter
- Allows remote devices to be activated / deactivated through the web or app
- Allows scenes for automation
- It incorporates a power and consumption meter
- Compatible with third-party Z-Wave devices

VESTA switch / power meter. Allows remote devices to be activated / deactivated through the web or app. Allows scenes for automation. It incorporates a power and consumption meter. Compatible with third-party Z-Wave devices

- VESTA programmable stage switch
- Four stage conditions
- Expand your home automation options
- Bidirectional communication
- It works with 2 3V AA alkaline batteries
- 2 year battery life

VESTA programmable stage switch. Four stage conditions. Expand your home automation options. Bidirectional communication. It works with 2 3V AA alkaline batteries. 2 year battery life

- VESTA outdoor radio PIR cam detector
- 10 meter, 90 ° coverage
- Two levels of sensitivity
- Camera: 640x480 @ 3ips, 320x240 @ 3 / 6ips
- 102 ° wide angle lens
- IR lighting of 7 meters
- Anti-pets up to 27 kg
- Tamper proof
- It works with 4 L91 1.5V lithium batteries
- 5 year battery life

VESTA outdoor radio PIR cam detector. 10 meter, 90 ° coverage. Two levels of sensitivity. Camera: 640x480 @ 3ips, 320x240 @ 3 / 6ips. 102 ° wide angle lens. IR lighting of 7 meters. Anti-pets up to 27 kg. Tamper proof. It works with 4 L91 1.5V lithium batteries. 5 year battery life

- VESTA radio magnetic contact
- It allows the creation of security and home automation scenes
- Tamper proof
- Powered by 1 3V CR2450 lithium battery
- 8 year battery life

VESTA radio magnetic contact. It allows the creation of security and home automation scenes. Tamper proof. Powered by 1 3V CR2450 lithium battery. 8 year battery life

- VESTA radio keyboard with proximity reader
- Panic, fire and medical emergency keys
- RFID and NFC reader
- Powered by 1 3V CR123 lithium battery
- 6 year battery life
- Includes 2 chiclet proximity tags
- Complies with UL1023

VESTA radio keyboard with proximity reader. Panic, fire and medical emergency keys. RFID and NFC reader. Powered by 1 3V CR123 lithium battery. 6 year battery life. Includes 2 chiclet proximity tags. Complies with UL1023

- 7 "VESTA keyboard via touch radio
- 2MP camera and talk-listen
- WiFi 802.11b / g / n, 2.4GHz
- Home automation capabilities
- Powered by USB 5V DC
- Backup battery 3.7V

7 "VESTA keyboard via touch radio. 2MP camera and talk-listen. WiFi 802.11b / g / n, 2.4GHz. Home automation capabilities. Powered by USB 5V DC. Backup battery 3.7V

- Relay switch for power meter
- Remotely turn on / off the appliance
- Built-in power meter to measure and report energy consumption history during the day / week / month
- It works like a Z-Wave repeater
- Allows relay trigger events to be integrated into other home automation activities, scenes, or schedules
- Connects directly to power cord in junction box, or ceiling / wall outlets
- Compatible with Z-Wave systems from other manufacturers
- Regular monitoring signals to verify the integrity of the system
- Suitable for residential and commercial premises

Relay switch for power meter. Remotely turn on / off the appliance. Built-in power meter to measure and report energy consumption history during the day / week / month. It works like a Z-Wave repeater. Allows relay trigger events to be integrated into other home automation activities, scenes, or schedules. Connects directly to power cord in junction box, or ceiling / wall outlets. Compatible with Z-Wave systems from other manufacturers. Regular monitoring signals to verify the integrity of the system. Suitable for residential and commercial premises

- VESTA video intercom
- Built-in motion sensor to detect irregular movements or presence
- 1920x1080 image resolution
- Built-in IR LEDs for night vision
- Wide angle lens up to 174 °
- The built-in speaker and microphone provide two-way voice
- Infrared motion detection range: 5 meters at 105 °
- Small and slim design to easily fit the door frame
- Replace existing doorbell without requiring special tools
- Ideal for residential and commercial premises
- IPX4 protection

VESTA video intercom. Built-in motion sensor to detect irregular movements or presence. 1920x1080 image resolution. Built-in IR LEDs for night vision. Wide angle lens up to 174 °. The built-in speaker and microphone provide two-way voice. Infrared motion detection range: 5 meters at 105 °. Small and slim design to easily fit the door frame. Replace existing doorbell without requiring special tools. Ideal for residential and commercial premises. IPX4 protection

- PIRCAM Vesta detector for interior
- Detection range of 10 meters, 90 °
- Advanced dynamic speed adjustment algorithms to maintain image transfer rate based on signal quality
- Installation height of 2.3 ~ 2.5 meters
- Anti-pets up to 20 kg / 50 cm
- Detection without blind spots
- Remotely adjustable sensitivity
- Three alarm image processing options: VGA one color (640x480), QVGA three color (320x240), QVGA six color (320x240)
- Image delivery on demand
- Antimasking function
- Night illumination capacity using infrared light, up to 7 meters range
- F1 technology accelerates the transmission speed and increases the communication range
- Periodic supervisory signals
- Protection against manipulations
- Low battery detection
- Suitable for security and home automation
- Compatible with Climax F1 gateways / control panels and the VESTA-030 repeater (RP-29-F1).

PIRCAM Vesta detector for interior. Detection range of 10 meters, 90 °. Advanced dynamic speed adjustment algorithms to maintain image transfer rate based on signal quality. Installation height of 2.3 ~ 2.5 meters. Anti-pets up to 20 kg / 50 cm. Detection without blind spots. Remotely adjustable sensitivity. Three alarm image processing options: VGA one color (640x480), QVGA three color (320x240), QVGA six color (320x240). Image delivery on demand. Antimasking function. Night illumination capacity using infrared light, up to 7 meters range. F1 technology accelerates the transmission speed and increases the communication range. Periodic supervisory signals. Protection against manipulations. Low battery detection. Suitable for security and home automation. Compatible with Climax F1 gateways / control panels and the VESTA-030 repeater (RP-29-F1).

- VESTA demo kit briefcase <b> empty </b>
- Empty case corresponding to the VESTA-215 kit
- It has space to locate :
- 1x HSGW-G4: Central IP Ethernet + 4G security for the home of 160 zones via radio
- 1x VESTA-012 (KPT-39N-F1): Keypad with proximity reader
- 1x VESTA-025 (TSP-3): 7 "touch radio keypad
- 1x VESTA-109 (VDP-3): Video intercom with 2MP camera and bidirectional audio
- 1x VESTA-024 (VST-862EX-F1): Detector PIR cam via radio outside
- 1x VESTA-008 (VST-862-F1): PIRCAM detector via radio
- 1x VESTA-009 (IR-29SL-F1): PIR detector via radio
- 1x VESTA-013 (MDC-3- F1): Magnetic contact via radio
- 1x VESTA-106 (PRM2-ZW): Relay switch for power meter
- 1x VESTA-042 (PSM-29-ZW): Switch for remote activation / deactivation of devices with power meter
- 1x VESTA-043 (WSS-4E-ZW): Programmable stage switch

VESTA demo kit briefcase empty . Empty case corresponding to the VESTA-215 kit. It has space to locate :. 1x HSGW-G4: Central IP Ethernet + 4G security for the home of 160 zones via radio. 1x VESTA-012 (KPT-39N-F1): Keypad with proximity reader. 1x VESTA-025 (TSP-3): 7 "touch radio keypad. 1x VESTA-109 (VDP-3): Video intercom with 2MP camera and bidirectional audio. 1x VESTA-024 (VST-862EX-F1): Detector PIR cam via radio outside. 1x VESTA-008 (VST-862-F1): PIRCAM detector via radio. 1x VESTA-009 (IR-29SL-F1): PIR detector via radio. 1x VESTA-013 (MDC-3- F1): Magnetic contact via radio. 1x VESTA-106 (PRM2-ZW): Relay switch for power meter. 1x VESTA-042 (PSM-29-ZW): Switch for remote activation / deactivation of devices with power meter . 1x VESTA-043 (WSS-4E-ZW): Programmable stage switch
