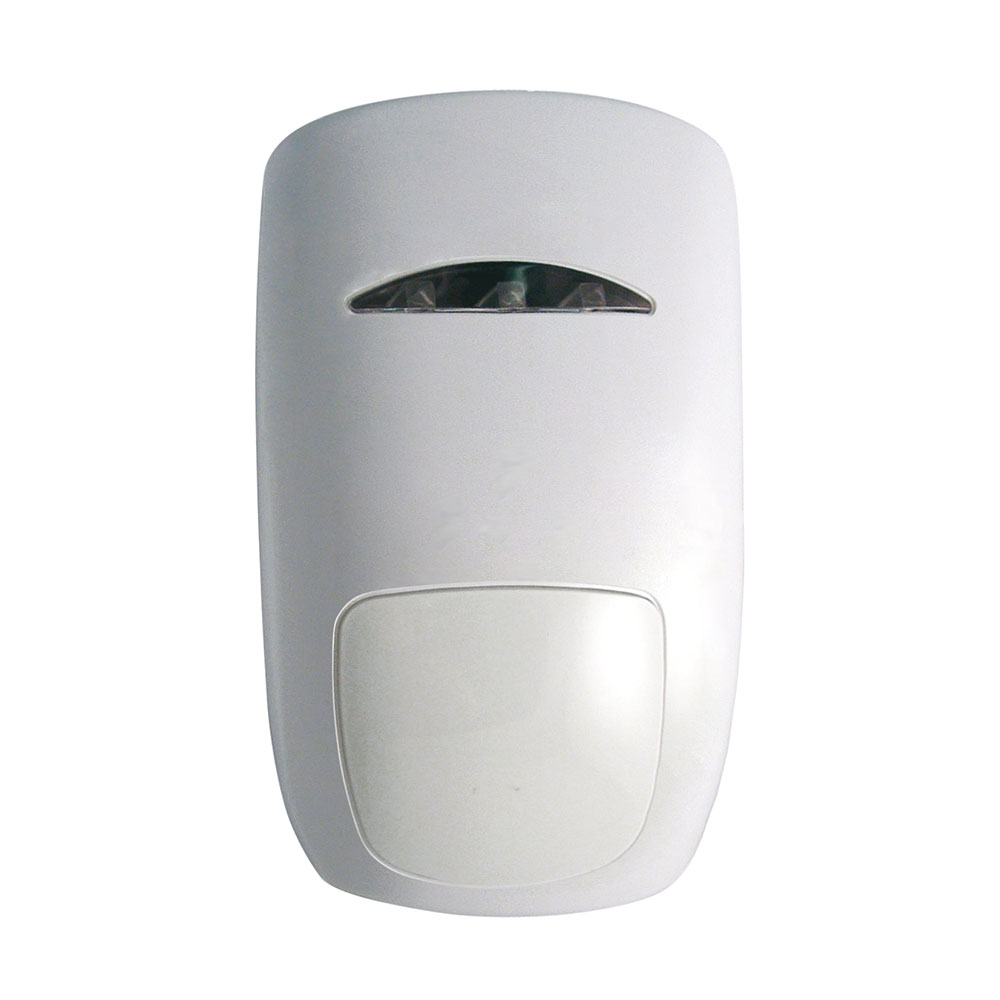

PIR QUAD Volumetric Performance Line Detector with active infrared antimasking GUAR-24

PQ15AM
  • Passive digital volumetric infrared detector with QUAD sensor
  • Coverage of 15 meters, 90 °
  • Microprocessor-based design with signal processing algorithm, for better detection and greater immunity to false alarms
  • Advanced infrared anti-masking system for high security applications
  • Four detection modes, including pulse counter
  • Special mirror for zero angle detection
  • Horizontal adjustment
  • Varifocal optics, which does not require adjustment and optimizes the detection area
  • Different values ​​of end-of-line resistors for easy installation
  • Test and remote control
  • Adjustable PIR coverage of 10 ~ 15 meters
  • Flexible installation height from 2.1 to 2.5 meters
  • Solid state relays
  • Alarm memory
  • Tamper opening and wall
  • Supervision of supply voltage and automatic test
  • 9V ~ 16V DC power
  • 12 ~ 17 mA consumption
  • Working temperature of -10 ° C ~ + 55 ° C
  • Dimensions: 110 x 66 x 42 mm
  • Weight: 115 g
  • 5 year warranty.
  • Certificate EN50131-2-2 of Grade 3
