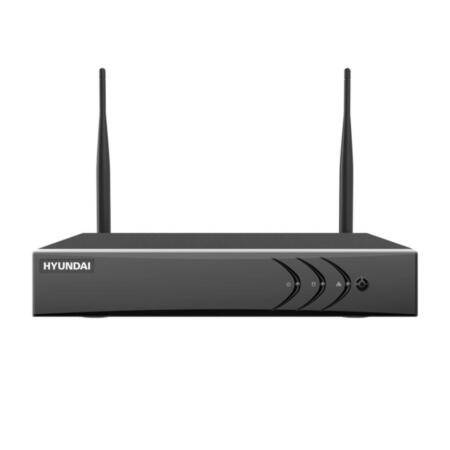

4-channel WiFi IP NVR
HYU-707
NVR3104-WIFI
Features
- Up to 4 IP cameras can be connected
- 50 Mbps incoming bandwidth
- Recording up to 4 megapixels
- H.265 + / H.265 / H.264 + / H.264 compression
- Connectable with third-party IP cameras
- VGA and HDMI outputs with a resolution of up to 1920x1080
- Supports playback of 1 channel at 4 megapixels or 2 channels at 1080P
- Synchronized playback of up to 4 channels
- Supports intrusion detection and line crossing
- Smart search
- Capacity for 1 HDD up to 6TB
- RJ45 100Mbps network interface
- It incorporates WiFi
- Up to 16 devices (including mobile and portable) can be connected via WiFi
- The external dual antenna design offers a more powerful and stable signal
Specifications
- 4-channel IP NVR format H.265 + / H.265 / H.264 + / H.264
- 4 IP camera inputs
- Incoming bandwidth: 50 Mbps
- Outgoing Bandwidth: 40 Mbps
- VGA (1080P) and HDMI (1080P) video output
- RCA audio output
- Recording resolution: 4MP, 3MP, 1080P, 1.3MP, 720P
- 4-channel synchronized playback
- Capacity of 1 channel 4MP at 25 ips or 2 channels 1080P at 25 ips
- Capacity for 1 HDD up to 6TB (HDD not included)
- 2x2 MIMO WiFi antenna
- IEEE 802.11b / g / n WiFi standard
- 2.4GHz wireless frequency
- 144 Mbps wireless transmission
- RJ45 (10 / 100M) Ethernet network interface auto-adaptive
- Connections: 2 USB 2.0
- Power: 12V DC
- Consumption: ≤12W (without hard disk)
- Operating temperature: -10 ° C ~ + 55 ° C
- Relative humidity: 10 ~ 90%
- Dimensions: 246 x 246 x 48 mm (1U)
- Weight: ≤1 kg
