IPC-B38-A180-PV | Panoramic IP camera 8MP Smart Dual Light Active Deterrence Magic Color Ultra AI outdoor IP camera
IPC-B38-A180-PVIPC-B38-A180-PVPanoramic IP camera 8MP Smart Dual Light Active Deterrence Magic Color Ultra AI outdoor IP camera
IPC-B38-A180-PV
IPC-B38-A180-PV_B
IPC-B38-A180-PV_C

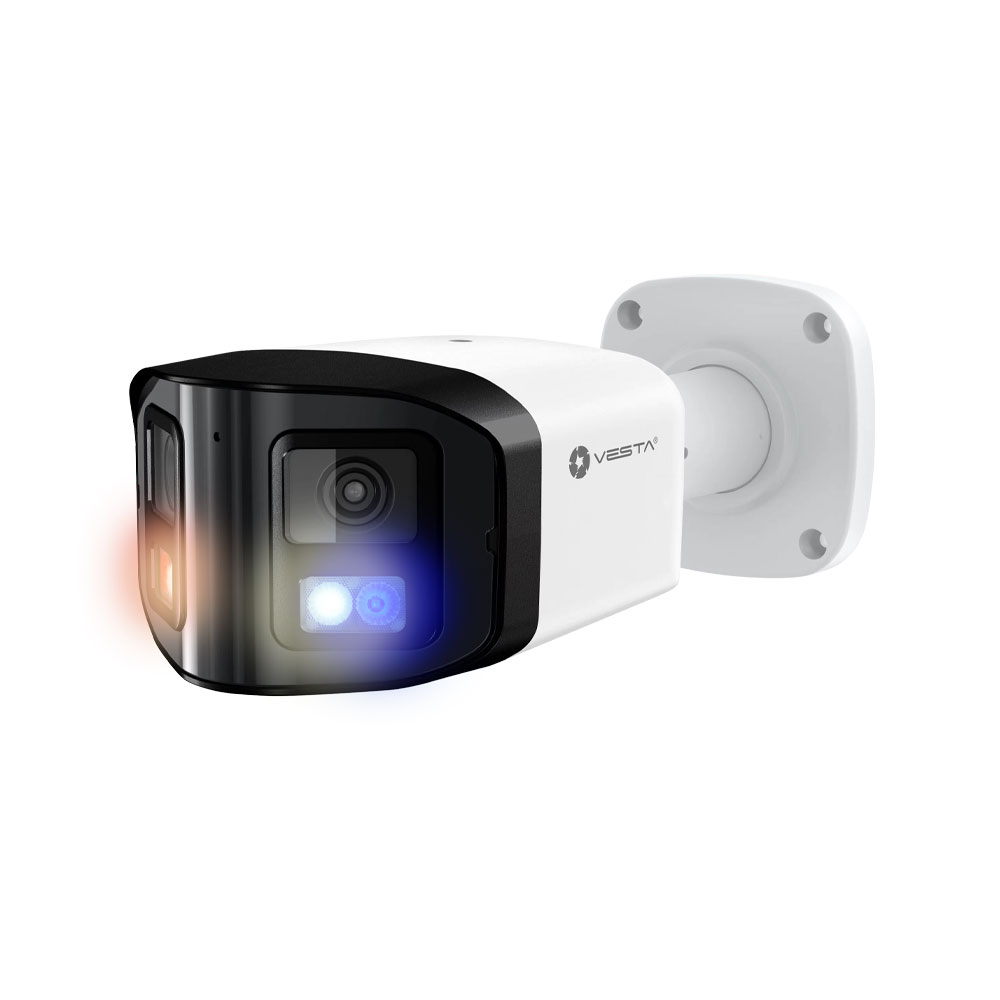

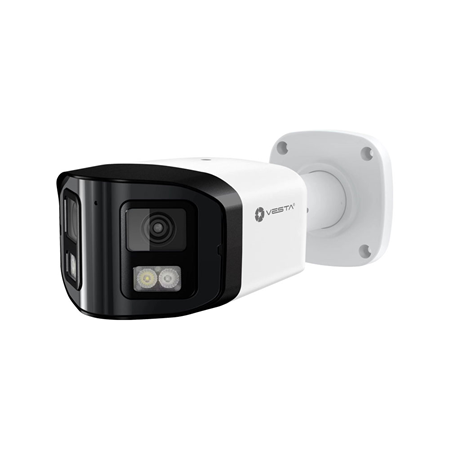

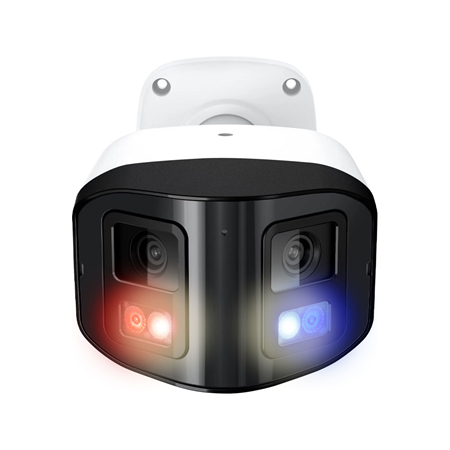

Panoramic IP camera 8MP Smart Dual Light Active Deterrence Magic Color Ultra AI outdoor IP camera

IPC-B38-A180-PV

IPC-B38-A180-PV

Main features

  • Vesta Advanced Video IP Camera with Magic Color technology
  • 8MP@25/30ips, H.265+
  • 0.007/0.0004 lux, Smart Dual Light 40m
  • Fixed lens 3.6 mm
  • WDR 120dB, 3D-NR
  • Perimeter protection, intelligent motion detection, face detection, heat map
  • Active deterrence
  • Built-in microphone and speaker
  • 1 input / 1 output alarm
  • MicroSD slot, reset button
  • Rs485, RJ45, Onvif, IP67, PoE.

Specifications

Thanks to Vesta's Advanced AI processor, Magic Color technology takes your images to an exceptional level of perfection. This intelligent processor optimizes each frame by reducing noise, improving dynamic range and adjusting colors, thus delivering superior visual quality. Designed to operate in varying lighting conditions, MagicColor ensures sharp and consistent images, becoming the foundation of Vesta Advance Video's most advanced solutions.

  • Two 4-megapixel 1/1.8" CMOS sensors
  • H.265+, H.264+, H.265, H.264+, H.264 video formats
  • Resolution up to 8MP (5120x1520)
  • Stream 1: 5120x1520 (1~25/30 fps)
  • Stream 2: 2048x576 (1~25/30 ips)
  • Stream 3: 2048x576 (1~25/30 ips)
  • Day/night mode
  • Smart Dual LightIR light 40 meters, warm light 40 meters
  • Magic Color technology for color images in any environment
  • 0.007 lux F1.6 (color), 0.0004 lux F1.6 (B/W), 0 lux with activated illumination
  • Fixed lens 3.6 mm
  • Viewing angle: 180°(H)
  • Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.
  • White balance
  • Automatic and manual gain control
  • 4-zone video sensor
  • Perimeter protection with line-crossing detection, intrusion detection (supports person/vehicle classification), loitering detection, people gathering, unauthorized parking detection
  • Face detection
  • Abandoned/lost object detection
  • Heat map
  • Built-in active deterrent with audible and luminous alarm (blue and red lights)
  • Alarm arming/disarming
  • Built-in microphone and speaker
  • 1 RCA audio input / 1 output
  • 1 alarm input / 1 alarm output
  • RS485 port
  • MicroSD card slot up to 256 GB (card not included)
  • Reset button
  • Network interface: RJ45 (10/100 Base-T)
  • Network protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP,SMTP
  • Onvif, CGI, P2P, SDK and API support
  • Compatible with IE8 and later, Edge, Chrome and Firefox browsers
  • Management software
  • Compatible with IOS and Android mobile devices
  • Power supply: 12V DC (±30%) / PoE (802.3af)
  • Power consumption: 4W (basic), 14W (maximum)
  • Storage temperature from -40°C ~ +60°C
  • Operating temperature from -30°C ~ +60°C
  • Operating relative humidity <95%.
  • IP67 degree of protection
  • Metal housing
  • Dimensions: 110 (W) x 86,41 (H) x 236,13 mm
  • Net weight: 950 g
REFERENCE / MODEL IPC-B38-A180-PV / IPC-B38-A180-PV
Resolution 8MP
Series 3in1 || Vesta Advanced Video
Audio 1 input / 1 output || Microphone || Speaker
IR Distance 21-40m
Ingress protection IP67
Lens 3.6 mm
Special Protection No
Sensor 1/1.8 CMOS
StarLight StarLight
WDR (Backlight) WDR (120dB)
Codec H.264 || H.264+ || H.265 || H.265+
PoE PoE
SD Slot Yes
Colour White
Certificate NDAA
Installation environment Outdoor
Material Metal
Alarm channels 1 input / 1 output
Connectivity IP || YES (P2P)
AI Series Magic Color
Intelligent functions Abandoned objects || Face detection || Heat map || Perimeter protection || SMD
Compatibility Onvif
