DAHUA-4865

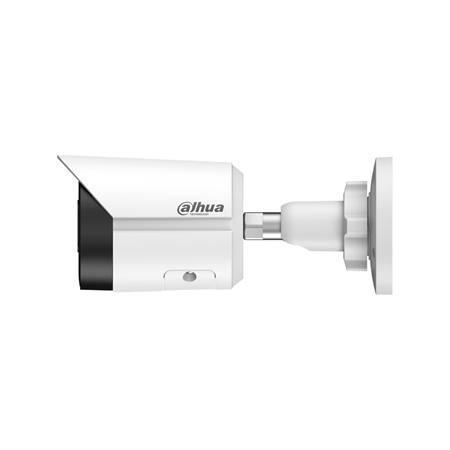

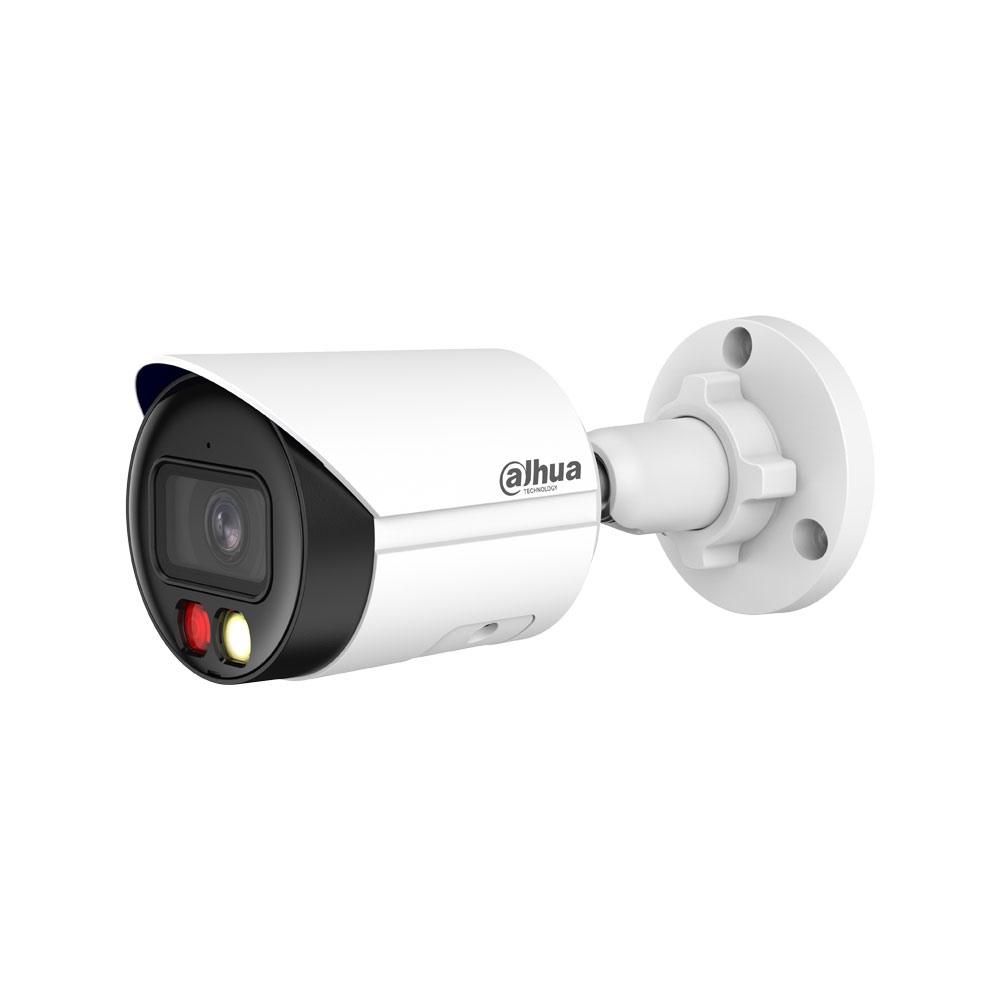

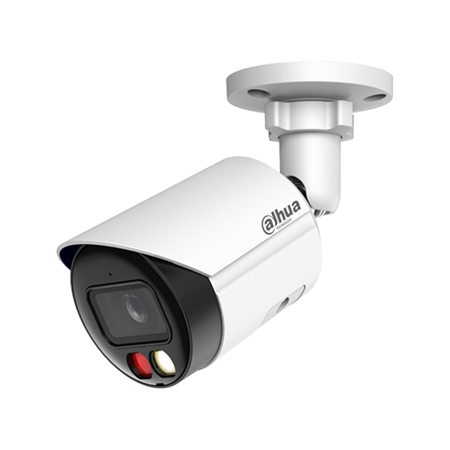

Dahua WizSense 6MP IP bullet camera with Smart Dual Light
DAHUA-4865
DH-IPC-HFW2649SP-S-IL-0280B










Main features
Specifications
- 1/2.7" CMOS sensor with 3288 × 1850 maximum resolution
- Fixed lens 2.8 mm (F1.6)
- Angle of view: 112° (H), 61° (V), 132° (D)
- ICR filter with day/night mode
- 0.007 lux (color) / 0.0007 lux (B/W) / 0 lux with IR or white light
- Smart Dual Light with IR and white light up to 30 m
- Video compression: H.265 / H.264 / MJPEG (substream only)
- Smart Codec: Smart H.265+ / Smart H.264+
- Resolutions: 6MP (3288×1850 / 3200×1800), 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, VGA, CIF
- Stream 1: 3288×1850 (1~20 ips) / 2688×1520 (1~25/30 ips)
- Stream 2: 704×576 (1~25 ips) / 704×480 (1~30 ips)
- Image functions: WDR 120 dB, BLC, HLC, 3D NR, ROI (4 zones), rotation, mirror, privacy mask (4 zones)
- Intelligent illumination with automatic IR/white light switching
- Integrated microphone
- Intelligent functions:
- Perimeter protection: line-crossing and intrusion with human/vehicle classification.
- SMD Plus
- Smart Search (requires compatible NVR)
- Alarms:
- motion detection, video tampering, audio detection, SD card failure, network failure, IP conflict, unauthorized access, voltage anomaly and security exception.
- MicroSD slot up to 256GB (card not included)
- Network interface: RJ-45 (10/100 Base-T)
- Network protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, NTP, SNMP, P2P, ONVIF (S/G/T), CGI
- Software: DSS, Smart PSS Lite, DMSS, DoLynk Care
- Mobile clients: Android / iOS
- Power supply: 12 VDC or PoE (802.3af)
- Standby power consumption: 2.5 W (12 VDC) / 3.3 W (PoE)
- Maximum power consumption: 4.4 W (12 VDC) / 5.4 W (PoE)
- Operating temperature: -40 °C to +60 °C (-40 °F to +60 °C)
- Humidity: ≤95 % (non-condensing)
- IP67 protection
- Metal housing
- Dimensions: 169.8 × 70 × 70 mm (169.8 × 70 × 70 mm)
- Net weight: 470 kg
- Gross weight: 590 kg
- Certifications: CE-LVD, CE-EMC
REFERENCE / MODEL | DAHUA-4865 / DH-IPC-HFW2649SP-S-IL-0280B |
---|---|
Resolution | 6MP |
Series | Smart Dual Light |
Audio | Microphone |
IR Distance | 21-40m |
Ingress protection | IP67 |
Lens | 2.8 mm |
Special Protection | No |
Sensor | 1/2.7" CMOS |
StarLight | FullColor |
WDR (Backlight) | WDR (120dB) |
Codec | H.264 || H.264+ || H.265 || H.265+ |
PoE | PoE |
SD Slot | Yes |
Colour | White |
Installation environment | Outdoor |
Material | Metal |
Alarm channels | No |
Connectivity | IP || LAN || YES (P2P) |
AI Series | WizSense |
Intelligent functions | Perimeter protection || SMD Plus |
Compatibility | Onvif |
