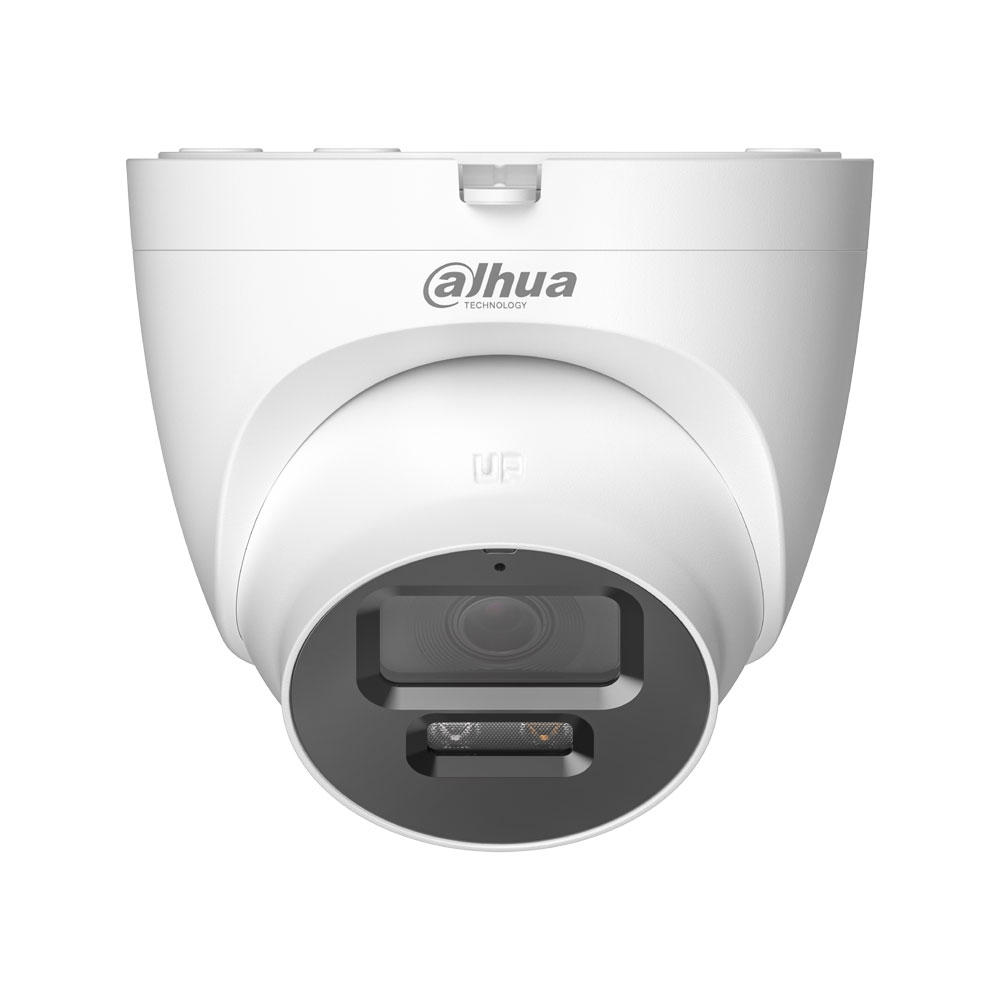

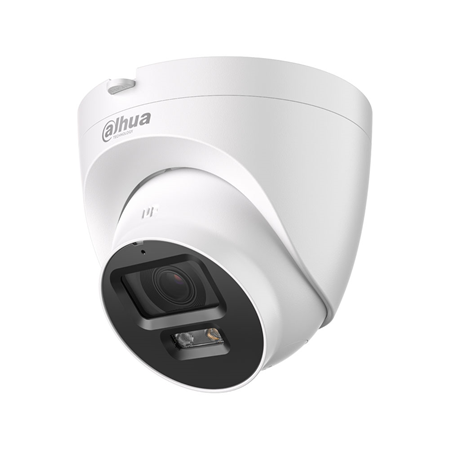

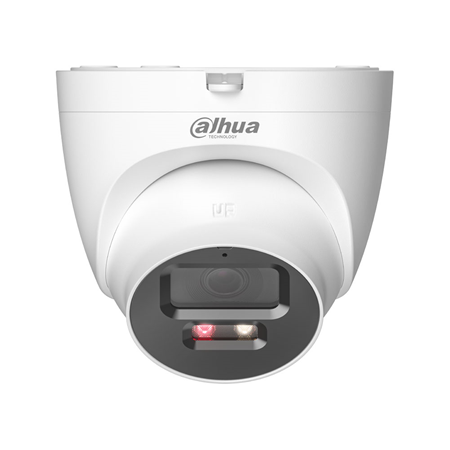

Dahua WizSense 5MP IP dome camera with active deterrence

Name: DAHUA-4881
SKU: DH-IPC-HDW2549TP-S-PV-0280B
Availability: InStock
Rating: 5 (82 reviews)

DAHUA-4881

DH-IPC-HDW2549TP-S-PV-0280B

Main features

Dahua WizSense IP dome camera
5MP@20 ips, H.265 compression
ICR, 0.0006 lux
Smart Dual Light with IR and white light up to 30 m
Fixed lens 2.8 mm
WDR 120 dB, BLC, HLC, 3D NR, ROI
Perimeter analytics, SMD Plus, Smart Search
Two-way audio, sound and light alarm, MicroSD slot
IP67
PoE

Specifications

1/2.7" CMOS sensor with 2960 × 1668 maximum resolution
Fixed lens 2.8 mm (F1.0)
Angle of view: 111.0° (H), 58.5° (V), 136.0° (D)
ICR filter with day/night mode
0.006 lux (color) / 0.0006 lux (B/W) / 0 lux with IR or white light
Smart Dual Light with IR and white light up to 30 m
Video compression: H.265 / H.264 / MJPEG (substream)
Smart Codec: Smart H.265+ / Smart H.264+
Resolutions: 5MP (2960×1668), 4MP, 3MP, 1080P, 720P, D1, VGA, CIF
Stream 1: 2960×1668 (1~20 ips) / 2688×1520 (1~25/30 ips)
Stream 2: 704×576, 704×480 (1~25/30 ips)
Image functions: WDR 120 dB, BLC, HLC, 3D NR, ROI, rotation, mirror, privacy mask (4 zones)
Automatic intelligent illumination between IR and white light
Intelligent functions:
- Perimeter protection: line crossing and intrusion with human/vehicle classification.
- SMD Plus
- Smart Search with Dahua NVR
Alarms: motion detection, video tampering, audio, scene change, SD failure, network failure, IP conflict, illegal access and voltage
Built-in sound and light alarm
Two-way audio: built-in microphone and speaker
MicroSD slot up to 256 GB (card not included)
Network interface: RJ-45 (10/100 Base-T)
Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTSP, FTP, SMTP, DHCP, DNS, SNMP, P2P, ONVIF (S/G/T), CGI
Supported software: DSS, Smart PSS Lite, DMSS
Mobile clients: Android / iOS
Power supply: 12 VDC or PoE (802.3af)
Max. power consumption: 8.8 W (12 VDC) / 10.4 W (PoE); standby: 2.2 W / 2.9 W
Operating temperature: -40 °C to +60 °C (-40 °F to +60 °C)
Humidity: ≤95 % (non-condensing)
IP67 protection
Housing: metal core with plastic cover
Dimensions: 103,5 × Ø109,9 mm
Net weight: 390 g
Gross weight: 570 g
Certifications: CE-LVD, CE-EMC

REFERENCE / MODEL	DAHUA-4881 / DH-IPC-HDW2549TP-S-PV-0280B
Resolution	5MP
Series	Smart Dual Light
Audio	Two-way
IR Distance	21-40m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/2.7" CMOS
StarLight	FullColor
WDR (Backlight)	WDR (120dB)
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
PoE	PoE
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal \|\| Plastic
Alarm channels	No
Connectivity	IP \|\| LAN \|\| YES (P2P)
AI Series	WizSense
Intelligent functions	Perimeter protection \|\| SMD Plus
Compatibility	Onvif
