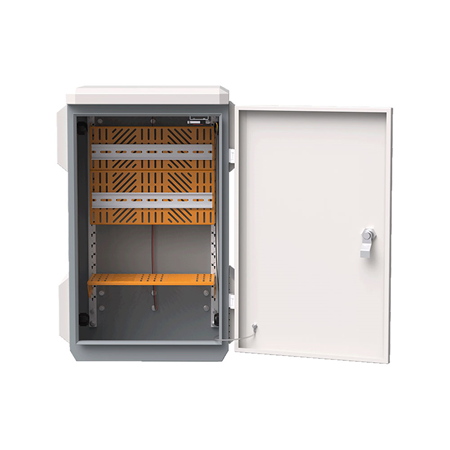

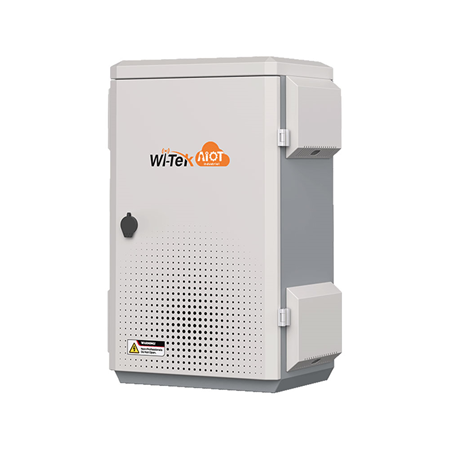

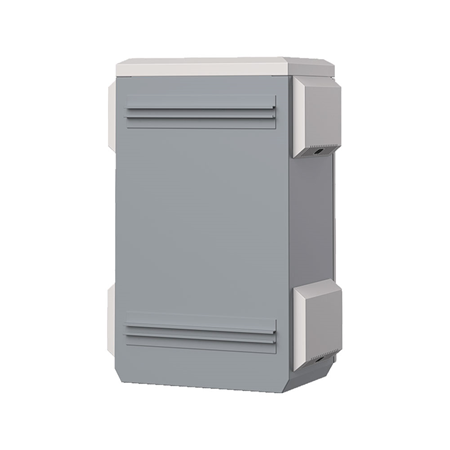

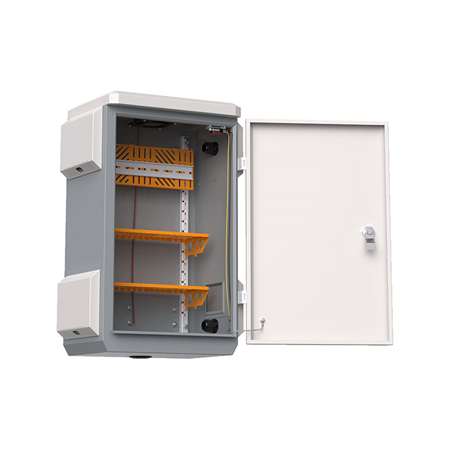

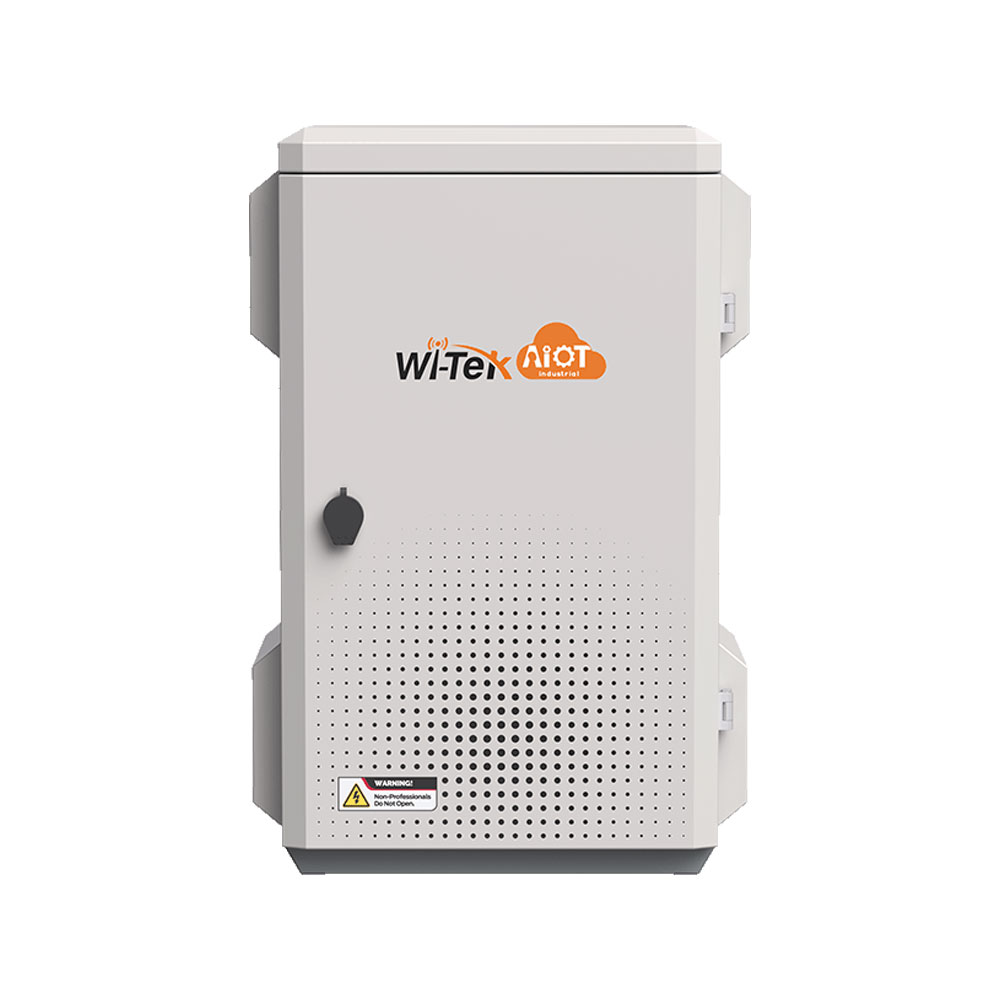

Modular outdoor Wi-Tek IoT box for equipment protection

Technical features

• Wi-Tek outdoor IoT enclosure for outdoor equipment protection
• V3 hardware
• 1 door and 1 lock hole
• 4 removable side plates, 2 for each side panel
• 4 watertight M25 connectors, 2 on each inner side panel
• 2 aluminum alloy rear guides

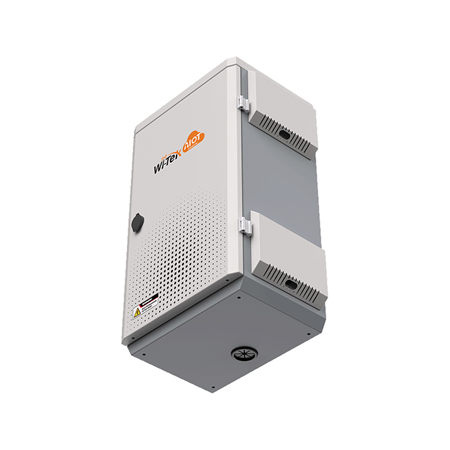

• 1 bottom cable entry
• 4 bottom drainage holes with rubber plugs
• 1 fan on top inner panel
• 1 microswitch on the upper right inside panel
• 3 insect screens
• 2 DIN rails 275 mm
• 1 mounting plate 285.2 x 42 x 99 mm (285.2 x 42 x 99 mm)
• 2 mounting plates 285.2 x 42 x 42 x 124 mm

Functionalities

• Modular structure with top cover, side panel, DIN rail, mounting plate, watertight connectors, removable fan and microswitch
• Thermal dissipation via top fan and bottom vented upward air duct
• New cooling duct design for more efficient cooling
• Door microswitch suitable for connection to power, I/O cloud alarm or buzzer
• Designed for outdoor junction box, distribution, electrical equipment, battery, control and monitoring applications
• Suitable for outdoor CCTV, WLAN, Wi-Fi coverage and industrial IoT applications

Communication interface

• Omron V156-1C25 micro switch with NC, NO and COM terminals
• 15A microswitch current rating
• Microswitch voltage rating of 250V
• Mechanical life of the microswitch of 15000000 cycles

Power supply

• Delta AFB0912HH integrated fan with 12 V DC power supply, 7.0 to 13.8 V DC range
• Fan power consumption 0.25 A typical and 3.0 W typical
• Fan speed of 3200 rpm
• 57.92 CFM air flow rate
• 38.0 dB-A acoustic noise, 41.0 dB-A maximum
• CHINT NXB-63 C25 2 pole miniature circuit breaker
• Circuit breaker rated current of 25A
• 400V~ circuit breaker rated voltage
• Short-circuit breaking capacity of 6000A
• DIN rail installation of circuit breaker

Environmental

• Protection against dust and water with IP55 degree of protection
• Resistance to UV radiation, gas corrosion, acid and alkali corrosion, salt spray and electromagnetic anti-interference.
• Fan operating temperature from -10 °C to 70 °C

Physical characteristics

• Made of SPCC steel
• Electrostatic spray finish
• Light gray and gray color
• Pole, wall or floor installation
• Outside dimensions of 400 x 600 x 265 mm including mounting bracket
• Outside dimensions of 400 x 600 x 251.2 mm excluding mounting bracket
• Recommended internal dimensions of 280 x 540 x 200 mm (1.2 x 1.5 x 1.5 x 1.5 x 1.5 in.)
• Thickness of 1.2 mm
• Net weight of 14.1 kg
• Packing dimensions of 680 x 480 x 315 mm (680 x 480 x 315 mm)
• Gross weight 16.5 kg

Contents

• Outdoor IoT box WITEK-0070-V3 (WI-IOTBOX02 V3)
• 1 enclosure with 1 fan, 1 microswitch and 4 M25 watertight connectors
• Wall mounting accessories with 2 small suspension pieces, 2 large suspension pieces, 4 expansion screws and 4 hexagon screws
• Pole mounting accessories with 2 x 1.1 m stainless steel flanges for diameters from 50 to 300 mm and 2 x stainless steel universal clips
• 1 quick installation guide
• 1 miniature circuit breaker
• 1 mounting plate 285.2 x 42 x 99 mm (285.2 x 42 x 99 mm)
• 2 mounting plates, 285.2 x 42 x 124 mm (2.2 x 42 x 124 mm)
• 2 wrenches
• 2 DIN rails 275 mm
• 1 grounding connector

Certifications and standards

• CE, FCC, RoHS, RoHS and UKCA markings
