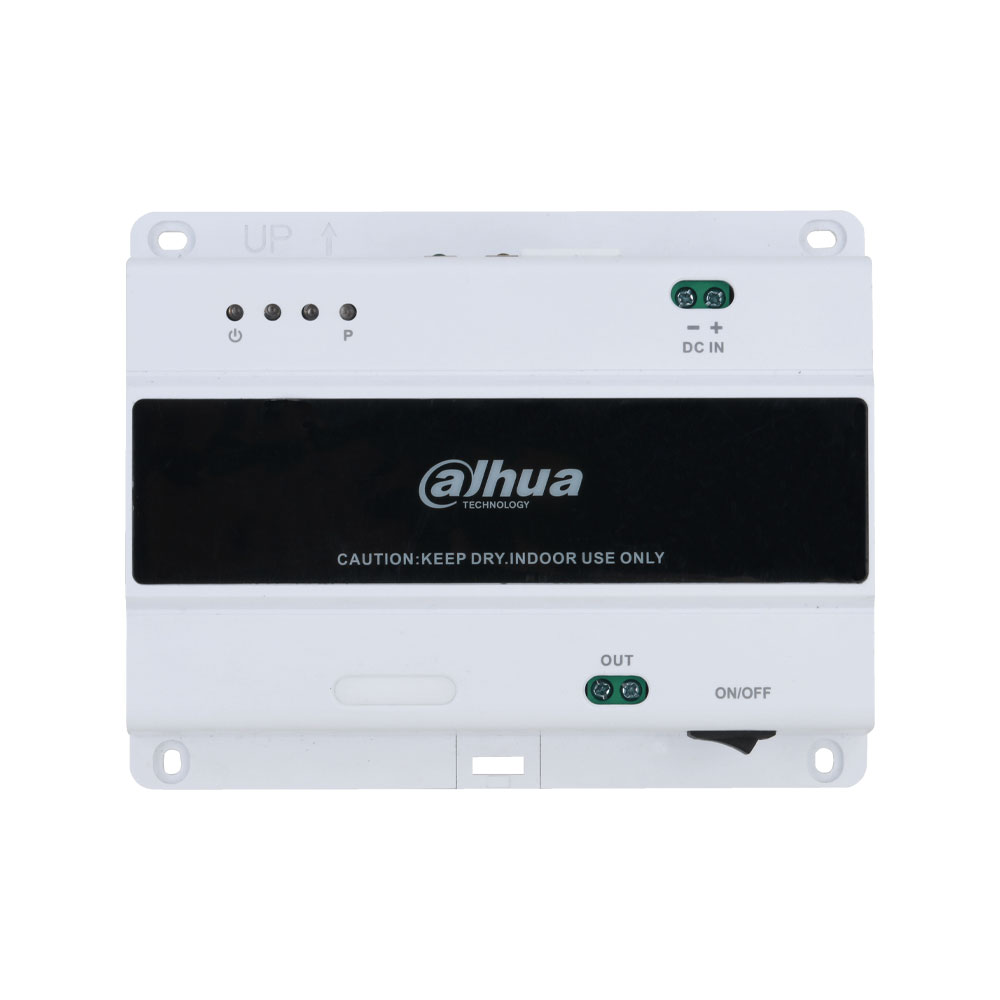

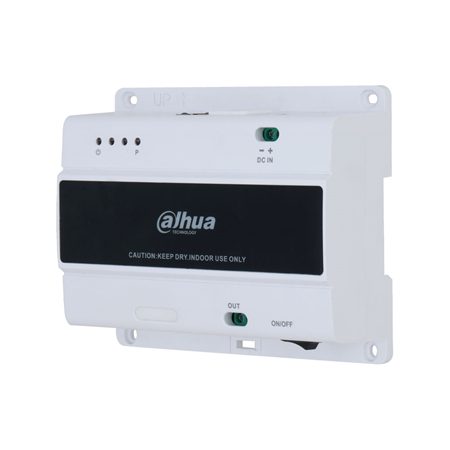

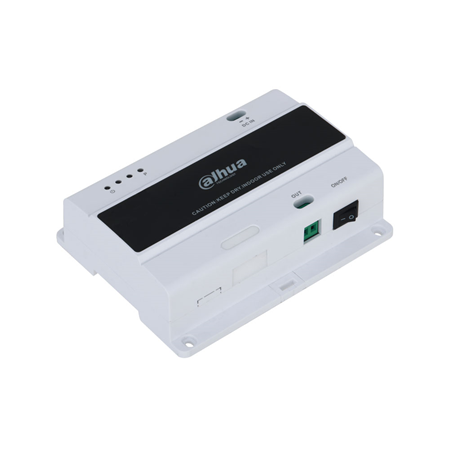

DAHUA-5297 | Dahua 2-wire video intercom switch with RJ45 and rail mounting
DAHUA-5297DHI-VTNS1001B-2Dahua 2-wire video intercom switch with RJ45 and rail mounting
DAHUA-5297
DAHUA-5297_B
DAHUA-5297_C

Dahua 2-wire video intercom switch with RJ45 and rail mounting

DAHUA-5297

DHI-VTNS1001B-2

Main features

  • Dahua 2-wire video door phone switch
  • Allows up to 4 indoor monitors and 2 door stations to be connected
  • Includes RJ45 port and guide rail mounting
  • Power supply 48 V DC 1~5 A and power consumption ≤15 W.

Specifications

Technical features

  • 2-wire video door entry switch
  • 2-wire communication mode
  • Allows connection of up to 4 indoor monitors and 2 door stations
  • 2 status indicator lights
  • Power consumption ≤15 W as a kit

Interface

  • 1 x 2-wire port
  • 1 RJ45 port
  • Connection via RJ45 port

Power supply

  • 48 V DC power supply
  • Power supply current from 1 to 5 A

Environmental

  • Operating temperature -10°C to +55°C (-10°C to +55°C)
  • Operating humidity 10% to 95% RH non-condensing
  • Operating altitude 0 to 3000 m

Physical characteristics

  • Guide rail mounting
  • PC + ABS housing
  • White color
  • Dimensions: 131 x 103 x 40 mm
  • Net weight 0.25 kg
  • Gross weight 0.39 kg

Contents

  • 1 Dahua DHI-VTNS1001B-2 2-wire switch
  • 1 power converter cable

Certification

  • CE
  • FCC
  • UL
REFERENCE / MODEL DAHUA-5297 / DHI-VTNS1001B-2
System Wired
Device Accessory
Colour White
Installation environment Indoor
Material Plastic
Alarm channels No
Connectivity 2-Wire, LAN
