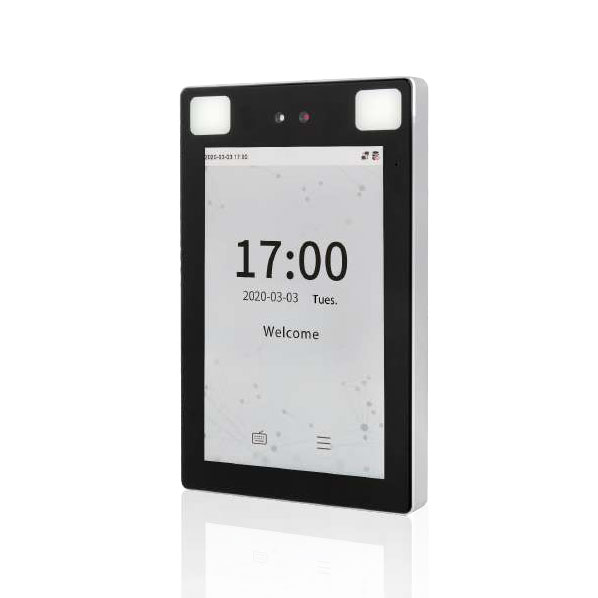

ZKTeco biometric terminal with facial recognition for Access Control

Characteristics

• Access Control Terminal
• Large capacity of facial templates: N facial template capacity 30,000
• Anti-Phishing Technology that avoids false positives, discards Black and white color photos, videos and 3D masks
• Smart energy-saving design that accurately evaluates the distance of up to 2.5 meters between the user and the device using a microwave detector before activating the recognition device
• 2MP CMOS sensor camera with WDR and StarLight function, allowing the device to recognize faces in extreme lighting conditions (0.5 lux ~ 50,000 lux)
• 8 "touch screen with 400 lux, offering better visibility in bright light
• Protection Standard IK04 for outdoor and IP68 protection dustproof and waterproof
• Operating temperature range (-30 ºC ~ 60 ºC)

Specifications

• Display: 8" IPS touch screen (400 lux)
• 2 megapixel camera, WDR and low light
• Face Capacity: 30,000 (1: N)
• User Capacity: 50,000
• User Photo Capacity: 30,000
• Event Memory: 1,000,000
• Event Photo Capacity: 10,000
• Palm: FAR ≤0.01%; FRR ≤1%
• Facial algorithm: ZKLiveFace 5.8
• Compatibility: SRB, (Security Relay Box) / Wiegand / RS485 / RS232 slave reader with FP / Barcode / QR Code / ZKBioSecurity
• Hardware: Custom 900MHz dual-core CPU, 512MB RAM / 8GB Flash memory
• Adjustable LED brightness
• Standard Features: Access Levels, Groups, Vacations, DST, Fake Mode (Password), Anti-Passback, Log Query, Tamper Switch Alarm, Custom Wallpaper and Screen Saver
• Hi-Fi sound
• High sensitivity microphone
• Distance detection sensor
• Reset button
• Switch tamper
• Communication: TCP / IP, Wiegand In / Out, RS485, RS232
• Access Control Interface: Relay output, Alarm output, Auxiliary input, Exit button, Door sensor
• Power: 12V, <2A
• -30 ºC ~ + 60 ºC operating temperature
• Relative humidity: ≤93%
• Storage temperature of -40 ºC ~ + 65 ºC
• Protection degree IP68
• Vandal protection IK04
• Dimensions: 143.26 (W) x 227 (H) x 26.1 mm
• Weight: 853 g
