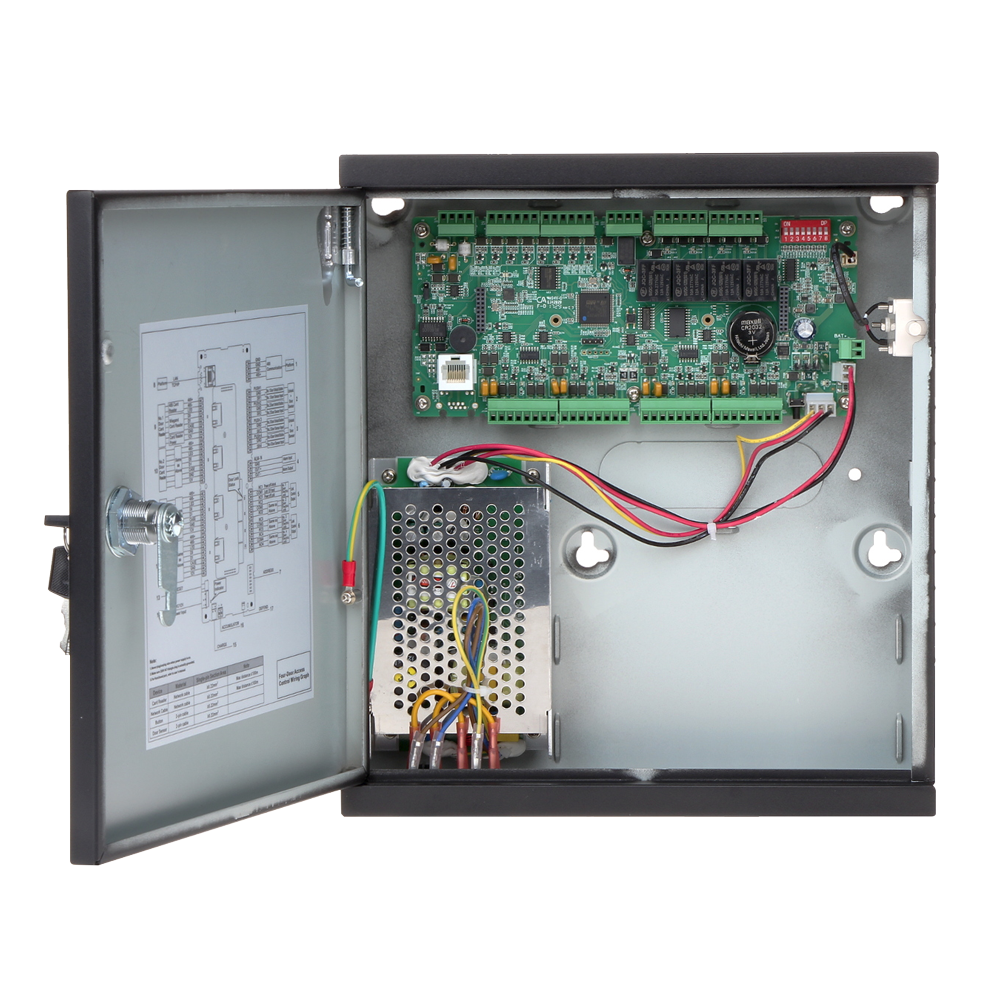

Four Door Access Controller

Name: DAHUA-905
SKU: ASC1204C-S
Rating: 5 (6 reviews)

DAHUA-905

ASC1204C-S

This product is discontinued

It is replaced by the new version DAHUA-3036

Main features

Four Door Access Controller
100,000 cards, 150,000 events
Antipassback, multiple lock, multi-card unlock
4 door sensors, 4 exit buttons, 1 alarm inputs, 4 locks, 1 alarm outputs, 4 readers
TCP/IP, RS485, Wiegand
12V DC.

Specifications

- Four Door Access Controller
- Procesador de 32 Bit processor
- 16 MB
- Capacity: 100,000 cards and 150,000 registers
- Card, code, fingerprint and combination supported
- TCP/IP for PC interface
- Wiegand or RS-485 for readers interface (4 doors)
- Alarm: Waiting time ,intrusion, coercion and anti sabotage
- Anti-passback, multi-door lock, multi-card aperture
- 128 schedules and holiday schedule
- Watchdog function
- Surface mount
- Backup battery space
- Power supply: 9V ~ 15V DC, 500mA
- Working temperature: -30°C ~ +60°C
- Dimensions: 280 x 320 x 114 mm
- Weight: 2 kg
