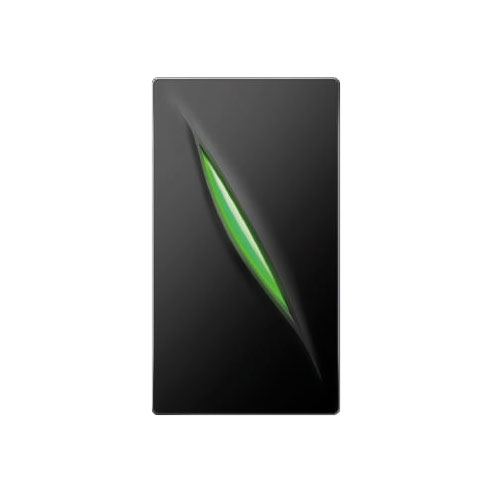

ZKTeco Access Control Wiegand Reader

Name: ZK-143
SKU: ACC-ER-KR310
Rating: 5 (44 reviews)

ZK-143

ACC-ER-KR310

This product is discontinued

Main features

125KHz / 13.56 MHz proximity card reader
Up to 10 cm (125 KHz) and 5 cm (13.56 MHz) reading range
Compatible with ID, Mifare Classic, Mifare Desfire
34-bit Wiegand
Easy to install in metal door frame or mullion
External LED control
External buzzer control
Indoor and outdoor operation
Solid epoxy injection
IP65 waterproof protection
Reverse polarity protection
Elegant and robust design
Power supply is not included

Specifications

ZKTeco

specs

Compatibility: ID, Mifare Classic, Mifare Desfire
34 bit Wiegand (EM / MF)
Operating frequencies: 125KHz / 13.56MHz
EM card reading range up to 10cm
MF card reading range up to 5cm
<300ms read time
Power supply: 6V ~ 14V, max. 70 mA
-10 ° C ~ + 70 ° C operating temperature
10% ~ 90% operating relative humidity
Degree of protection IP65
Power supply is not included
Dimensions: 42.8 (W) x 77.5 (H) x 16.5mm
