DAHUA-4791 | Stand-alone access control with dual RFID reader and mechanical keypad in IP65 and IK08 enclosure
DAHUA-4791DHI-ASI1201M-MEStand-alone access control with dual RFID reader and mechanical keypad in IP65 and IK08 enclosure
Volver a Access Ctrl/Presence
Products
Access Control
Access Ctrl/Presence
Standalone Reader
DAHUA-4791
DAHUA-4791
DAHUA-4791_B
DAHUA-4791_C
DAHUA-4791_D

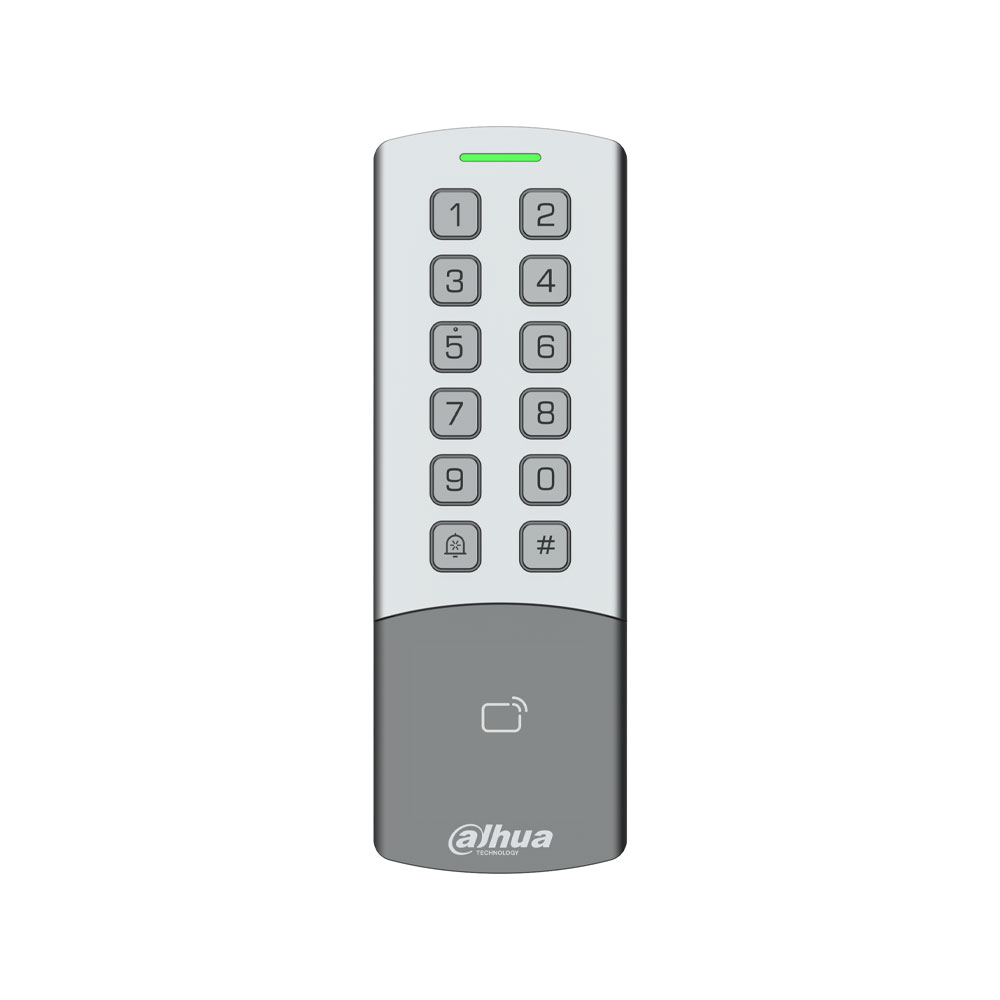

Stand-alone access control with dual RFID reader and mechanical keypad in IP65 and IK08 enclosure

DAHUA-4791

DHI-ASI1201M-ME

Main features

  • Dahua standalone access controller
  • Backlit keypad and RFID reader 125 kHz + 13.56 MHz
  • Up to 10,000 users
  • TCP/IP, RS-485 and Wiegand connection
  • ONVIF and OSDP compatible
  • Lock output
  • Alarm inputs
  • IP65 and IK08 protection
  • Configurable via web

Specifications

  • Stand-alone access control with RFID reader and mechanical keypad
  • Compatible with ID, M1 and Desfire EV3 cards (default Dahua cards)
  • Dual RFID reader: 13,56 MHz and 125 kHz, reading distance 0-30 mm
  • Backlit mechanical keypad with integrated buzzer and buzzer
  • Capacity for 10,000 users, 10,000 passwords and 10,000 cards
  • Memory for 100,000 event logs
  • RS-485 and Wiegand ports (configurable input/output)
  • 1 input for exit button and 1 input for door sensor
  • 2 alarm inputs and 1 alarm output shared with door bell
  • 1 output for lock control (12 VDC, max. 500 mA)
  • OSDP, ONVIF, CGI, SDK and API compliant
  • RJ-45 10/100 Mbps port
  • Protocols TCP/IP, UDP, IPv4/IPv6, P2P
  • Configuration via web interface from PC or mobile
  • Remote firmware upgrade and auto-configuration over network
  • Supports remote and multi-user verification
  • Restricted and trusted lists, first user unblocking
  • User types: normal, VIP, patrol, guest, blacklist, customized
  • Alarms: sabotage, tamper, duress, intrusion, misuse, prolonged opening
  • Power supply: 12 VDC, 1.5 A (optional adapter)
  • Power consumption: ≤18 W
  • Operating temperature: -30 °C to +60 °C
  • Operating humidity: 5 %-95 % RH (non-condensing)
  • Storage temperature: -20 °C to +70 °C (-4 °F to +70 °F)
  • Storage humidity: 30 %-75 % RH
  • IP65 protection against dust and water, IK08 impact resistance
  • Polycarbonate front and rear metal housing, black color
  • Surface mount, bracket included
  • Dimensions: 169 × 57.5 × 33.3 mm
  • Gross weight: 0.65 kg
  • CE-certified
REFERENCE / MODEL DAHUA-4791 / DHI-ASI1201M-ME
Ingress protection IP65
Special Protection Vandal-proof (IK08)
Inputs 2
Outputs 1
Attendance ctrl NO
Authentication modes Card || PIN code || Remote
Reading range <10cm
Reader EM || MF
Installation environment Outdoor
Alarm channels 2 inputs / 1 output
Compatibility Onvif
