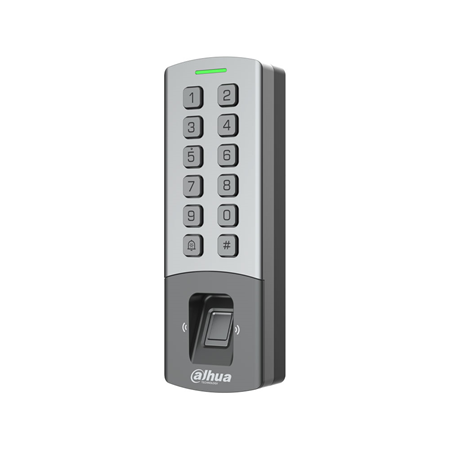

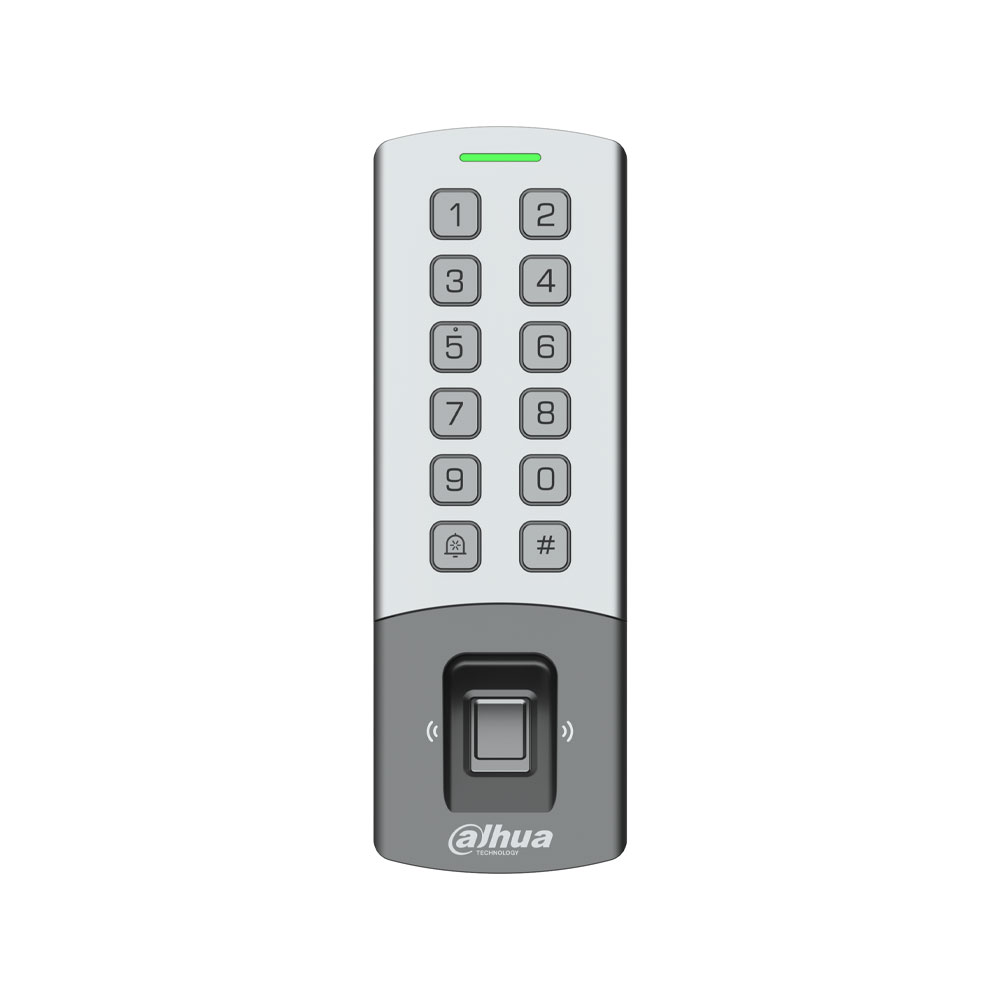

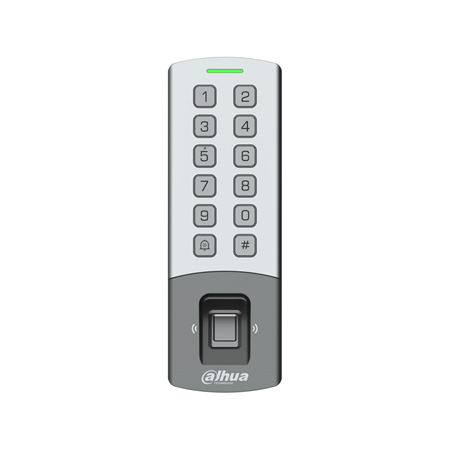

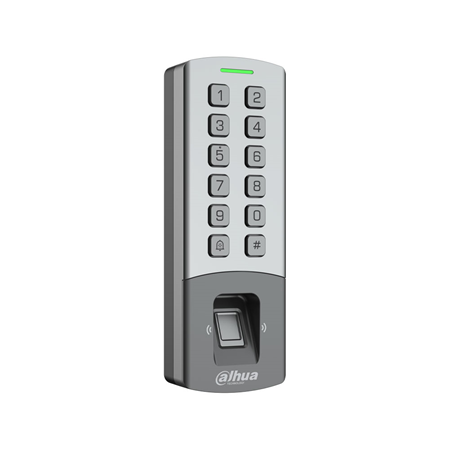

DAHUA-4792 | Stand-alone access control with RFID reader, fingerprint and keypad in IP65 and IK08 metal casing.
DAHUA-4792DHI-ASI1212MStand-alone access control with RFID reader, fingerprint and keypad in IP65 and IK08 metal casing.
Volver a Access Ctrl/Presence
Products
Access Control
Access Ctrl/Presence
Standalone Reader
DAHUA-4792
DAHUA-4792
DAHUA-4792_B
DAHUA-4792_C
DAHUA-4792_D

Stand-alone access control with RFID reader, fingerprint and keypad in IP65 and IK08 metal casing.

DAHUA-4792

DHI-ASI1212M

Main features

  • Stand-alone access controller
  • 13.56 MHz RFID reader, fingerprint reader and keypad
  • Capacity for 10,000 users
  • TCP/IP, RS-485 and Wiegand network
  • ONVIF and OSDP compatible
  • Metallic casing
  • IP65 and IK08 protection
  • Configurable via web
  • Compatible with DSS Pro, SmartPSS Lite and DMSS.

Specifications

  • Verification by card, password, fingerprint and remote validation
  • 13.56 MHz RFID reader (MIFARE, Desfire EV3, Dahua cards by default)
  • Capacitive fingerprint sensor, recognition in 0.5 sec.
  • 1:N fingerprint mode with comparison in 1.5 s
  • Capacity: 10,000 users, 10,000 passwords, 10,000 cards, 3,000 prints
  • Log memory: 100,000 events
  • Backlit mechanical keypad
  • Chime button, buzzer and status LED
  • Connectivity: 1 × RJ45 (TCP/IP), RS-485, Wiegand IN/OUT configurable
  • Inputs: exit button, door sensor, 2 alarm inputs
  • Outputs: 1 lock output, 1 alarm output (shared with buzzer)
  • Anti-passback mode, intrusion, duress, sabotage and illegal card alarms
  • Restricted and trusted lists, unlocking by first user
  • Webserver configurable from PC or mobile
  • ONVIF, OSDP, CGI, SDK and API support
  • Compatibility: DSS PRO, SmartPSS Lite, DMSS
  • Power supply: 12 VDC, 1.5 A (optional adapter)
  • Power consumption: ≤18 W
  • IP65 and IK08 protection
  • Installation: surface mount, bracket included
  • Housing material: zinc alloy (front) and polycarbonate (rear)
  • Operating temperature: -30 °C to +60 °C
  • Operating humidity: 5 % to 95 % non-condensing
  • Storage temperature: -20 °C to +70 °C (-4 °F to +70 °C)
  • Storage humidity: 30 % to 75 % RH
  • Dimensions: 169 × 57.5 × 33.3 mm (169 × 57.5 × 33.3 mm)
  • Gross weight: 0.65 kg
  • Certifications: CE
REFERENCE / MODEL DAHUA-4792 / DHI-ASI1212M
Ingress protection IP65
Special Protection Vandal-proof (IK08)
Inputs 2
Outputs 1
Attendance ctrl NO
Authentication modes Card || Fingerprint || PIN code || Remote
Reading range <10cm
Reader Biometrico || MF
Installation environment Outdoor
Alarm channels 2 inputs / 1 output
Compatibility Onvif
