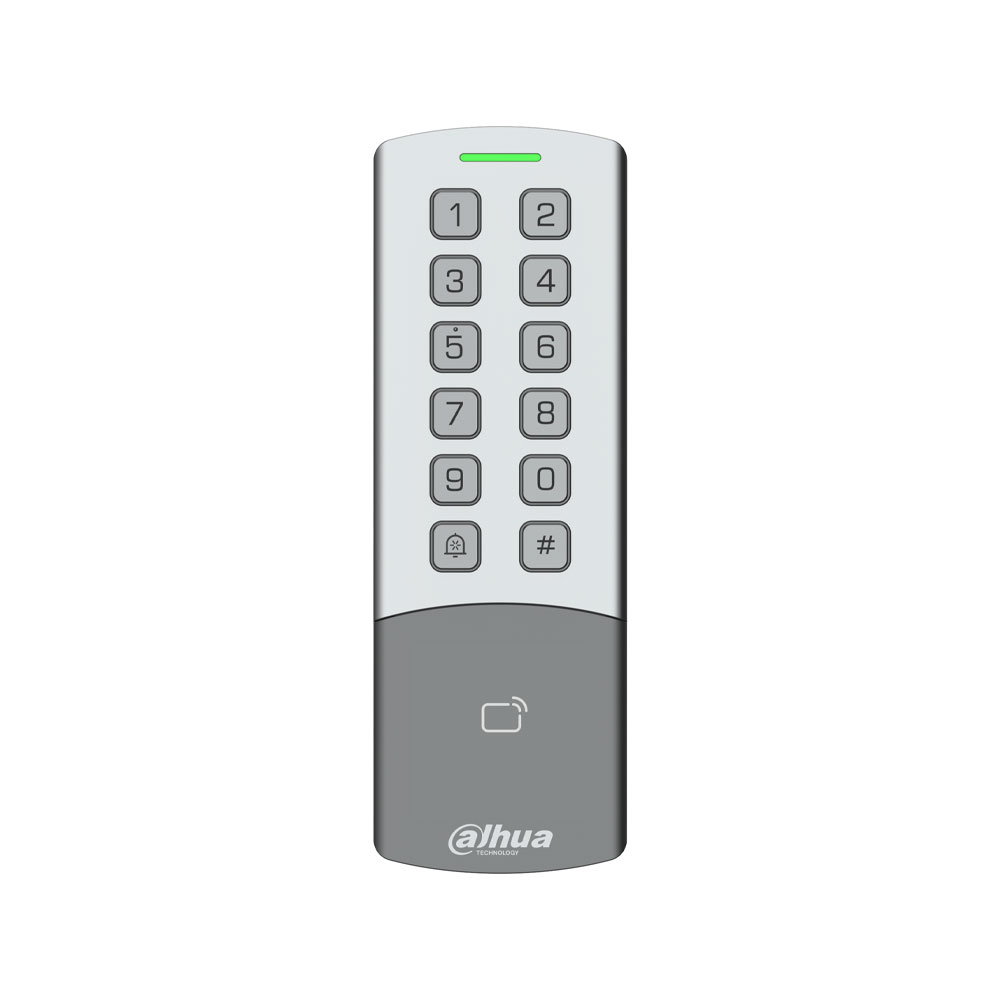

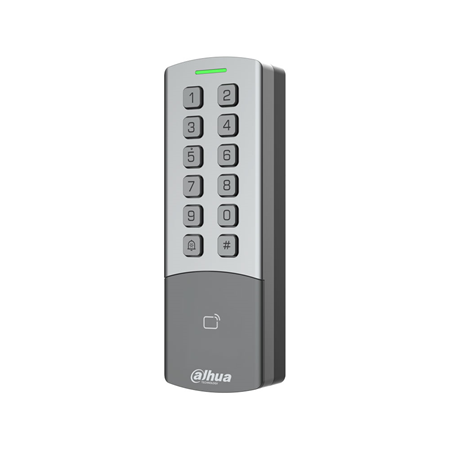

Dahua standalone terminal for access control by card and password with PoE

Technical features

• Dahua stand-alone card and password access control terminal
• Embedded processor
• Mechanical keyboard with backlight
• Integrated buzzer
• Indicator light
• Doorbell support
• Compatibility with security extension modules for access control
• Online update
• Configuration via web page accessible from PC and mobile devices
• Compatible with SmartPSS Lite, DSS PRO and DMSS platforms

Functionalities

• Card, password and remote verification methods
• 128 time periods
• 128 vacation periods
• First user unlocked
• Remote verification
• Restricted list and trusted list
• Card issuance via master card
• Multi-user authentication
• Multi-factor authentication
• Real-time monitoring
• Automatic logging
• Anti-passback

Reader

• Compatible with IC card, ID card and Desfire EV3 card
• Compatible with Dahua card by default
• ASK modulation type
• 13.56 MHz and 125 kHz frequencies
• Card reading distance from 0 mm to 30 mm
• Peripheral reader with 1 RS-485 channel and 1 Wiegand channel
• Switching between RS-485 and Wiegand reader via switch

Users and capacity

• 10000 user capacity
• Capacity of 10000 cards
• Capacity of 10000 passwords
• Capacity of 100000 records
• Normal, VIP, patrol, guest, blocked list and other user types
• Custom users 1 and 2

Network

• IPv4, UDP, P2P, IPv6 and TCP protocols
• OSDP protocol
• ONVIF and CGI interoperability
• SDK and API
• TCP/IP connection
• P2P registration
• DHCP
• Auto-adaptive RJ-45 10/100 Mbps Ethernet port

Inputs and outputs

• 1 RS-485 port, also usable by Wiegand card reader
• 1 Wiegand port, also usable by RS-485 card reader
• 26-, 34- or 66-bit auto-adaptive Wiegand input
• Default 34-bit Wiegand output, configurable to 26 or 66 bits
• 2 alarm inputs
• 1 alarm output, also usable as buzzer output
• 1 buzzer channel, also usable as an alarm output
• 1 channel for exit button
• 1 door status detection channel
• 1 lock control channel
• 1 power supply output 12 V, 0.5 A
• Power supply for 1 lock 12 V, 500 mA or less
• Power supply for 1 card reader 12 V, 200 mA or less

Alarms

• Tamper alarm
• Duress alarm
• Intrusion alarm
• Unlock time exceeded alarm
• Illegal card overuse alarm
• Alarm linkage

Power supply

• Power supply 12 VDC, 1.5 A
• Standard PoE
• Optional power adapter
• Power consumption ≤18 W

Environmental

• Outdoor operating environment
• Operating temperature -30°C to +60°C (-30°F to +60°F)
• Operating humidity 5% to 95% RH noncondensing
• Storage temperature -20 °C to +70 °C (-4 °F to +70 °C)
• 30% to 75% RH non-condensing storage humidity
• IP65 protection
• Vandal protection IK08

Physical characteristics

• Wall mounting
• Surface mounting
• Front of housing made of zinc alloy

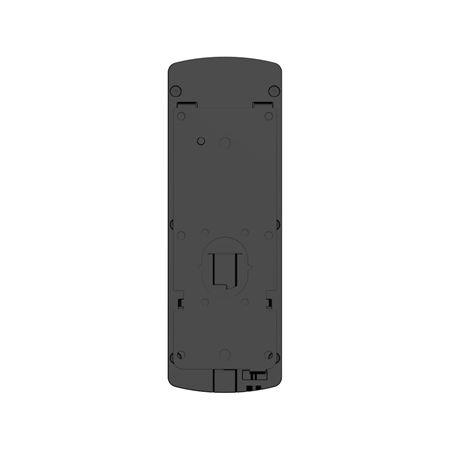

• Back of housing made of plastic
• Housing material PC and zinc alloy
• Dimensions: 169 mm x 57.5 mm x 33.3 mm
• Gross weight: 0.65 kg

Contents

• 1 Dahua DAHUA-5275 standalone terminal (DHI-ASI1201M-MEP)
• Wall mounting bracket included

Certifications and standards

• CE
