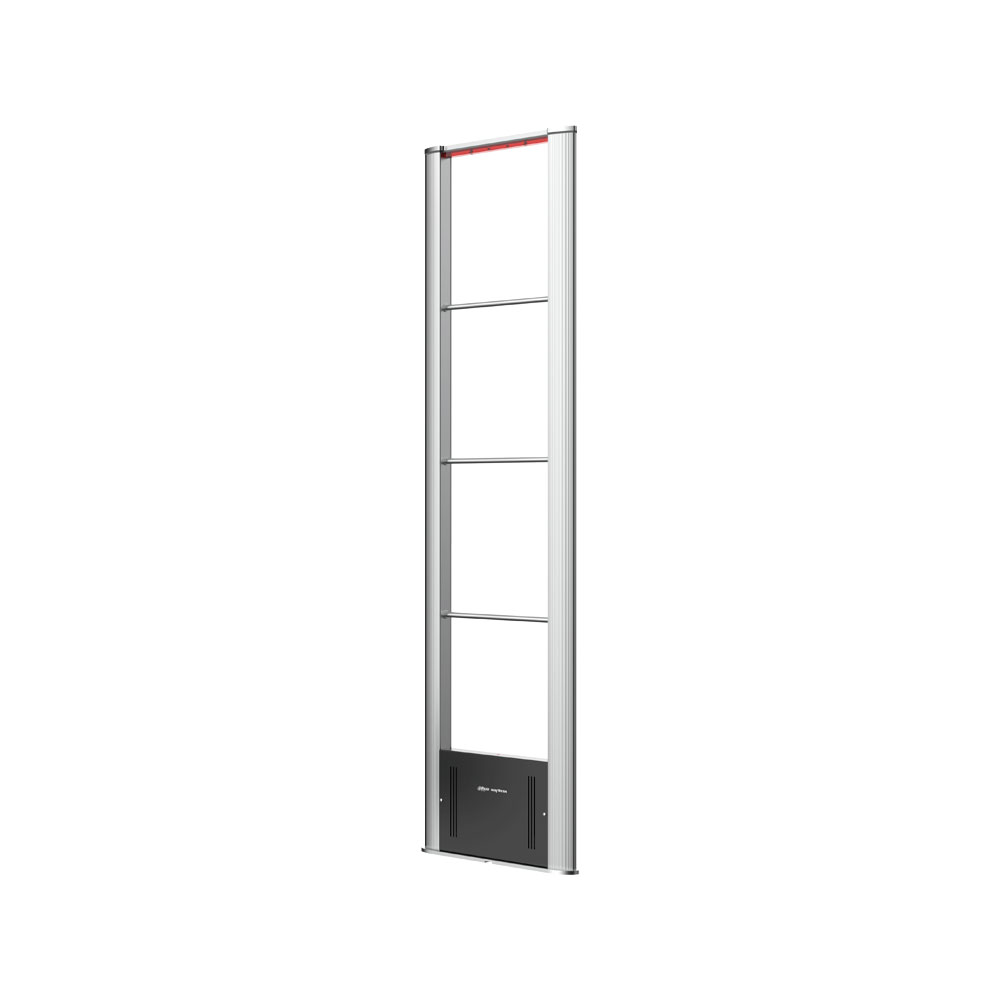

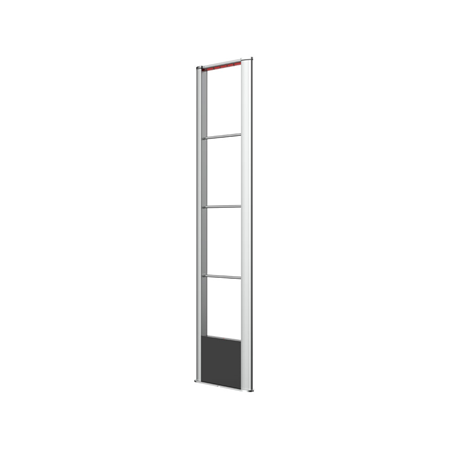

Dahua RF anti-theft antenna with network connection

DAHUA-4601

DHI-ISC-EAR6-C108-G02

Main features

Dahua RF EAS antenna with network connection
Compatible with WISS/DSS Pro
Detection up to 2.4 m
Sound and light alarm
High immunity to interference
Aluminum alloy housing, elegant and durable design
Vertical mounting
CE, RoHS and REACH certifications

Specifications

Detection technology: radio frequency (RF)
Operating frequency: 8.2 MHz
Adhesive tag detection: 1.4-1.8 m (4-1.8 ft)
Rigid tag detection: 1.8-2.0 m (4-2.0 ft)
Type: WISS-licensed TX+RX antenna kit
Connection capacity: 1 TX antenna can link up to 2 RX simultaneously
Sound and light alarm on both antennas. Volume adjustable up to 90 dB
RJ45 port for network connection
Network protocol: HTTP, TCP/IP
Alarm output port for camera linking
Supported software: DSS Pro, ConfigTool, WISS
SDK support
Sensitivity adjustment of 98 levels
6-level sweep frequency band
Support for firmware upgrade and web configuration
Tag pre-alarm and interference display function
Installation: vertical pole mounting
Material: aluminum alloy
Color: silver + gray
Power supply: 100-240 VAC, 50/60 Hz
Output: 24 VDC
Maximum power consumption: 11 W
Typical power consumption: 9 W
Operating temperature: 0 °C to 45 °C
Operating humidity: 5% to 95% RH
Product dimensions: 1543 × 427 × 65 mm (1543 × 427 × 65 mm)
Packing dimensions: 1650 × 500 × 240 mm (1650 × 500 × 240 mm)
Gross weight: 11.5 kg
Certifications:
- CE-LVD (2014/35/EU)
- CE-EMC (2014/30/EU)
- CE-NET (2014/53/EU)
- RoHS (2011/65/EU, 2015/863/EU)
- REACH (EC No 1907/2006)
