DAHUA-4765 | Dahua IP elevator controller
DAHUA-4765DHI-ECC02Dahua IP elevator controller
DAHUA-4765
DAHUA-4765_B

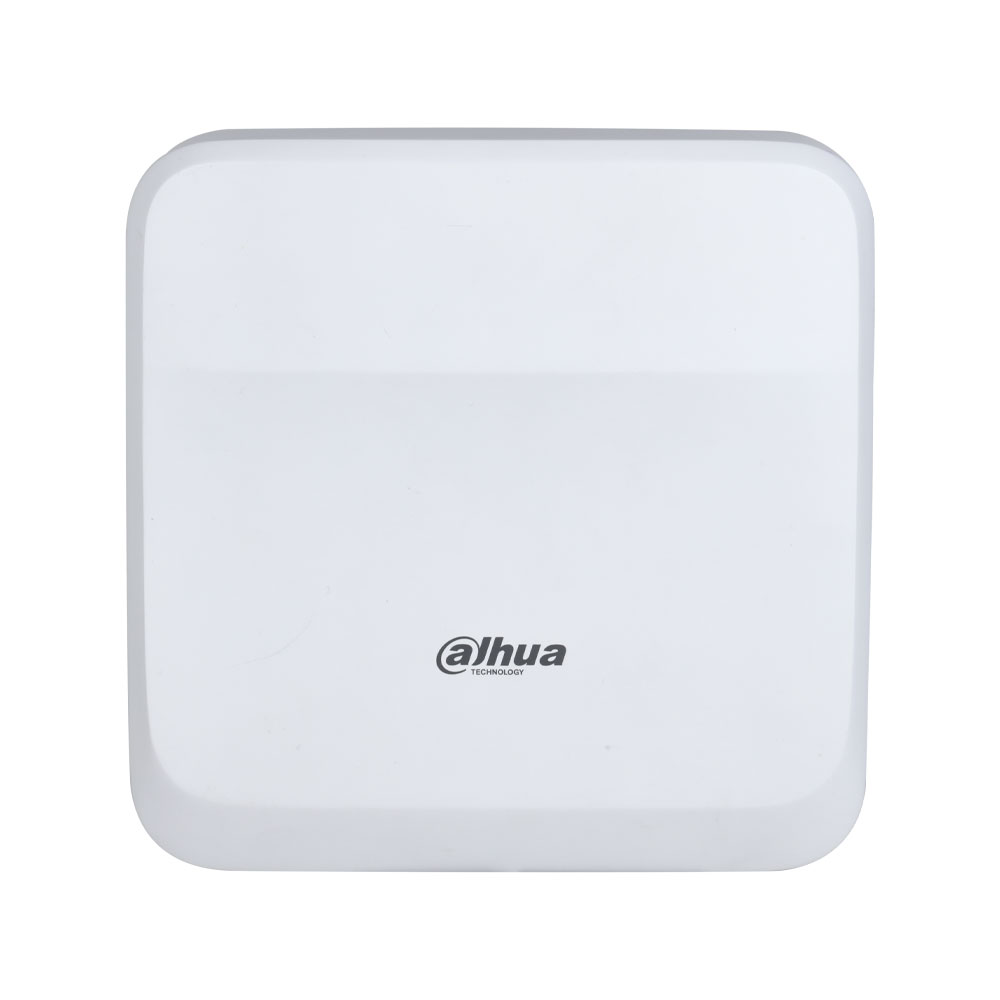

Dahua IP elevator controller

DAHUA-4765

DHI-ECC02

Main features

  • Dahua IP elevator controller
  • Up to 30 000 users in platform mode and 10 000 in standalone mode
  • Compatible with Wiegand and RS485 readers
  • Access by card, password, fingerprint or QR
  • Management by web or DSS Pro
  • Controls up to 128 plants
  • Sabotage, duress and blacklist alarms
  • PoE
  • IK06 protection
  • Surface or DIN rail mounting.

Specifications

  • Embedded processor with watchdog for system stability.
  • TCP/IP connection. Protocol: IPv4, UDP, DNS, DDNS, TCP
  • Supports DSS Pro (platform mode) and web access (standalone mode)
  • Verification methods: card, password, fingerprint, QR code (platform mode only)
  • User modes: general, VIP, patrol, visitor, blacklist, customized
  • Capacity (platform mode): 30 000 users, 30 000 cards or QR, 10 000 fingerprints, 30 000 passwords
  • Capacity (standalone mode): 10,000 users, 10,000 cards, 10,000 fingerprints, 10,000 passwords
  • Logging capacity: 300,000 events
  • Allows up to 8 call modules and 8 elevator control modules
  • Control of up to 128 floors
  • Stores data without power supply
  • Alarm inputs: 2 digital
  • Alarm outputs: 2 digital
  • Alarms: tamper, duress (card, password, fingerprint), blacklist, offline
  • 3 RS-485 ports
  • 2 Wiegand inputs
  • 1 RJ-45 10/100 Mbps Ethernet port
  • Supports 2 RS-485 readers and 2 Wiegand readers
  • Integrated web configuration
  • 128 time periods + 128 holiday periods (standalone mode)
  • Material: PC + ABS fireproof, protection degree IK06
  • Power supply: 12 VDC, 2.5 A or PoE (802.3at)
  • Standby power consumption: ≤ 2 W
  • Total power delivery:
    • 12 VDC: 1700 mA for peripherals.
    • PoE: 1200 mA for peripherals
  • Operating temperature -10 °C to +55 °C (-10 °C to +55 °C)
  • Relative humidity 5-95 %.
  • Surface or DIN rail mounting
  • Dimensions: 186.4 × 185.8 × 58.3 mm (186.4 × 185.8 × 58.3 mm)
  • Gross weight: 0.99 kg
  • CE certified
REFERENCE / MODEL DAHUA-4765 / DHI-ECC02
Audio No
Special Protection Vandal-proof (IK06)
Inputs 2
Outputs 2
No. of readers 2
Authentication modes Card || Fingerprint || PIN code || QR code
Installation environment Indoor
Connectivity IP
