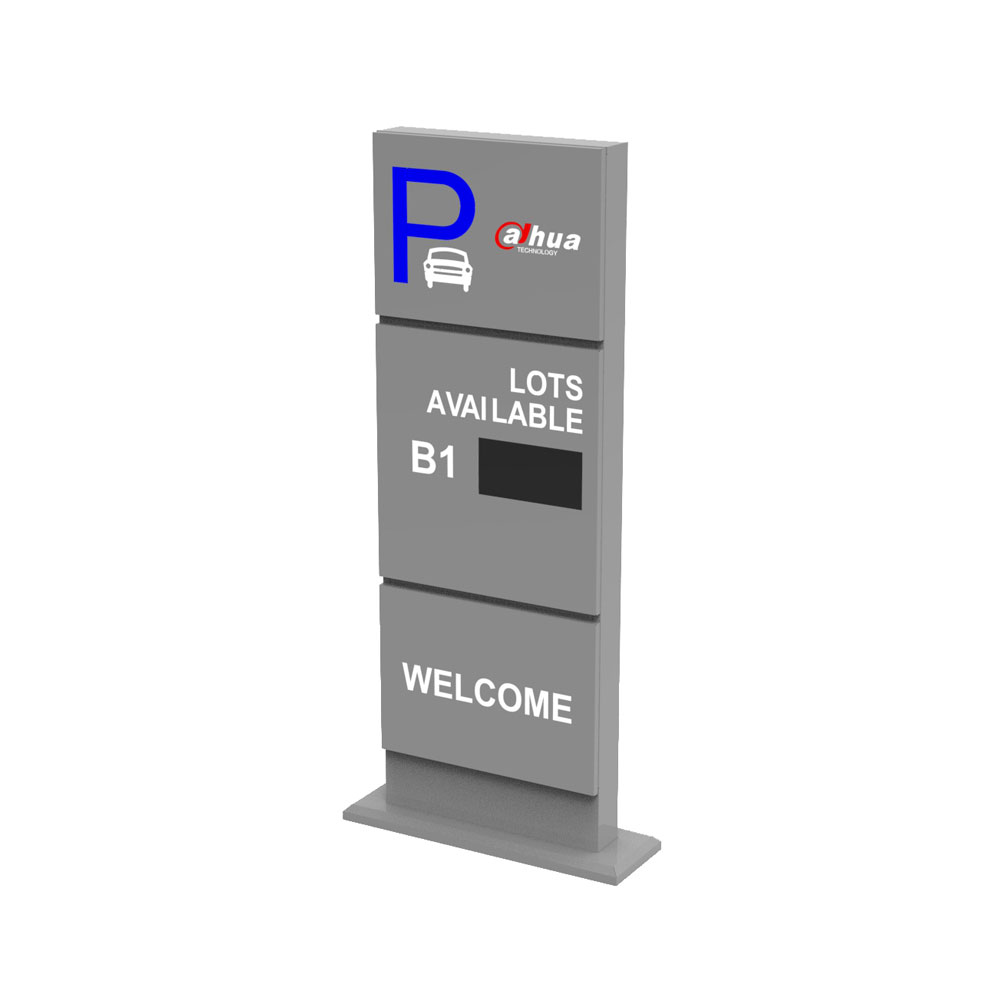

Dahua outdoor LED display for parking guidance and available space indication

Technical Specifications

• Dahua LED Information Display for Parking Space Management
• Display area: 320 × 160 mm
• Displays text and symbols in red, green, and yellow
• 1R1PG pixel configuration
• Resolution of 512 dots (32 × 16) with a pixel pitch of 10 mm
• Capable of displaying 4 digits and 2 Chinese characters
• Brightness of 4,000 cd/m²
• Display lifespan of 100,000 hours

Functionalities

• Displays the number of available parking spaces
• Designed for parking lot entrances and exits at complexes, tourist attractions, and shopping centers
• Allows for testing via computer software to facilitate setup

Network

• 1 x 100 Mbps RJ45 Ethernet port for configuration

Power

• 100–220 V AC power supply
• Power consumption: 10 W

Environmental

• Suitable for outdoor use
• Operating temperature: -40 °C to +60 °C
• Operating humidity: 20%–80% RH, non-condensing
• Storage temperature: -40 °C to +60 °C
• Storage humidity: 5%–95% RH, non-condensing
• IP54 protection

Physical Characteristics

• Floor-mounted installation
• Dimensions: 400 × 200 × 90 mm
• Net weight: ≤2 kg
• Gross weight: ≤2.5 kg

Contents

• Dahua DAHUA-4684 Outdoor LED Display (DHI-IPMPGI-211AA-M)
