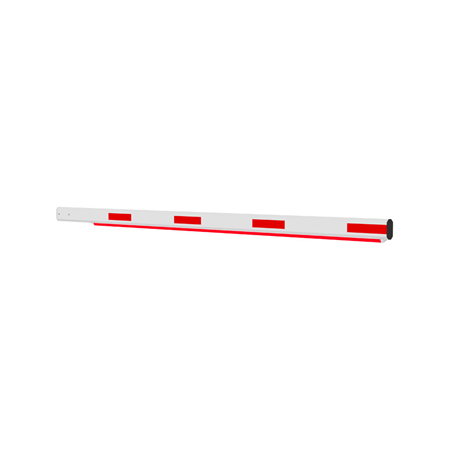

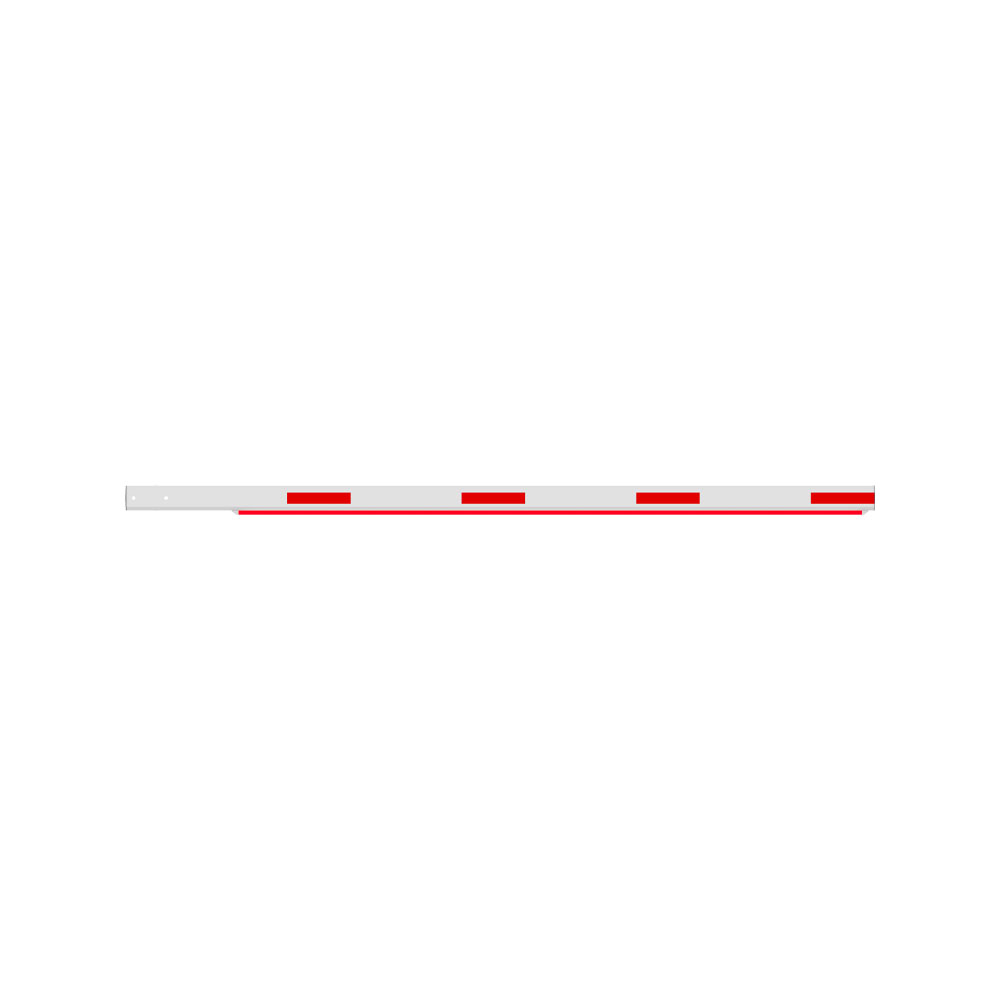

Dahua 5 m straight barrier arm with LED lighting for vehicle access

Technical Specifications

• Dahua 5-meter straight arm for vehicle barrier
• Compatible with DHI-IPMECD-2062 series barriers
• Can be installed on either side of the barrier

Functionalities

• LED light strip with red and green indicators
• Anti-collision elastic strip on the bottom

Environmental

• Operating temperature range: –40 °C to +70 °C
• Storage temperature: –40 °C to +70 °C
• Operating humidity: 10%–90% RH, non-condensing
• Storage humidity: 10%–90% RH, non-condensing
• Basic corrosion protection

Physical Characteristics

• Made of aluminum alloy with electrostatic spray coating for corrosion protection
• Red and white finish
• Installation at vehicle checkpoint
• Dimensions: 5,000 x 115 x 45 mm (L x W x H)
• Packaging dimensions: 5,100 x 150 x 100 mm (L x W x H)
• Net weight: 7 kg
• Gross weight: 7.4 kg

Contents

• 5-meter straight arm DAHUA-5382 (IPMECD-0262-M50-LED)
