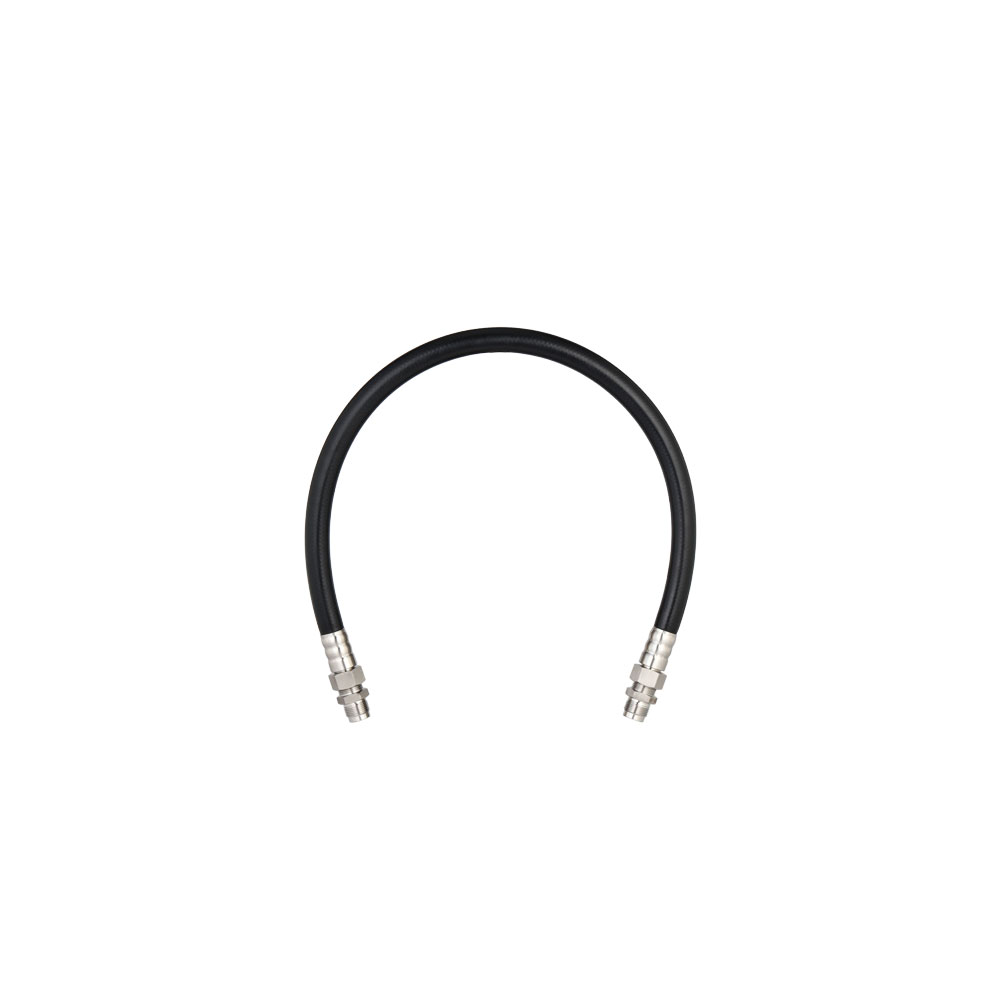

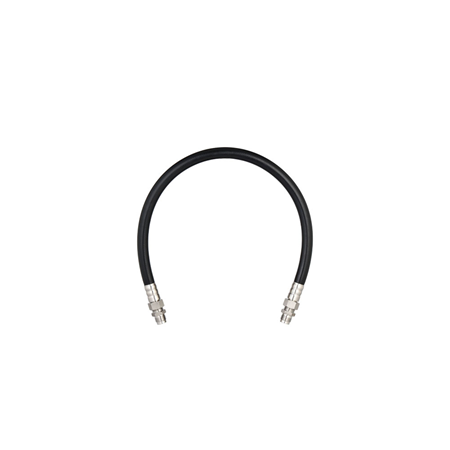

Dahua stainless steel flameproof stainless steel hose for ATEX installations

DAHUA-5137

ZANXG-1.0

Main features

Dahua explosion-proof flexible tube
Protects combined cables and pigtails
Made of 316L stainless steel
Length of 1000 mm
Thread G3/4
Suitable for environments with flammable and explosive gases or dust
ATEX and IECEx marking.

Specifications

Technical features

Dahua explosion-proof flexible conduit for protection of combination cables and pigtail cables
Accessory for explosion-proof products
G3/4 outlet thread
Suitable for environments with flammable gases, explosive gases or dust

Functionalities

Reinforced protection for combination cables and pigtails
Designed for integration with explosion-proof products

Environmental

Basic anti-corrosion level
Designed for general use in areas with no specific corrosion protection requirements

Physical characteristics

Made of SUS316L stainless steel
Product length of 1000 mm
Packaging dimensions: 580 x 290 x 320 mm
Net weight: 1.0 kg
Gross weight: 1.4 kg

Contents

Explosion-proof hose DAHUA-5137 (ZANXG-1.0)

Certifications and standards

Explosion-proof marking: II 2 G Ex eb IIC Gb, II 2 D Ex tb IIIC Db
DNV 21 ATEX 76311U
IECEx DNV 21.0002U

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
