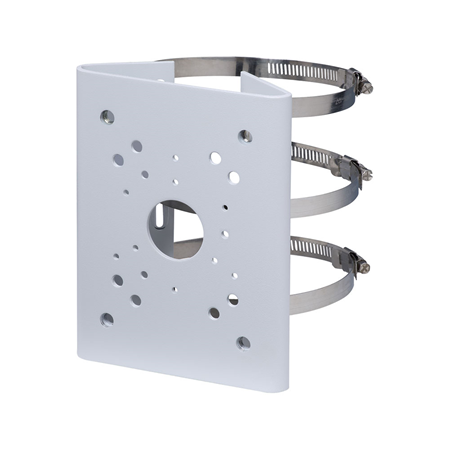

Pole mounting bracket

DAHUA-3N

DH-PFA150

Main features

Pole mounting bracket
Made of SECC and SUS304 stainless steel
Compatible with junction boxes, wall brackets, power boxes and more
Suitable for 80 to 150 mm diameter poles
Supports up to 7 kg load
Temperature resistant from -40 °C to +60 °C and relative humidity below 90%.

Specifications

Technical features

Pole mounting bracket
Material: SECC; SUS304 stainless steel fixing ring
White color
Pole diameter: 80~150 mm
Load capacity up to 7 kg

Environmental

Operating temperature: -40 °C ~ +60 °C
Operating humidity: < 90% (RH)
Corrosion level: basic protection

Physical characteristics

Net weight: 1.09 kg
Gross weight: 1.28 kg
Dimensions: 130.4 × 45.0 × 170.0 mm (1.4 × 45.0 × 170.0 mm)

Contents

DAHUA-3N pole mount bracket (DH-PFA150)
M6×14 screws (x3)
M8×25 screws (x4)
S5.0 wrench (x1)
S6.0 wrench (x1)
Metal rings 80~150 mm (x3)

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
