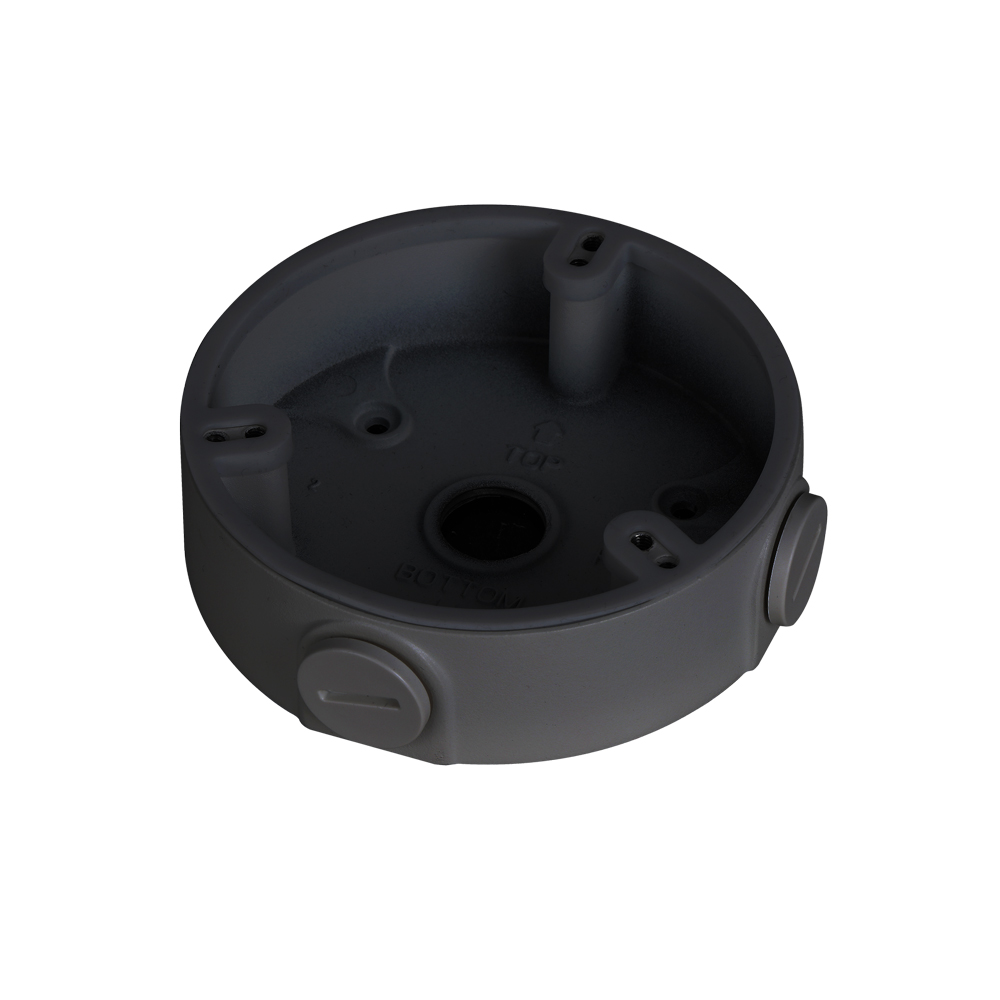

Junction box for Dahua cameras black color

DAHUA-560BN

DH-PFA136-B

View previous model

Tube base (black color) for DAHUA dome DAHUA-560B

Main features

Dahua junction box
Compact and elegant design
Bottom and side cable outlets
Ideal for wall mounting of Dahua cameras
Load capacity up to 1 kg
Black aluminum alloy
Basic anti-corrosion level.

Specifications

Technical features

Dahua junction box
Screw thread: G1/2
Maximum supported load: 1 kg
Junction box type installation

Environmental

Operating temperature: -40 °C to +60 °C
Operating humidity: <90% (RH)
Storage temperature: -40 °C to +60 °C
Storage humidity: 10%-90% (RH)
Corrosion level: basic protection

Physical characteristics

Aluminum alloy material
Black color
Dimensions: Φ114.8 mm × 32.0 mm
Net weight: 0.19 kg
Gross weight: 0.26 kg

Contents

Junction box DAHUA-560BN (DH-PFA136-B)
M4×10 screws (x3)
ST4×25 screws (x3)
Plastic plugs (x3)
S3.0 wrench (x1)
Watertight cable gland (x1)

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
