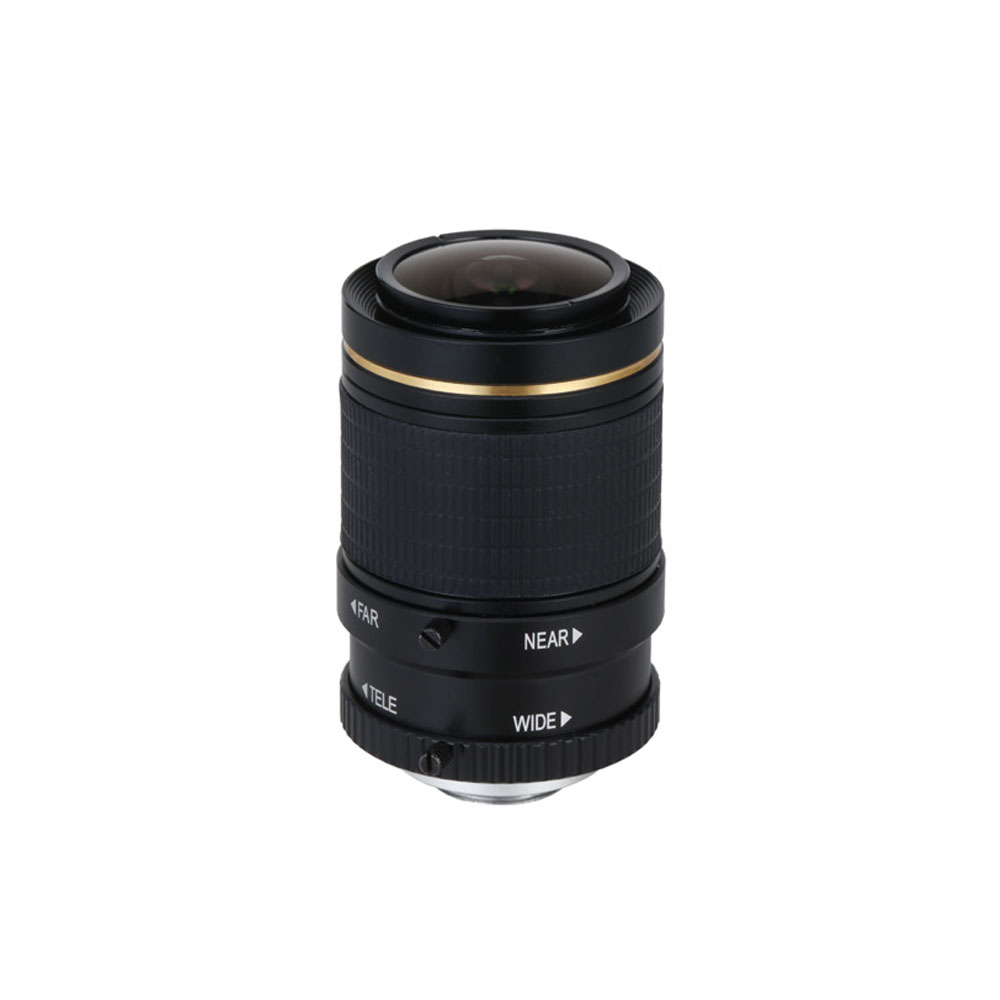

Dahua 12MP manual varifocal lens for 1/1.7" sensors with P-Iris

Technical Specifications

• Varifocal lens Dahua 12MP manual camera for 1/1.7" sensors
• Focal length of 3.7–16 mm and maximum aperture of F1.5
• Manual zoom and focus adjustment
• P-Iris and CS mount
• IR correction for day and night operation
• Main beam angle ranging from 11° (wide-angle) to 9° (telephoto)
• Total Lens e length of 95.35 mm
• Flange back focal length of 12.5 mm and mechanical back focal length of 7.45 mm
• Minimum object distance of 0.5 m

Functionalities

• Field of view with 1/1.7" sensor: 146°×109°×79° in wide-angle mode and 36°×29°×22° in telephoto mode
• Field of view with 1/1.8" sensor: 136°×114°×61° in wide-angle mode and 34°×30°×17° in telephoto mode
• Distortion from –28.8% to –2.5% with a 1/1.7" sensor
• Distortion from –27.1% to –2.3% with a 1/1.8" sensor

Environmental

• Operating and storage temperature: –30 °C to +70 °C
• Operating and storage humidity: 10% to 95% RH

Physical Specifications

• Black metal housing
• Dimensions: Ø54×87.35 mm
• Net weight: 0.27 kg
• Gross weight: 0.33 kg

Contents

• Varifocal lens Dahua DAHUA-5399 (DH-PLZ20C0-P-V2) manual

Certifications and Standards

• CE Marking
• RoHS compliance
• FCC Certification
