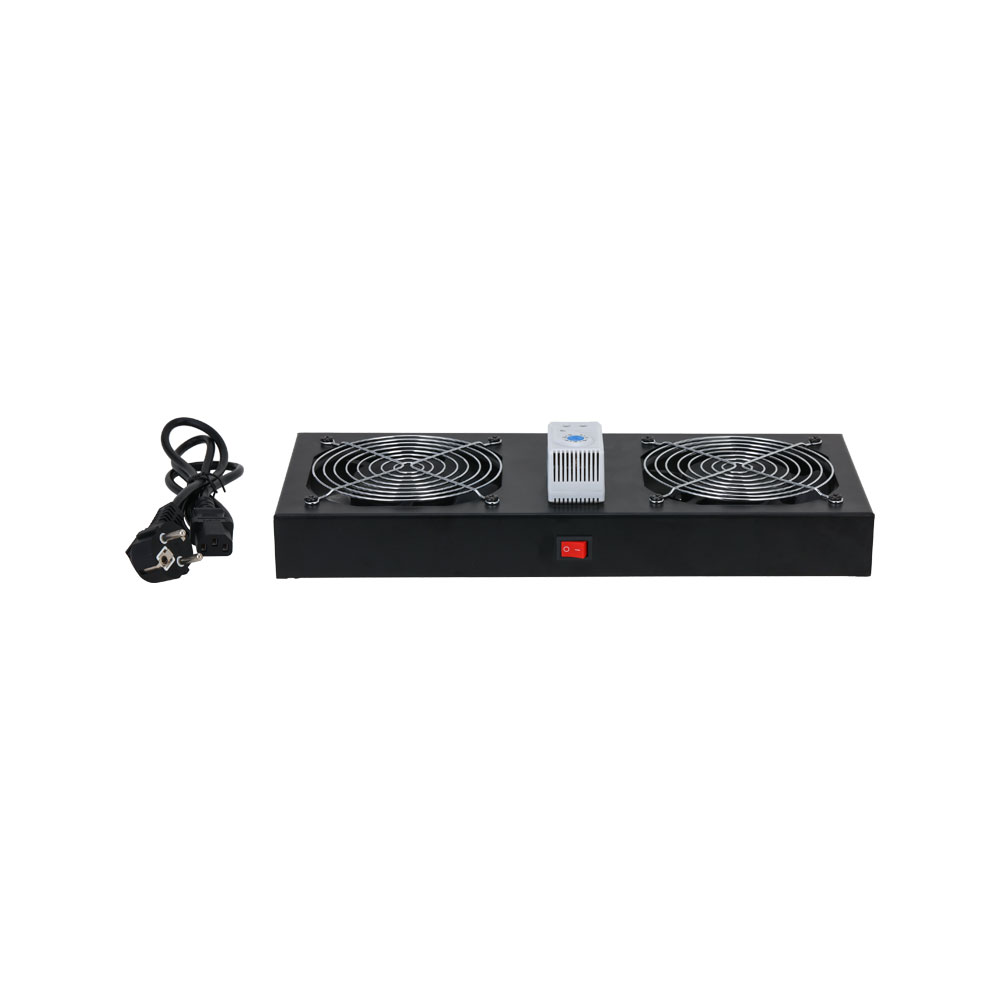

Dahua dual fan for 6/9/12U rack cabinets

Technical features

• Double fan for 6/9/12U rack cabinets
• Integrated design for easy installation
• Supports temperature adjustment
• Rotation speed of 2,200±10% RPM
• Air flow rate of 68 CFM
• Air pressure of 6.4 mmH2O
• Noise level of 45 dB(A)
• Lifetime of 30,000 hours at +25°C

Power supply

• 220 V supply voltage
• Frequency 50~60 Hz
• Power of 30 W

Environmental

• Operating temperature -10°C to +60°C (-10°C to +60°C)
• Operating humidity 20% to 80% RH non-condensing
• Storage temperature -10°C to +60°C (-10°C to +60°C)
• Storage Humidity 20% to 80% RH non-condensing

Physical characteristics

• 0.8 mm cold-rolled sheet metal case
• Color: black
• Dimensions: 346 x 155 x 76 mm
• Net weight 1.1 kg
• Gross weight 1.4 kg

Contents

• 1 Dahua CFT02 dual fan for rack cabinet
• 1 x 1.2 m European power cable
• 8 screws M4.6 x 10
