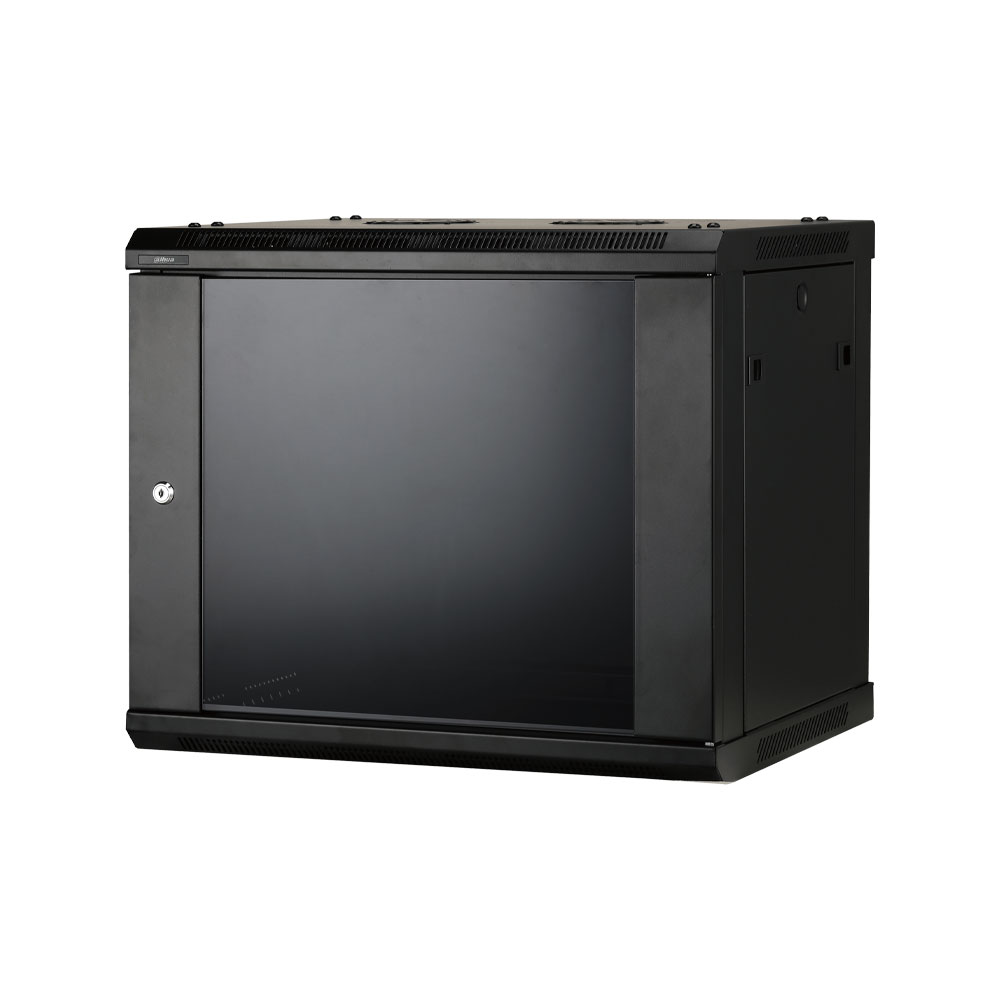

Dahua 19-inch 9U rack cabinet for wall and flat-surface mounting

Technical Specifications

• Dahua 19-inch, 9U rack cabinet
• Standard 19-inch format
• Depth: 450 mm
• Load capacity of 40 kg

Functionalities

• Removable side panel for easy installation and maintenance
• Cable entry at the top cover and bottom panel

Environmental

• Operating temperature: -40 °C to +60 °C
• Humidity below 90% RH

Physical Characteristics

• SPCC material
• Color: black
• Wall-mounted or surface-mounted
• Dimensions: 600 mm × 450 mm × 505 mm
• Weight: 15.6 kg

Contents

• Dahua 19-inch, 9U rack cabinet DAHUA-5375 (DH-PFC200D-9U4D)
• 1 wrench
• 2 door keys
• 10 M6 screws
