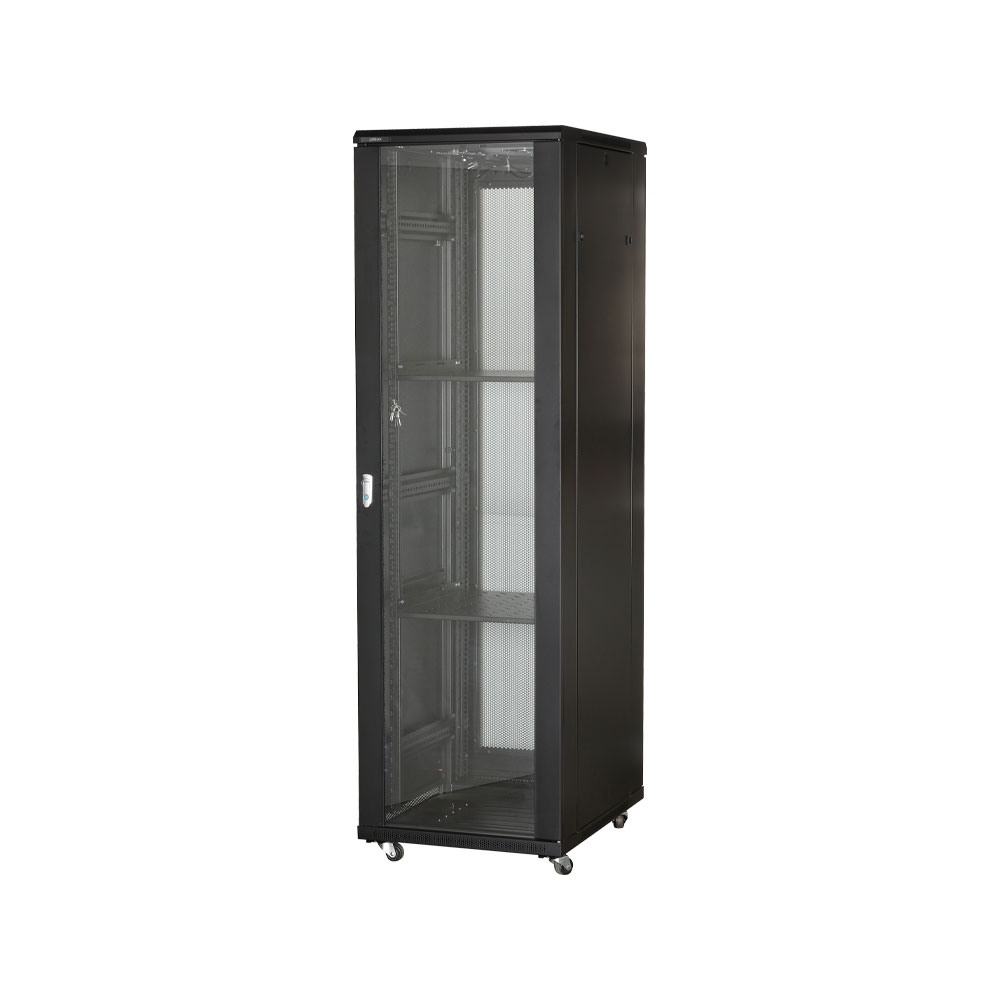

DAHUA-5379 | Dahua 19-inch 42U rack cabinet for flat-surface mounting
DAHUA-5379DH-PFC200D-42U8DDahua 19-inch 42U rack cabinet for flat-surface mounting

Dahua 19-inch 42U rack cabinet for flat-surface mounting

DAHUA-5379

DH-PFC200D-42U8D

Main features

  • Dahua 19-inch, 42U rack cabinet for CCTV installations
  • Standard 19-inch format
  • Load capacity of 300 kg
  • Depth of 800 mm
  • SPCC frame
  • Four sides open
  • Top and bottom cable entry
  • Flat-surface mounting
  • Black

Specifications

Technical Specifications

  • Dahua 19-inch, 42U rack cabinet
  • Standard 19-inch format
  • Depth: 800 mm
  • Load capacity of 300 kg

Functionalities

  • Four sides that open for easy installation and maintenance
  • Cable entry at the top cover and bottom panel

Environmental

  • Operating temperature: -40 °C to +60 °C
  • Humidity below 90% RH

Physical Characteristics

  • SPCC material
  • Color: black
  • Mounting on a flat surface
  • Dimensions: 600 mm × 800 mm × 2055 mm
  • Weight: 89 kg

Contents

  • Dahua 19-inch, 42U rack cabinet DAHUA-5379 (DH-PFC200D-42U8D)
  • 1 wrench
  • 4 door keys
  • 4 casters
  • 4 support brackets
  • 40 M6 screws
REFERENCE / MODEL DAHUA-5379 / DH-PFC200D-42U8D
Colour Black
Height 42U
Rack type Rack Cabinet
Depth 800 mm
Rack accessories Included, Keys and locks, Supports
