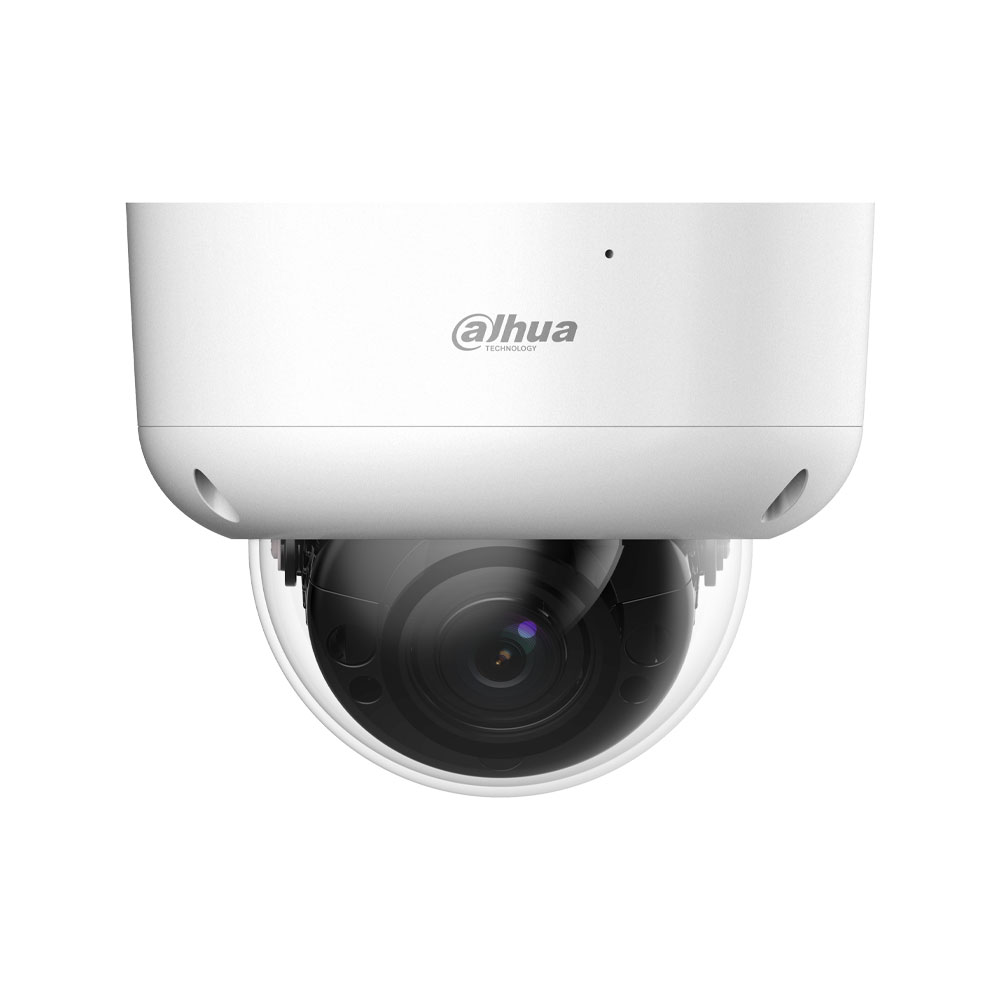

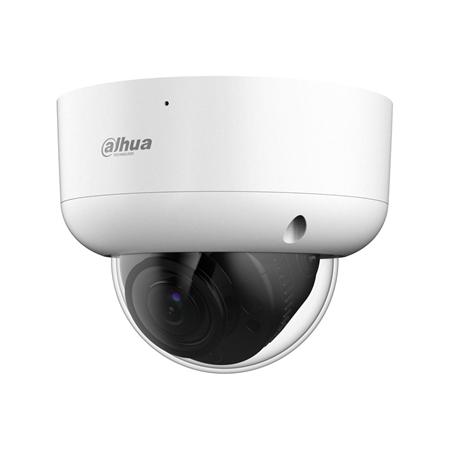

Dahua Lite 2MP motorized varifocal 4 in 1 dome

Technical features

• Dahua Lite 4-in-1 Dome
• 1/2.8" CMOS sensor
• Maximum resolution 1080P (1920×1080)
• Progressive scanning
• PAL electronic shutter from 1/25 sec. to 1/100,000 sec.
• NTSC electronic shutter from 1/30 sec. to 1/100,000 sec.
• Minimum illumination of 0.002 lux at F1.5, 30 IRE
• 0 lux with IR on
• Signal-to-noise ratio greater than 65 dB
• IR illumination up to 60 m
• Automatic illuminator control
• 3 IR LEDs
• Varifocal lens motorized from 2.7 mm to 12 mm
• Autofocus
• φ14 mount
• Maximum aperture F1.5
• Diagonal angle of view from 38° to 123°.
• Horizontal angle of view from 33° to 102° Horizontal angle of view from 33° to 102
• Vertical angle of view from 19° to 53°.
• Minimum focusing distance of 0.5 m
• DORI at 2.7 mm: 47.6 m detection, 19.0 m observation, 9.5 m recognition, 4.76 m identification
• DORI at 12 mm: 132.1 m detection, 52.9 m observation, 26.4 m recognition and 13.2 m identification.

Video

• Switchable CVI, TVI, AHD and CVBS output through BNC port
• CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
• AHD: 1080P@25 ips in PAL and 1080P@30 ips in NTSC
• TVI: 1080P@25 ips in PAL and 1080P@30 ips in NTSC
• CVBS: 960H
• 1080P (1920×1080) and 960H resolutions
• Auto Day/Night mode with ICR

Functionalities

• BLC, WDR and HLC
• 130 dB real WDR
• Auto and area white balance
• Auto and manual gain control
• 3D NR noise reduction
• Smart Illumination
• Super Adapt
• Mirror
• On/Off privacy mask with 8 rectangular areas

Audio

• Built-in 1-channel microphone
• Coaxial audio transmission

Communication interface

• 1 BNC port for switchable CVI, TVI, AHD and CVBS video output

Power supply

• 12V DC ±30% power supply
• Maximum power consumption 8 W with IR activated

Environmental

• Operating temperature -30 °C to +60 °C (-22 °F to +140 °F)
• Operating humidity less than 95 % non-condensing
• Storage temperature -30 °C to +60 °C (-22 °F to 140 °F)
• Storage humidity less than 95 % non-condensing
• IP67 protection
• Vandal protection IK10

Physical characteristics

• Metal housing
• 3AXIS with horizontal adjustment from 0° to 355°, vertical adjustment from 0° to 80° and rotation from 0° to 355°.
• Dimensions of φ126 mm × 100 mm
• Net weight 0.63 kg
• Gross weight 0.81 kg

Contents

• DAHUA-5163 Motorized Varifocal Mini Dome HDCVI Camera (DH-HAC-HDBW1231RAP-Z-A-2712)

Certifications and standards

• CE: EN55032:2015, EN 61000-3-2-2:2014, EN 61000-3-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017
• FCC: CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014
• UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
