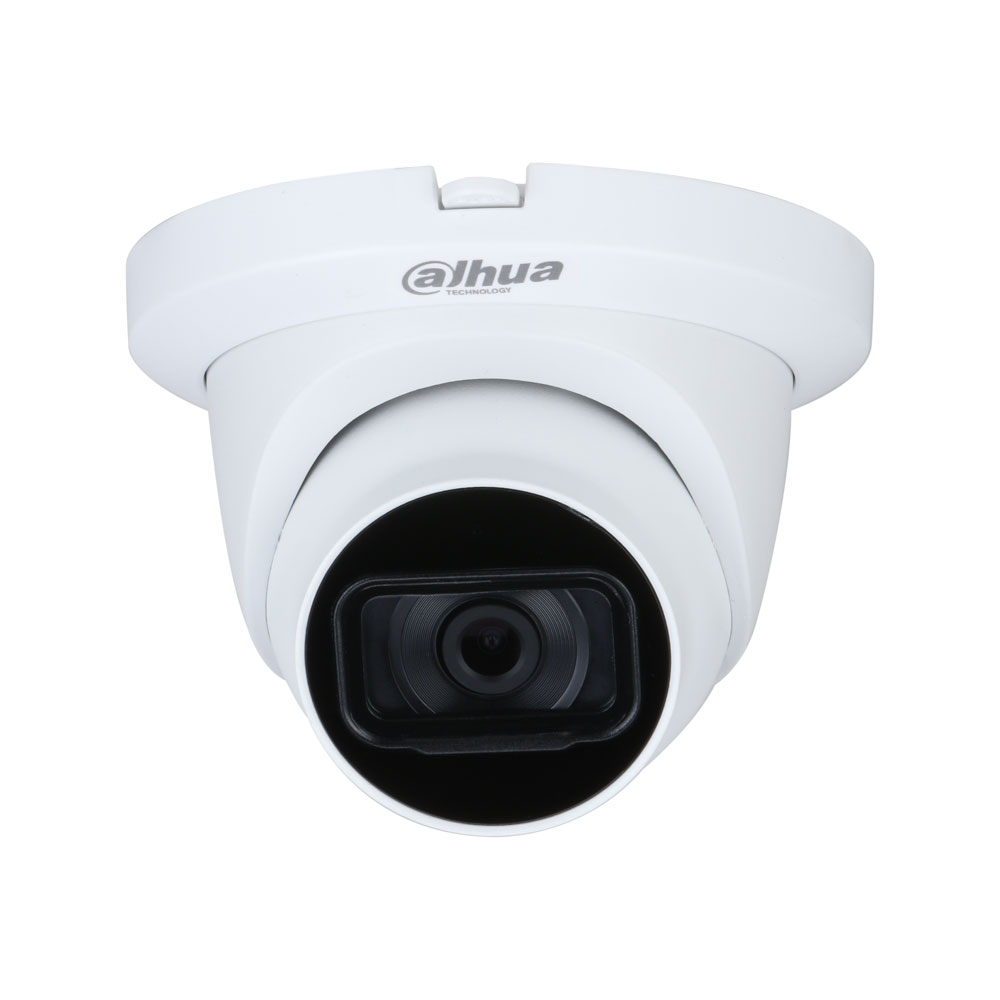

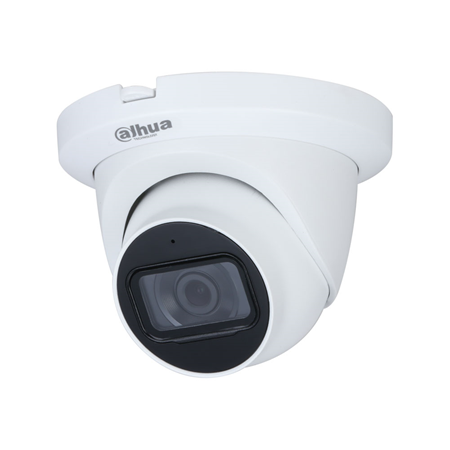

Dahua Lite 4-in-1 2MP dome with Starlight

Technical features

• Dahua Lite quick-to-install 4-in-1 dome
• 1/2.8" CMOS sensor
• Maximum resolution 1080P (1920×1080)
• Minimum illumination of 0.002 lux at F1.6, 30 IRE
• 0 lux with IR activated
• IR illumination up to 30 m
• Automatic and manual illuminator control
• 1 IR illuminator
• Fixed lens 2.8 mm illuminator
• M12 mount
• Maximum aperture F1.6
• Angle of view 107° horizontal, 56° vertical and 127° diagonal
• Minimum focusing distance of 0.7 m

Video

• CVI: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
• AHD: 1080P@25 fps in PAL and 1080P@30 fps in NTSC
• TVI: 1080P@25 ips in PAL and 1080P@30 ips in NTSC
• CVBS: 960H
• Resolutions 1080P (1920×1080) and 960H (960×576/960×480)
• Switchable CVI, TVI, AHD and CVBS video output via BNC port
• Automatic day/night switching via ICR

Functionalities

• BLC, WDR and HLC
• 130 dB real WDR
• Auto and area white balance
• Automatic and manual gain control
• 3D NR noise reduction
• Smart IR
• Super Adapt
• Mirror Off/On
• Off/On privacy mask with 8 rectangular areas
• Quick-to-install system to reduce installation time

Communication interface

• 1 BNC port for CVI, TVI, AHD and CVBS video output

Power supply

• 12V DC ±30% power supply
• Maximum power consumption of 3.1 W with IR on

Environmental

• Operating temperature -40 °C to +60 °C (-40 °C to +60 °C)
• Storage temperature -40°C to +60°C (-40°F to +60°F)
• Operating humidity below 95 % non-condensing
• Storage humidity less than 95 % non-condensing
• Degree of protection IP67

Physical characteristics

• Housing with metal dome, metal cover and plastic decorative ring
• 3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 78° and rotation from 0° to 360°.
• Dimensions Φ109.9 mm × 88.1 mm
• Net weight 0.28 kg
• Gross weight 0.45 kg

Contents

• DAHUA-5166 4-in-1 quick-to-install dome (DH-HAC-HDW1231TLMQP-0280B)

Certifications and standards

• CE: EN55032, EN55024, EN50130-4
• FCC: CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014
• UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
